Understanding the intricacies of extension cord wiring is crucial for anyone looking to ensure safe and efficient electrical connections. Whether you're a DIY enthusiast or a professional electrician, knowing how to properly wire an extension cord can prevent electrical hazards and ensure the longevity of your equipment. This guide will walk you through the essential steps and considerations for extension cord wiring, from selecting the right materials to completing the wiring process.
Understanding Extension Cords
Extension cords are versatile tools that allow you to extend the reach of electrical outlets. They come in various lengths, gauges, and types, each suited for different applications. Before diving into the wiring process, it's important to understand the basics of extension cords.
Types of Extension Cords
Extension cords can be categorized based on their intended use and the environment in which they will be used. The most common types include:
- Indoor Extension Cords: Designed for use in dry, indoor environments. These cords typically have a lower gauge and are less durable than outdoor cords.
- Outdoor Extension Cords: Built to withstand outdoor conditions, including moisture and temperature fluctuations. These cords are usually heavier and have a higher gauge.
- Heavy-Duty Extension Cords: Suitable for high-power tools and appliances. These cords have a thicker gauge and are designed to handle higher currents.

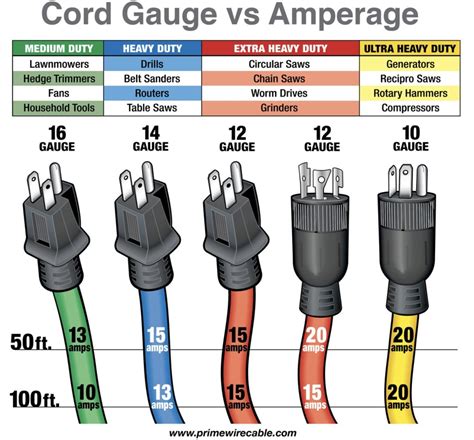

Gauge and Length
The gauge of an extension cord refers to the thickness of the wire. A lower gauge number indicates a thicker wire, which can handle more current. The length of the cord also plays a crucial role in determining its suitability for a particular task. Longer cords can result in voltage drop, so it's essential to choose the appropriate length for your needs.
Materials Needed for Extension Cord Wiring
Before you begin extension cord wiring, gather the necessary materials and tools. Here's a list of what you'll need:
- Extension cord (with the appropriate gauge and length)
- Wire strippers
- Pliers
- Screwdriver
- Electrical tape
- Wire nuts
- Safety glasses
Step-by-Step Guide to Extension Cord Wiring
Wiring an extension cord involves several steps, each of which must be performed carefully to ensure safety and functionality. Follow this guide to complete the process successfully.
Step 1: Prepare the Cord
Begin by cutting the extension cord to the desired length. Use wire strippers to carefully remove about 1 inch of the outer insulation from both ends of the cord. Be cautious not to damage the inner wires.
🛑 Note: Always ensure the power is turned off before working with electrical cords.

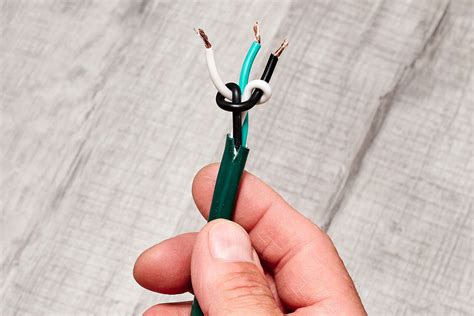

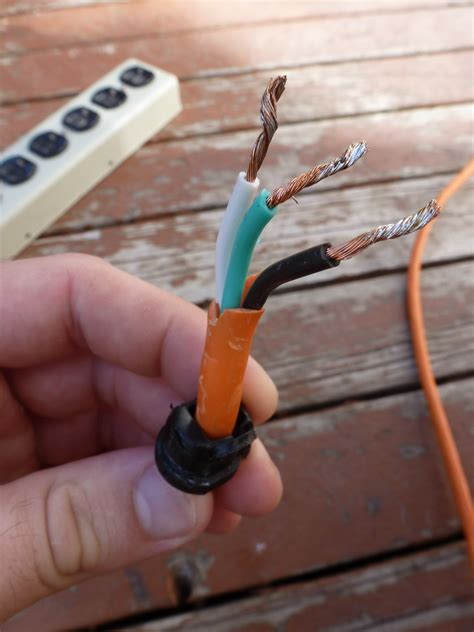

Step 2: Strip the Inner Wires
After removing the outer insulation, you will see the inner wires. Typically, there are three wires: a black (hot) wire, a white (neutral) wire, and a green or bare (ground) wire. Use wire strippers to remove about ½ inch of insulation from each of these wires.
Step 3: Connect the Wires
Twist the corresponding wires from each end of the cord together. The black wires should be connected to each other, the white wires to each other, and the green or bare wires to each other. Use wire nuts to secure the connections tightly. Ensure that the connections are snug and that there are no loose wires.
Step 4: Secure the Connections
Wrap electrical tape around the wire nuts to provide an additional layer of insulation and protection. This step is crucial to prevent short circuits and ensure the safety of the cord.
Step 5: Test the Cord
Before using the extension cord, test it to ensure that the wiring is correct and that the cord is functioning properly. Plug in a small appliance or device and check if it powers on. If the device does not work, double-check the wiring and connections.
🛑 Note: Always test the cord in a safe environment to avoid any potential hazards.
Safety Considerations for Extension Cord Wiring
Safety is paramount when working with electrical cords. Here are some important safety considerations to keep in mind:
- Turn Off Power: Always ensure that the power is turned off before working with electrical cords.
- Use Proper Tools: Use insulated tools designed for electrical work to minimize the risk of electric shock.
- Avoid Overloading: Do not overload the extension cord with too many devices or appliances. Check the cord's rating to ensure it can handle the load.
- Inspect Regularly: Regularly inspect the cord for any signs of damage, such as frayed wires or cracks in the insulation. Replace the cord if any damage is found.
Common Mistakes to Avoid
When performing extension cord wiring, it's easy to make mistakes that can compromise the safety and functionality of the cord. Here are some common mistakes to avoid:
- Incorrect Wire Gauge: Using a wire gauge that is too thin for the intended load can cause overheating and potential fires.
- Poor Connections: Loose or poorly secured connections can lead to intermittent power supply and potential hazards.
- Inadequate Insulation: Insufficient insulation can expose live wires, increasing the risk of electric shock.
- Ignoring Safety Precautions: Failing to follow safety guidelines can result in serious injuries or property damage.
Troubleshooting Extension Cord Issues
Even with careful wiring, issues can arise with extension cords. Here are some common problems and their solutions:
No Power
If the extension cord is not providing power, check the following:
- Ensure the cord is properly plugged into the outlet and the device.
- Inspect the wiring for any loose connections or damaged wires.
- Test the cord with a different device to rule out device-specific issues.
Intermittent Power
If the power supply is intermittent, it may be due to:
- Loose connections at the plug or outlet.
- Damaged wires within the cord.
- Overloading the cord with too many devices.
Overheating
If the extension cord is overheating, it could be due to:
- Using a cord with an inadequate gauge for the load.
- Overloading the cord with too many devices.
- Damaged insulation allowing wires to touch.
🛑 Note: If the cord is overheating, unplug it immediately and inspect for any signs of damage.
Maintenance Tips for Extension Cords
Proper maintenance can extend the lifespan of your extension cord and ensure its safe operation. Here are some tips for maintaining your extension cord:
- Store Properly: When not in use, store the cord in a cool, dry place away from direct sunlight and heat sources.
- Avoid Kinks and Twists: Kinks and twists can damage the wires inside the cord. Coil the cord loosely when storing.
- Inspect Regularly: Regularly inspect the cord for any signs of damage, such as frayed wires or cracks in the insulation.
- Clean the Plugs: Keep the plugs clean and free of debris to ensure a good connection.
By following these maintenance tips, you can ensure that your extension cord remains in good condition and continues to function safely and efficiently.
Conclusion
Extension cord wiring is a crucial skill for anyone dealing with electrical connections. By understanding the types of extension cords, gathering the right materials, and following the step-by-step wiring process, you can ensure safe and efficient electrical connections. Always prioritize safety by turning off the power, using proper tools, and inspecting the cord regularly. With proper maintenance and troubleshooting, your extension cord will serve you well for years to come.
