Excavation and lateral support are critical components in construction and civil engineering projects. These processes ensure the stability and safety of excavations, preventing soil collapse and protecting nearby structures. Understanding the principles and techniques involved in excavation and lateral support is essential for engineers, contractors, and project managers.
Understanding Excavation
Excavation involves the removal of soil, rock, or other materials from a site to create a cavity or depression. This process is fundamental in various construction activities, including building foundations, underground utilities, and road construction. The type of excavation can vary based on the project requirements and soil conditions.
There are several types of excavation, each serving different purposes:
- Topsoil Excavation: Removing the top layer of soil to expose the subsoil.
- Rock Excavation: Breaking and removing rock formations using specialized equipment.
- Earth Excavation: Removing soil to create foundations, basements, or other structures.
- Muck Excavation: Removing soil that contains a high percentage of organic matter.
- Unclassified Excavation: Removing any type of material not classified under the above categories.
Importance of Lateral Support
Lateral support, also known as shoring, is crucial for maintaining the stability of excavation walls. Without proper lateral support, the soil can collapse, leading to severe injuries, property damage, and project delays. Lateral support systems are designed to counteract the lateral earth pressure exerted by the surrounding soil.
There are several methods of providing lateral support during excavation:
- Sheet Piling: Driving interlocking steel sheets into the ground to form a continuous wall.

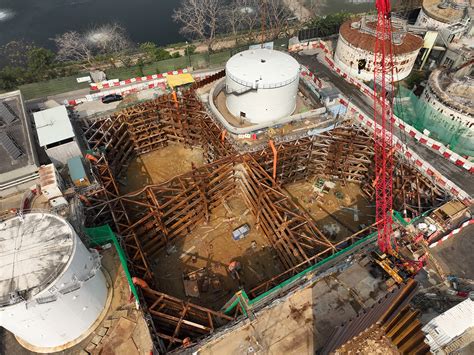

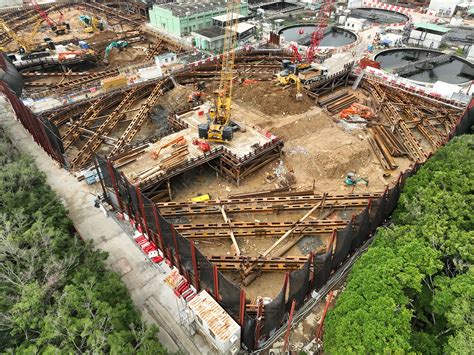

- Braced Excavation: Using horizontal supports (braces) to stabilize the excavation walls.
- Soil Nailing: Installing steel bars into the soil and grouting them to create a reinforced soil mass.
- Anchored Earth Retention: Using anchors to stabilize the excavation walls by transferring the lateral earth pressure to stable soil or rock.

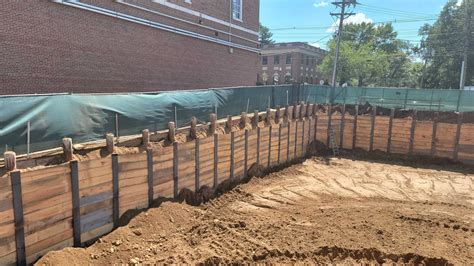

- Temporary Shoring: Using temporary structures to support the excavation walls during construction.
Design Considerations for Excavation and Lateral Support
Designing an effective excavation and lateral support system requires careful consideration of various factors. Engineers must assess the soil conditions, water table levels, and adjacent structures to determine the appropriate support methods. Key design considerations include:
- Soil Properties: Understanding the soil's strength, cohesion, and friction angle is crucial for designing lateral support systems.
- Water Table: The presence of groundwater can significantly affect the stability of excavation walls. Dewatering techniques may be necessary to lower the water table.
- Adjacent Structures: Proximity to buildings, roads, and utilities requires careful planning to prevent damage from excavation activities.
- Excavation Depth: The depth of the excavation influences the type and extent of lateral support needed.
- Safety Factors: Incorporating safety factors ensures that the support system can withstand unexpected loads and soil movements.
Designing excavation and lateral support systems involves several steps:
- Site Investigation: Conducting geotechnical surveys to gather data on soil properties and groundwater conditions.
- Analyzing Soil Stability: Using software tools and analytical methods to assess the stability of excavation walls.
- Selecting Support Methods: Choosing the appropriate lateral support techniques based on site conditions and project requirements.
- Designing Support Systems: Developing detailed designs for the selected support methods, including dimensions, materials, and installation procedures.
- Monitoring and Maintenance: Implementing monitoring systems to detect any movements or failures in the support structures and performing regular maintenance.
🔍 Note: Regular inspections and monitoring are essential to ensure the integrity of the excavation and lateral support systems throughout the project.
Common Challenges in Excavation and Lateral Support
Excavation and lateral support projects often face various challenges that can impact the project's timeline and budget. Some common challenges include:
- Unforeseen Soil Conditions: Encountering unexpected soil types or properties can require adjustments to the support system design.
- Groundwater Issues: High water table levels or unexpected groundwater inflows can destabilize excavation walls and require additional dewatering measures.
- Adjacent Structures: Proximity to existing buildings, roads, or utilities can limit the available space for excavation and support systems.
- Weather Conditions: Adverse weather conditions, such as heavy rainfall or extreme temperatures, can affect soil stability and excavation activities.
- Equipment Limitations: Inadequate or malfunctioning equipment can delay excavation and support installation processes.
Addressing these challenges requires proactive planning, flexible design approaches, and effective communication among project stakeholders. Regular site inspections and monitoring can help identify potential issues early, allowing for timely interventions.
Case Studies in Excavation and Lateral Support
Examining real-world case studies provides valuable insights into the practical application of excavation and lateral support techniques. Here are two notable examples:
Case Study 1: Deep Excavation for a Basement
In a high-rise building project, a deep excavation was required to create a multi-level basement. The site was located in an urban area with adjacent buildings and utilities. The excavation depth reached 20 meters, and the soil consisted of clay and sand layers with a high water table.
The project team employed a combination of sheet piling and braced excavation to stabilize the walls. Sheet piles were driven to a depth of 25 meters to ensure adequate penetration into stable soil layers. Horizontal braces were installed at intervals to provide lateral support. Additionally, a dewatering system was implemented to lower the water table and prevent groundwater inflows.
The excavation and lateral support system successfully maintained the stability of the walls throughout the construction process. Regular monitoring and inspections ensured that any movements or issues were promptly addressed.
Case Study 2: Soil Nailing for a Slope Stabilization
A residential development project required the stabilization of a steep slope to create buildable land. The slope consisted of weathered rock and soil with varying cohesion and friction properties. The project team opted for soil nailing as the primary support method.
Soil nails were installed at regular intervals along the slope, and a shotcrete layer was applied to the surface to provide additional reinforcement. The soil nailing system effectively stabilized the slope, allowing for safe excavation and construction activities.
Regular inspections and monitoring ensured the integrity of the soil nailing system throughout the project. The successful implementation of soil nailing demonstrated its effectiveness in stabilizing slopes and creating buildable land.
Future Trends in Excavation and Lateral Support
The field of excavation and lateral support is continually evolving, driven by advancements in technology and materials. Some emerging trends include:
- Advanced Geotechnical Software: Sophisticated software tools enable more accurate analysis and design of excavation and support systems.
- Innovative Materials: New materials, such as high-strength composites and geosynthetics, offer improved performance and durability for support structures.
- Automated Monitoring Systems: Real-time monitoring systems use sensors and data analytics to detect movements and failures in support structures, enhancing safety and efficiency.
- Sustainable Practices: Emphasis on environmentally friendly excavation and support methods, including the use of recycled materials and energy-efficient equipment.
- Integrated Design Approaches: Combining geotechnical engineering with structural engineering and construction management to optimize excavation and support designs.
These trends reflect the ongoing efforts to improve the safety, efficiency, and sustainability of excavation and lateral support projects. As technology advances, the industry will continue to adopt innovative solutions to address the challenges of excavation and support.
Excavation and lateral support are fundamental aspects of construction and civil engineering projects. Understanding the principles, techniques, and challenges involved in these processes is essential for ensuring the stability and safety of excavations. By leveraging advanced technologies and sustainable practices, the industry can continue to enhance the efficiency and effectiveness of excavation and lateral support systems.
