Examples Of Pulleys

Pulleys are simple machines that have been used for centuries to make work easier. They consist of a wheel with a groove around its edge, through which a rope or cable is threaded. By changing the direction of the force applied, pulleys allow users to lift heavy objects with less effort. This blog post will delve into the various types of pulleys, their mechanisms, and practical examples of pulleys in everyday life.

Understanding the Basics of Pulleys

Before exploring the different types of pulleys, it's essential to understand the basic principles behind their operation. Pulleys work by changing the direction of a force, making it easier to lift or move heavy objects. The mechanical advantage of a pulley system depends on the number of ropes supporting the load. For instance, a single fixed pulley changes the direction of the force but does not provide any mechanical advantage. However, a system of multiple pulleys can significantly reduce the amount of force required to lift a heavy object.

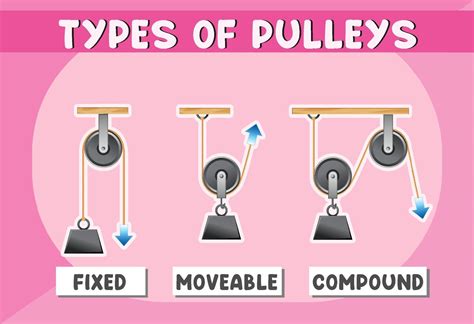

Types of Pulleys

Pulleys can be categorized into several types based on their design and function. The most common types include fixed pulleys, movable pulleys, and compound pulleys.

Fixed Pulleys

A fixed pulley is attached to a stationary point, such as a ceiling or a wall. The rope or cable is threaded through the pulley, and one end is attached to the load. When force is applied to the other end of the rope, the pulley changes the direction of the force, making it easier to lift the load. Fixed pulleys are commonly used in flagpoles, window blinds, and curtain rods.

Movable Pulleys

A movable pulley, also known as a block and tackle, is not fixed to a stationary point. Instead, it moves with the load as it is lifted. The rope or cable is threaded through the pulley, and one end is attached to a fixed point. When force is applied to the other end of the rope, the pulley moves with the load, providing a mechanical advantage. Movable pulleys are often used in construction sites, cranes, and elevators.

Compound Pulleys

A compound pulley system combines both fixed and movable pulleys to provide a greater mechanical advantage. This system consists of multiple pulleys arranged in a way that the rope or cable is threaded through each pulley, creating a complex network of ropes and pulleys. Compound pulleys are commonly used in heavy machinery, such as cranes and hoists, where a significant amount of force is required to lift heavy objects.

Examples Of Pulleys in Everyday Life

Pulleys are ubiquitous in our daily lives, often going unnoticed due to their simplicity and efficiency. Here are some common examples of pulleys in everyday life:

Elevators

Elevators use a complex system of pulleys and counterweights to move people and goods between floors in buildings. The pulley system allows the elevator to move smoothly and efficiently, reducing the amount of energy required to lift heavy loads.

Cranes

Cranes are essential in construction sites for lifting and moving heavy materials. They use a combination of fixed and movable pulleys to provide the necessary mechanical advantage to lift heavy objects. The pulley system in cranes allows for precise control and movement of the load.

Flagpoles

Flagpoles use a simple fixed pulley system to raise and lower the flag. The rope is threaded through the pulley at the top of the pole, and one end is attached to the flag. When force is applied to the other end of the rope, the pulley changes the direction of the force, making it easier to raise the flag.

Window Blinds

Window blinds use a fixed pulley system to raise and lower the blinds. The rope is threaded through the pulley at the top of the window, and one end is attached to the blinds. When force is applied to the other end of the rope, the pulley changes the direction of the force, making it easier to raise or lower the blinds.

Curtain Rods

Curtain rods use a fixed pulley system to open and close the curtains. The rope is threaded through the pulley at the end of the curtain rod, and one end is attached to the curtain. When force is applied to the other end of the rope, the pulley changes the direction of the force, making it easier to open or close the curtains.

Exercise Equipment

Many exercise machines, such as rowing machines and weightlifting equipment, use pulley systems to provide resistance and simulate real-world movements. The pulley system allows for smooth and controlled movements, reducing the risk of injury and enhancing the effectiveness of the workout.

Theatrical Rigging

In theaters, pulleys are used to raise and lower scenery, lights, and other stage elements. The pulley system allows for precise control and movement of the stage elements, creating a seamless and immersive experience for the audience.

Boat Sails

Boats use pulleys to raise and lower sails, as well as to adjust the angle of the sails to catch the wind. The pulley system allows for efficient and controlled movement of the sails, making it easier to navigate the boat.

Garage Doors

Garage doors use a pulley system to lift and lower the door. The pulley system is connected to a motor, which provides the force needed to lift the heavy door. The pulley system allows for smooth and controlled movement of the door, reducing the risk of injury and enhancing the convenience of using the garage.

Mechanical Advantage of Pulleys

The mechanical advantage of a pulley system is determined by the number of ropes supporting the load. The more ropes supporting the load, the greater the mechanical advantage. For example, a single fixed pulley has a mechanical advantage of 1, meaning it does not provide any mechanical advantage. However, a system of multiple pulleys can provide a mechanical advantage of 2, 3, or more, depending on the number of ropes supporting the load.

Here is a table illustrating the mechanical advantage of different pulley systems:

Pulley System	Mechanical Advantage
Single Fixed Pulley	1
Single Movable Pulley	2
Two Movable Pulleys	4
Three Movable Pulleys	6

It's important to note that while a pulley system can provide a significant mechanical advantage, it also requires a longer rope or cable to achieve the same amount of movement. For example, a system of three movable pulleys requires three times the length of rope to lift the load the same distance as a single fixed pulley.

💡 Note: The mechanical advantage of a pulley system is not always equal to the number of ropes supporting the load. In some cases, friction and other factors can reduce the mechanical advantage of the system.

Applications of Pulleys in Industry

Pulleys are widely used in various industries due to their ability to lift and move heavy objects with ease. Some of the key applications of pulleys in industry include:

Construction

In the construction industry, pulleys are used in cranes and hoists to lift and move heavy materials such as steel beams, concrete blocks, and machinery. The pulley system allows for precise control and movement of the load, reducing the risk of accidents and enhancing the efficiency of the construction process.

Manufacturing

In manufacturing, pulleys are used in conveyor systems to move products along assembly lines. The pulley system allows for smooth and continuous movement of the products, reducing the risk of damage and enhancing the efficiency of the manufacturing process.

Mining

In mining, pulleys are used to lift and move heavy equipment and materials from underground mines. The pulley system allows for efficient and controlled movement of the equipment and materials, reducing the risk of accidents and enhancing the productivity of the mining operation.

Agriculture

In agriculture, pulleys are used in irrigation systems to lift and move water from one location to another. The pulley system allows for efficient and controlled movement of the water, reducing the risk of water wastage and enhancing the productivity of the agricultural operation.

Automotive

In the automotive industry, pulleys are used in engine systems to drive various components such as the alternator, power steering pump, and air conditioning compressor. The pulley system allows for efficient and controlled movement of the components, reducing the risk of wear and tear and enhancing the performance of the vehicle.

Safety Considerations When Using Pulleys

While pulleys are simple and efficient machines, it's important to follow safety guidelines when using them to prevent accidents and injuries. Here are some safety considerations to keep in mind:

Always inspect the pulley system before use to ensure that it is in good condition and free from defects.
Use the appropriate type and size of rope or cable for the load being lifted.
Ensure that the pulley system is properly secured and supported to prevent it from moving or falling during use.
Avoid overloading the pulley system beyond its rated capacity.
Wear appropriate personal protective equipment, such as gloves and safety glasses, when using pulleys.
Follow the manufacturer's instructions and guidelines for using the pulley system.

🛑 Note: Never stand directly under a load being lifted by a pulley system. Always position yourself to the side to avoid being struck by the load if it falls.

Pulleys are versatile and essential tools that have been used for centuries to make work easier. From simple fixed pulleys used in flagpoles and window blinds to complex compound pulley systems used in cranes and hoists, pulleys play a crucial role in various industries and everyday life. Understanding the different types of pulleys, their mechanisms, and practical examples of pulleys can help appreciate their importance and efficiency in lifting and moving heavy objects.
