Euler Bernoulli Beam Theory

Understanding the behavior of beams under various loads is crucial in civil engineering and structural analysis. One of the foundational theories used to analyze beams is the Euler Bernoulli Beam Theory. This theory provides a simplified yet effective model for predicting the deflection and stress in beams, making it an essential tool for engineers and researchers alike.

Introduction to Euler Bernoulli Beam Theory

The Euler Bernoulli Beam Theory is named after Leonhard Euler and Daniel Bernoulli, who developed the mathematical framework for analyzing the deflection of beams. This theory assumes that the beam is slender and that the deflection is small compared to the length of the beam. It also assumes that plane sections remain plane and perpendicular to the neutral axis during bending.

Key assumptions of the Euler Bernoulli Beam Theory include:

• The beam is initially straight and unstressed.
• The beam is homogeneous and isotropic.
• The beam's cross-section is symmetric about the neutral axis.
• The deflection of the beam is small compared to its length.
• Shear deformation is negligible.

Basic Equations of Euler Bernoulli Beam Theory

The fundamental equation governing the deflection of a beam according to the Euler Bernoulli Beam Theory is derived from the moment-curvature relationship. The differential equation for the deflection y(x) of a beam is given by:

📝 Note: The following equation assumes a beam with a constant cross-sectional area and moment of inertia.

[ EI frac{d^2y}{dx^2} = M(x) ]

where:

• E is the modulus of elasticity (Young's modulus).
• I is the moment of inertia of the beam's cross-section about the neutral axis.
• y(x) is the deflection of the beam at position x .
• M(x) is the bending moment at position x .

For a simply supported beam with a uniform load w per unit length, the bending moment M(x) can be expressed as:

[ M(x) = frac{wLx}{2} - frac{wx^2}{2} ]

where L is the length of the beam.

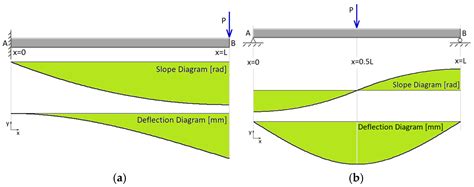

Solving the Differential Equation

To find the deflection y(x) , we need to solve the differential equation. For a simply supported beam with a uniform load, the solution involves integrating the differential equation twice and applying the boundary conditions.

The general solution for the deflection y(x) is:

[ y(x) = frac{w}{24EI} (x^4 - 2Lx^3 + L^3x) ]

where the boundary conditions are:

• y(0) = 0 (deflection at the left support is zero).
• y(L) = 0 (deflection at the right support is zero).
• frac{d^2y}{dx^2}(0) = 0 (slope at the left support is zero).
• frac{d^2y}{dx^2}(L) = 0 (slope at the right support is zero).

Applications of Euler Bernoulli Beam Theory

The Euler Bernoulli Beam Theory has wide-ranging applications in various fields of engineering and science. Some of the key applications include:

• Civil Engineering: Design and analysis of bridges, buildings, and other structures.
• Mechanical Engineering: Analysis of machine components, such as shafts and beams.
• Aerospace Engineering: Design of aircraft wings and other structural components.
• Biomedical Engineering: Modeling of biological structures, such as bones and tissues.

Limitations of Euler Bernoulli Beam Theory

While the Euler Bernoulli Beam Theory is a powerful tool, it has certain limitations that must be considered:

• Shear Deformation: The theory neglects shear deformation, which can be significant in short, thick beams.
• Large Deflections: The theory is not valid for large deflections where the assumption of small deflections breaks down.
• Non-Uniform Cross-Sections: The theory assumes a constant cross-sectional area and moment of inertia, which may not be the case in all practical scenarios.
• Material Nonlinearity: The theory assumes linear elastic behavior, which may not hold for materials that exhibit nonlinear behavior.

For cases where these limitations are significant, more advanced theories such as the Timoshenko Beam Theory or finite element analysis may be required.

Comparing Euler Bernoulli Beam Theory with Timoshenko Beam Theory

The Euler Bernoulli Beam Theory and the Timoshenko Beam Theory are both used to analyze the behavior of beams, but they have different assumptions and applications. Here is a comparison of the two theories:

While the Euler Bernoulli Beam Theory is simpler and easier to apply, the Timoshenko Beam Theory provides a more accurate model for beams with significant shear deformation and larger deflections.

Conclusion

The Euler Bernoulli Beam Theory remains a cornerstone in the field of structural analysis, providing a straightforward and effective method for predicting the deflection and stress in beams. Its assumptions and limitations must be carefully considered, and for more complex scenarios, advanced theories or numerical methods may be necessary. Understanding the principles of Euler Bernoulli Beam Theory is essential for engineers and researchers working in various fields, from civil and mechanical engineering to aerospace and biomedical applications. By mastering this theory, professionals can design and analyze structures with greater accuracy and confidence.
