Understanding the structure of molecules is fundamental in chemistry, and one of the most intriguing molecules to study is ethanol. Ethanol, with the chemical formula C2H5OH, is a simple alcohol that plays a crucial role in various industries, from beverages to fuel. To grasp its properties and reactions, it's essential to delve into its ethanol Lewis structure. This structure provides a visual representation of how atoms are bonded within the molecule, helping us understand its chemical behavior.
What is the Ethanol Lewis Structure?
The ethanol Lewis structure is a diagram that shows the arrangement of valence electrons in an ethanol molecule. It helps chemists visualize the bonding between atoms and predict the molecule’s properties. Ethanol consists of two carbon atoms, six hydrogen atoms, and one oxygen atom. The Lewis structure illustrates how these atoms are connected through covalent bonds.
Steps to Draw the Ethanol Lewis Structure
Drawing the ethanol Lewis structure involves several steps. Here’s a detailed guide to help you through the process:
Step 1: Determine the Total Number of Valence Electrons
First, identify the number of valence electrons for each atom in the molecule. Carbon © has 4 valence electrons, hydrogen (H) has 1, and oxygen (O) has 6. Ethanol has two carbon atoms, six hydrogen atoms, and one oxygen atom. Calculate the total number of valence electrons as follows:
- Carbon: 2 atoms × 4 valence electrons = 8 electrons
- Hydrogen: 6 atoms × 1 valence electron = 6 electrons
- Oxygen: 1 atom × 6 valence electrons = 6 electrons
Total valence electrons = 8 (from carbon) + 6 (from hydrogen) + 6 (from oxygen) = 20 electrons.
Step 2: Arrange the Atoms
Next, arrange the atoms in a skeletal structure. Ethanol has a backbone of two carbon atoms connected by a single bond. The oxygen atom is bonded to one of the carbon atoms, and the remaining hydrogen atoms are distributed around the carbon and oxygen atoms.
Step 3: Form Single Bonds
Start by forming single bonds between the atoms. Each single bond consists of 2 electrons. Connect the two carbon atoms with a single bond, the oxygen atom to one of the carbon atoms with a single bond, and distribute the remaining hydrogen atoms around the carbon and oxygen atoms.
Step 4: Distribute Remaining Electrons
After forming the single bonds, distribute the remaining electrons to complete the octets for carbon and oxygen atoms. Carbon atoms need 8 electrons (4 bonds), and oxygen atoms need 8 electrons (2 bonds and 2 lone pairs). Hydrogen atoms need only 2 electrons (1 bond).
Step 5: Check for Formal Charges
Ensure that the structure has no formal charges. Formal charges are calculated by subtracting the number of non-bonding electrons and half the number of bonding electrons from the number of valence electrons for each atom. In a correct Lewis structure, the formal charges should be minimized.
💡 Note: If there are formal charges, you may need to adjust the structure by forming double bonds or moving electrons to achieve a more stable configuration.

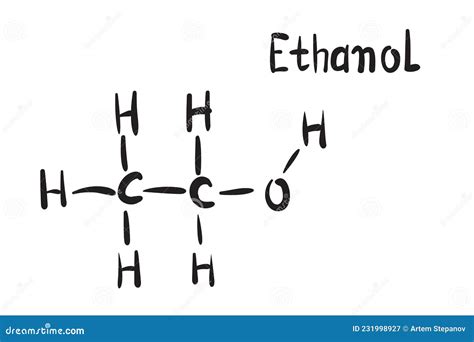

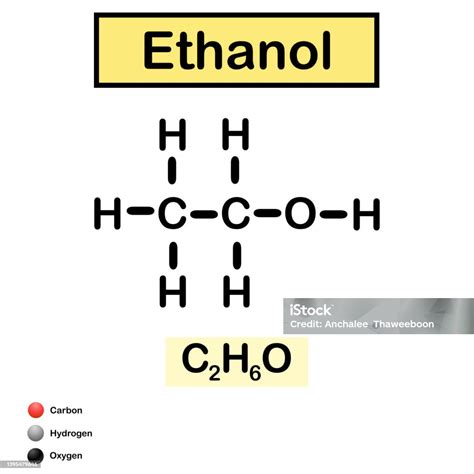

Ethanol Lewis Structure Diagram
Here is a visual representation of the ethanol Lewis structure:
Properties of Ethanol Based on Its Lewis Structure
The ethanol Lewis structure provides insights into the molecule’s properties. Ethanol is a polar molecule due to the presence of the hydroxyl group (-OH), which contains a polar O-H bond. This polarity allows ethanol to form hydrogen bonds with water molecules, making it soluble in water. Additionally, the Lewis structure helps explain ethanol’s reactivity, such as its ability to undergo oxidation and dehydration reactions.
Applications of Ethanol
Ethanol’s unique properties, as revealed by its ethanol Lewis structure, make it valuable in various applications:
- Fuel: Ethanol is used as a biofuel, often blended with gasoline to reduce emissions and dependence on fossil fuels.
- Beverages: Ethanol is the primary active ingredient in alcoholic beverages, contributing to their intoxicating effects.
- Solvent: Ethanol is a common solvent in pharmaceuticals, cosmetics, and cleaning products due to its ability to dissolve a wide range of substances.
- Industrial Uses: Ethanol is used in the production of various chemicals, including ethers, esters, and aldehydes.
Comparing Ethanol with Other Alcohols
To better understand ethanol, it’s helpful to compare it with other alcohols. Here’s a table highlighting the differences:
| Alcohol | Formula | Lewis Structure | Boiling Point (°C) | Solubility in Water |
|---|---|---|---|---|
| Methanol | CH3OH | Similar to ethanol but with one carbon atom | 64.7 | Miscible |
| Ethanol | C2H5OH | Two carbon atoms with a hydroxyl group | 78.4 | Miscible |
| Propanol | C3H7OH | Three carbon atoms with a hydroxyl group | 97.2 | Miscible |
| Butanol | C4H9OH | Four carbon atoms with a hydroxyl group | 117.7 | Slightly soluble |
The ethanol Lewis structure shows that as the carbon chain length increases, the boiling point also increases due to stronger intermolecular forces. However, solubility in water decreases with longer carbon chains because the non-polar hydrocarbon part becomes more dominant.
Understanding the ethanol Lewis structure is crucial for comprehending its chemical behavior and applications. By visualizing the arrangement of atoms and electrons, chemists can predict how ethanol will react in various conditions and optimize its use in different industries. Whether as a fuel, solvent, or ingredient in beverages, ethanol’s versatility is a testament to its unique molecular structure.
