The study of materials science and metallurgy often involves understanding the behavior of metals and alloys under different conditions. One of the most fundamental tools in this field is the Equilibrium Diagram Iron Carbon. This diagram provides a visual representation of the phases and microstructures that occur in iron-carbon alloys at different temperatures and compositions. By examining this diagram, metallurgists can predict the properties and behaviors of steel and cast iron, which are crucial for various industrial applications.
Understanding the Equilibrium Diagram Iron Carbon
The Equilibrium Diagram Iron Carbon is a phase diagram that illustrates the phases present in iron-carbon alloys at equilibrium. It is essential for understanding the heat treatment processes and the resulting microstructures of steel and cast iron. The diagram typically includes the following key components:
- Austenite (γ): A face-centered cubic (FCC) structure that is stable at high temperatures.
- Ferrite (α): A body-centered cubic (BCC) structure that is stable at lower temperatures.
- Cementite (Fe3C): A compound of iron and carbon that forms a hard and brittle phase.
- Pearlite: A lamellar structure consisting of alternating layers of ferrite and cementite.
- Ledeburite: A eutectic mixture of austenite and cementite.
Key Features of the Equilibrium Diagram Iron Carbon
The Equilibrium Diagram Iron Carbon is divided into several regions, each representing different phases and microstructures. The key features include:
- Eutectoid Point: At approximately 0.77% carbon and 727°C (1341°F), austenite decomposes into pearlite.
- Eutectic Point: At approximately 4.3% carbon and 1147°C (2097°F), liquid iron-carbon alloy decomposes into austenite and cementite.
- Critical Temperatures: The temperatures at which phase transformations occur, such as the A1, A2, A3, and A4 lines.
Phases and Microstructures
The Equilibrium Diagram Iron Carbon helps in identifying the phases and microstructures that form at different temperatures and carbon contents. Some of the important phases and microstructures include:
- Austenite: Forms at high temperatures and can dissolve up to 2.11% carbon.
- Ferrite: Forms at lower temperatures and can dissolve very little carbon (up to 0.025% at room temperature).
- Cementite: A hard and brittle phase that forms when the carbon content exceeds the solubility limit in ferrite.
- Pearlite: A lamellar structure of ferrite and cementite that forms when austenite decomposes at the eutectoid temperature.
- Ledeburite: A eutectic mixture of austenite and cementite that forms at the eutectic temperature.
Heat Treatment Processes
The Equilibrium Diagram Iron Carbon is crucial for understanding heat treatment processes, which involve heating and cooling steel to achieve desired properties. Some common heat treatment processes include:
- Annealing: Heating the steel to a temperature above the A3 line and then slowly cooling it to relieve internal stresses and soften the material.
- Normalizing: Heating the steel to a temperature above the A3 line and then cooling it in still air to refine the grain structure and improve mechanical properties.
- Quenching: Rapidly cooling the steel from a high temperature to form martensite, a hard and brittle phase.
- Tempering: Heating the quenched steel to a temperature below the A1 line to reduce brittleness and improve toughness.
Applications of the Equilibrium Diagram Iron Carbon
The Equilibrium Diagram Iron Carbon has numerous applications in the field of metallurgy and materials science. Some of the key applications include:
- Steel Production: Understanding the phases and microstructures that form at different temperatures and carbon contents helps in producing steel with desired properties.
- Cast Iron Production: The diagram aids in controlling the carbon content and heat treatment processes to produce cast iron with specific properties.
- Heat Treatment: The diagram is essential for designing heat treatment processes to achieve desired mechanical properties.
- Failure Analysis: The diagram helps in analyzing the causes of failure in steel and cast iron components by understanding the phases and microstructures present.
Interpreting the Equilibrium Diagram Iron Carbon
To interpret the Equilibrium Diagram Iron Carbon, it is important to understand the following steps:
- Identify the Carbon Content: Determine the carbon content of the iron-carbon alloy.
- Locate the Temperature: Identify the temperature at which the alloy is being studied or processed.
- Determine the Phase: Use the diagram to determine the phase or phases present at the given temperature and carbon content.
- Analyze the Microstructure: Understand the microstructural changes that occur during heating and cooling processes.
📝 Note: The Equilibrium Diagram Iron Carbon is based on equilibrium conditions, meaning it assumes that the alloy has enough time to reach a stable state. In practice, non-equilibrium conditions may occur, leading to different phases and microstructures.
Important Phases and Transformations
The Equilibrium Diagram Iron Carbon includes several important phases and transformations that are crucial for understanding the behavior of iron-carbon alloys. Some of these phases and transformations include:
- Austenite to Pearlite Transformation: At the eutectoid temperature (727°C), austenite decomposes into pearlite, a lamellar structure of ferrite and cementite.
- Austenite to Martensite Transformation: Rapid cooling (quenching) of austenite can result in the formation of martensite, a hard and brittle phase.
- Ferrite to Austenite Transformation: Heating ferrite above the A3 line results in the formation of austenite, which can dissolve more carbon.
- Cementite Formation: When the carbon content exceeds the solubility limit in ferrite, cementite forms, leading to a hard and brittle phase.
Practical Examples
To illustrate the practical applications of the Equilibrium Diagram Iron Carbon, consider the following examples:
- Steel Production: A steel with 0.4% carbon is heated to 800°C. According to the diagram, the steel will be in the austenite phase. Slow cooling will result in the formation of pearlite, while rapid cooling will form martensite.
- Cast Iron Production: A cast iron with 3.5% carbon is heated to 1200°C. The diagram shows that the cast iron will be in the liquid phase. Slow cooling will result in the formation of ledeburite, while rapid cooling will form a mixture of austenite and cementite.

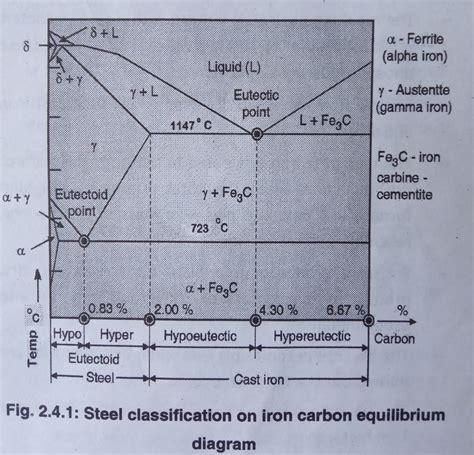

Here is a simplified version of the Equilibrium Diagram Iron Carbon to illustrate the phases and transformations:
| Temperature (°C) | Phases |
|---|---|
| 1538 | Liquid |
| 1495 | Liquid + Austenite |
| 1394 | Austenite |
| 727 | Austenite + Pearlite |
| 727 | Pearlite |
📝 Note: The table above is a simplified representation of the Equilibrium Diagram Iron Carbon. The actual diagram includes more detailed information about the phases and transformations that occur at different temperatures and carbon contents.
In conclusion, the Equilibrium Diagram Iron Carbon is a fundamental tool in metallurgy and materials science. It provides valuable insights into the phases and microstructures that form in iron-carbon alloys at different temperatures and carbon contents. By understanding this diagram, metallurgists can design heat treatment processes, produce steel and cast iron with desired properties, and analyze the causes of failure in metallic components. The diagram’s applications are vast, making it an essential resource for anyone working in the field of materials science and metallurgy.
