The Equation of Continuity is a fundamental principle in fluid dynamics that describes the conservation of mass within a fluid flow. It is a cornerstone concept in various engineering and scientific disciplines, including aerodynamics, hydraulics, and meteorology. Understanding the Equation of Continuity is crucial for analyzing fluid behavior in pipes, channels, and open flows. This principle ensures that the mass flow rate into a system is equal to the mass flow rate out of the system, assuming no mass is added or removed within the system.
Understanding the Equation of Continuity
The Equation of Continuity is derived from the principle of conservation of mass. For an incompressible fluid, the equation can be expressed as:
A1v1 = A2v2
Where:
- A1 and A2 are the cross-sectional areas at two different points in the flow.
- v1 and v2 are the velocities of the fluid at these points.
This equation states that the product of the cross-sectional area and the velocity at one point in the flow must equal the product of the cross-sectional area and the velocity at another point. This ensures that the mass flow rate remains constant throughout the system.
Applications of the Equation of Continuity
The Equation of Continuity has wide-ranging applications in various fields. Some of the key areas where this principle is applied include:
- Hydraulic Systems: In hydraulic systems, the Equation of Continuity is used to design pipes and channels to ensure efficient water flow. Engineers use this principle to determine the appropriate pipe diameters and flow rates to prevent blockages and ensure optimal performance.
- Aerodynamics: In aerodynamics, the Equation of Continuity is crucial for understanding the behavior of air flow around aircraft wings and other aerodynamic surfaces. It helps in designing efficient airfoils and reducing drag.
- Meteorology: In meteorology, the Equation of Continuity is used to model atmospheric flows and predict weather patterns. It helps in understanding how air masses move and interact, which is essential for accurate weather forecasting.
- Chemical Engineering: In chemical engineering, the Equation of Continuity is applied to design and optimize processes involving fluid flow, such as in reactors and heat exchangers. It ensures that the flow rates are consistent and that the processes are efficient.
Derivation of the Equation of Continuity
The derivation of the Equation of Continuity involves applying the principle of conservation of mass to a control volume. Consider a control volume with a fluid flowing through it. The mass flow rate into the control volume must equal the mass flow rate out of the control volume. Mathematically, this can be expressed as:
ρ1A1v1 = ρ2A2v2
Where:
- ρ1 and ρ2 are the densities of the fluid at two different points.
- A1 and A2 are the cross-sectional areas at these points.
- v1 and v2 are the velocities of the fluid at these points.
For an incompressible fluid, the density ρ is constant, so the equation simplifies to:
A1v1 = A2v2
This simplified form is the Equation of Continuity for incompressible fluids.
Examples of the Equation of Continuity in Action
To better understand the Equation of Continuity, let’s consider a few examples:
Water Flow in a Pipe

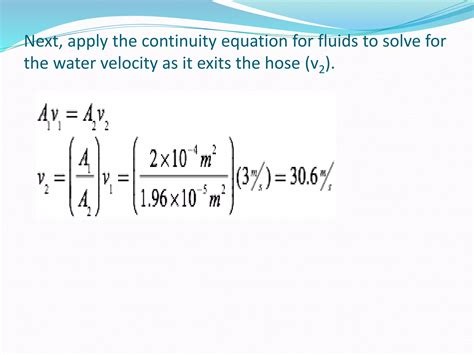

Consider a pipe with a varying cross-sectional area. If the cross-sectional area at one end of the pipe is A1 and the velocity of the water is v1, and at the other end, the cross-sectional area is A2 and the velocity is v2, the Equation of Continuity states that:
A1v1 = A2v2
If A2 is smaller than A1, then v2 must be greater than v1 to maintain the same mass flow rate. This principle is crucial in designing pipes to ensure efficient water flow.
Aerodynamic Flow Around an Airfoil
In aerodynamics, the Equation of Continuity helps in understanding the flow of air around an airfoil. As air flows over the curved upper surface of an airfoil, the velocity increases due to the decrease in cross-sectional area. This increase in velocity creates a region of lower pressure above the airfoil, generating lift. The Equation of Continuity ensures that the mass flow rate of air remains constant, which is essential for designing efficient airfoils.
Atmospheric Flow in Meteorology
In meteorology, the Equation of Continuity is used to model atmospheric flows. For example, when air masses converge, the velocity of the air increases to maintain the same mass flow rate. This principle helps in predicting weather patterns and understanding how air masses interact. The Equation of Continuity is a fundamental tool in meteorological models, ensuring accurate weather forecasting.
Important Considerations
When applying the Equation of Continuity, there are several important considerations to keep in mind:
- Compressibility: For compressible fluids, the density ρ is not constant, and the Equation of Continuity must include the density term. The general form of the equation for compressible fluids is ρ1A1v1 = ρ2A2v2.
- Steady vs. Unsteady Flow: The Equation of Continuity can be applied to both steady and unsteady flows. For unsteady flows, the equation must account for the change in mass within the control volume over time.
- Boundary Conditions: The boundary conditions of the flow, such as the inlet and outlet velocities and areas, must be clearly defined to apply the Equation of Continuity accurately.
🔍 Note: The Equation of Continuity assumes that there is no mass addition or removal within the control volume. If there is mass addition or removal, such as in chemical reactions or phase changes, the equation must be modified to account for these effects.
Advanced Topics in the Equation of Continuity
For more advanced applications, the Equation of Continuity can be extended to include additional factors such as turbulence, viscosity, and heat transfer. These extensions are crucial in fields like computational fluid dynamics (CFD) and advanced aerodynamics.
Turbulent Flow
In turbulent flow, the Equation of Continuity must account for the fluctuating velocities and pressures. This requires solving the Navier-Stokes equations, which are a set of partial differential equations that describe the motion of fluid substances. The Equation of Continuity is a key component of these equations, ensuring mass conservation in turbulent flows.
Viscous Flow
For viscous flows, the Equation of Continuity must be combined with the momentum equation to account for the effects of viscosity. The momentum equation describes the forces acting on the fluid, including viscous forces. Together, these equations provide a complete description of the fluid flow, including the effects of viscosity.
Heat Transfer
In flows involving heat transfer, the Equation of Continuity must be coupled with the energy equation. The energy equation describes the conservation of energy within the fluid, including the effects of heat transfer. This coupling is essential in applications such as heat exchangers and combustion systems, where both mass and energy conservation are important.
Numerical Methods for Solving the Equation of Continuity
Solving the Equation of Continuity analytically can be challenging, especially for complex geometries and flow conditions. Numerical methods provide a powerful tool for solving these equations. Some of the commonly used numerical methods include:
- Finite Difference Method (FDM): This method discretizes the differential equations into a set of algebraic equations that can be solved numerically. It is widely used in CFD for solving the Equation of Continuity and other fluid dynamics equations.
- Finite Element Method (FEM): This method uses a variational formulation to solve the differential equations. It is particularly useful for complex geometries and boundary conditions.
- Finite Volume Method (FVM): This method divides the domain into a set of control volumes and solves the equations within each volume. It is widely used in CFD for its ability to handle complex flow conditions and geometries.
🔍 Note: The choice of numerical method depends on the specific application and the complexity of the flow conditions. Each method has its advantages and limitations, and the selection should be based on the requirements of the problem.
Case Studies
To illustrate the practical application of the Equation of Continuity, let’s consider a few case studies:
Designing a Water Supply System
In a water supply system, the Equation of Continuity is used to design pipes and pumps to ensure efficient water flow. Engineers must consider the varying cross-sectional areas of the pipes and the required flow rates to maintain a consistent water supply. By applying the Equation of Continuity, they can determine the appropriate pipe diameters and pump capacities to meet the demand.
Optimizing Airflow in a Ventilation System
In a ventilation system, the Equation of Continuity helps in optimizing airflow to ensure proper ventilation and air quality. Engineers use this principle to design ducts and fans that maintain the required airflow rates. By applying the Equation of Continuity, they can determine the appropriate duct sizes and fan capacities to achieve efficient ventilation.
Analyzing Flow in a Chemical Reactor
In a chemical reactor, the Equation of Continuity is used to analyze the flow of reactants and products. Engineers must ensure that the flow rates are consistent to maintain the desired reaction conditions. By applying the Equation of Continuity, they can design the reactor to optimize the flow and reaction efficiency.
Conclusion
The Equation of Continuity is a fundamental principle in fluid dynamics that ensures the conservation of mass within a fluid flow. It is applied in various fields, including hydraulics, aerodynamics, meteorology, and chemical engineering, to design and optimize systems involving fluid flow. Understanding the Equation of Continuity is crucial for analyzing fluid behavior and ensuring efficient performance in these systems. By applying this principle, engineers and scientists can design systems that meet the required flow rates and maintain optimal performance. The Equation of Continuity is a cornerstone concept that underpins many advancements in fluid dynamics and related fields.
