Epicyclic planetary gear systems are a fascinating and complex mechanism that has revolutionized various industries, from automotive to aerospace. These gear systems are designed to transfer power and torque efficiently, making them indispensable in modern machinery. This blog post delves into the intricacies of epicyclic planetary gear systems, their components, working principles, applications, and advantages.
Understanding Epicyclic Planetary Gear Systems

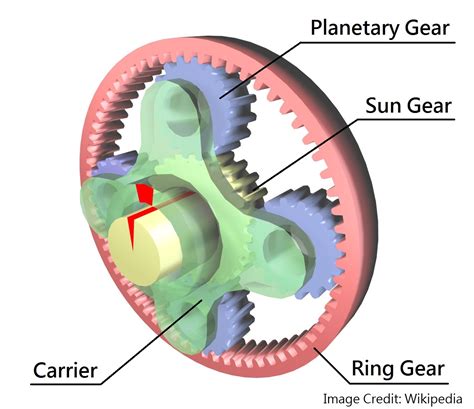

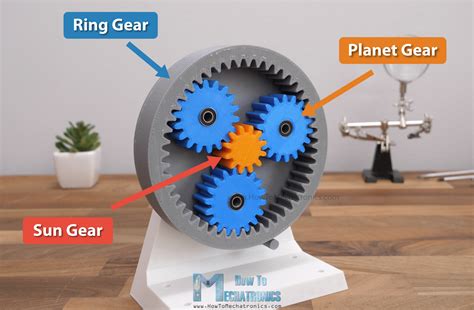

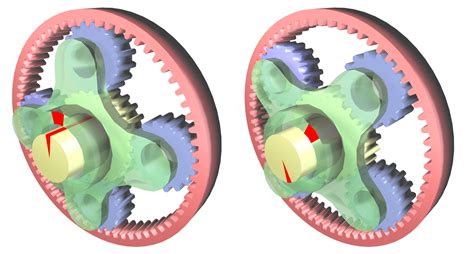

An epicyclic planetary gear system, often simply referred to as a planetary gear system, consists of several key components: the sun gear, planet gears, ring gear, and a carrier. The sun gear is located at the center and is typically the input or output shaft. The planet gears revolve around the sun gear and are mounted on a carrier, which can also serve as an input or output. The ring gear surrounds the planet gears and can act as an input, output, or fixed component.
The unique arrangement of these components allows for various configurations, making epicyclic planetary gear systems highly versatile. The gear ratios can be adjusted by changing the number of teeth on the gears, providing flexibility in design and application.

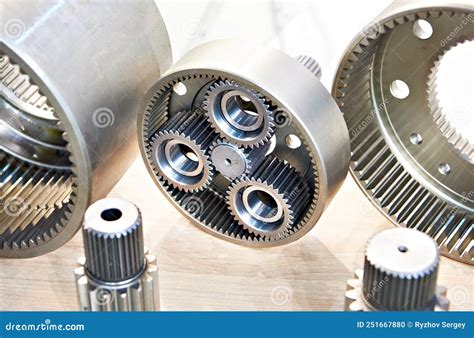

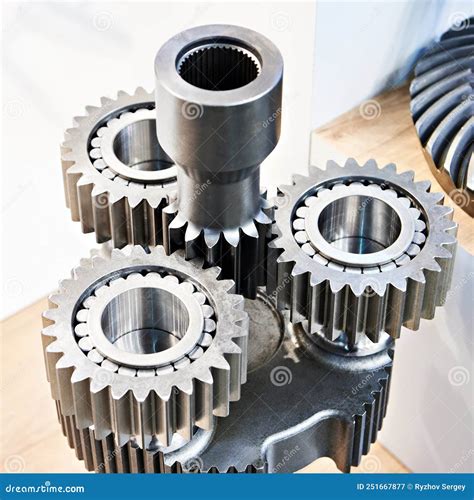

Components of an Epicyclic Planetary Gear System
To better understand how an epicyclic planetary gear system works, let's break down its components:
- Sun Gear: The central gear that drives the planet gears.
- Planet Gears: Gears that revolve around the sun gear and are mounted on the carrier.
- Ring Gear: The outer gear that surrounds the planet gears.
- Carrier: The component that holds the planet gears in place and can also serve as an input or output.
Each of these components plays a crucial role in the functioning of the gear system. The interaction between the sun gear, planet gears, and ring gear allows for complex gear ratios and efficient power transmission.

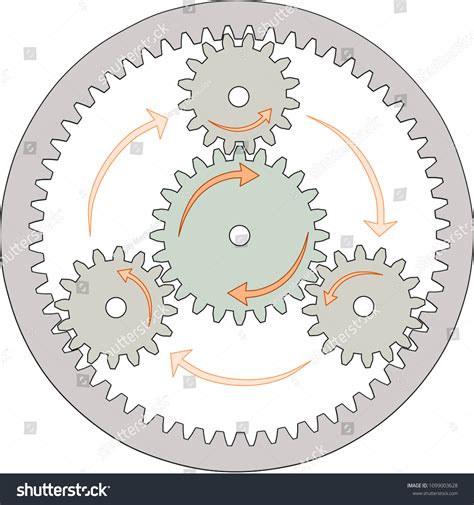

Working Principle of Epicyclic Planetary Gear Systems
The working principle of an epicyclic planetary gear system is based on the relative motion of the gears. The sun gear can be the input, and the ring gear can be the output, or vice versa. The carrier can also act as an input or output, depending on the configuration. The key to understanding the system is to recognize that the planet gears rotate on their own axes while also revolving around the sun gear.
Here's a simplified explanation of how it works:
- The sun gear rotates, driving the planet gears.
- The planet gears rotate on their own axes and revolve around the sun gear.
- The ring gear, which is fixed or rotating, interacts with the planet gears.
- The carrier, which holds the planet gears, can also rotate, providing additional flexibility in power transmission.
This complex interaction allows for a wide range of gear ratios and efficient power transfer, making epicyclic planetary gear systems ideal for various applications.
Applications of Epicyclic Planetary Gear Systems
Epicyclic planetary gear systems are used in a wide range of industries due to their efficiency and versatility. Some of the most common applications include:

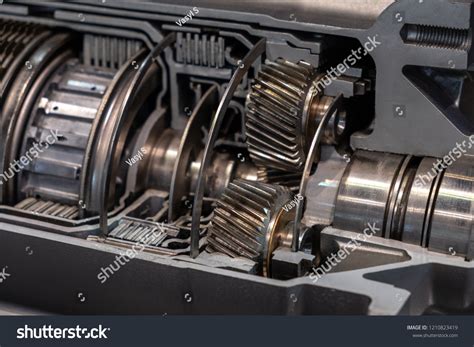

- Automotive: Used in automatic transmissions to provide smooth and efficient gear shifting.
- Aerospace: Employed in helicopter transmissions and other aircraft components for precise control and power transmission.
- Industrial Machinery: Utilized in various machines for efficient power transfer and speed reduction.
- Robotics: Used in robotic arms and other precision machinery for accurate movement and control.
- Wind Turbines: Employed in the gearboxes of wind turbines to convert the slow rotation of the blades into high-speed rotation for power generation.
These applications highlight the versatility and efficiency of epicyclic planetary gear systems in various fields.
Advantages of Epicyclic Planetary Gear Systems
Epicyclic planetary gear systems offer several advantages over other types of gear systems. Some of the key benefits include:
- High Torque Density: These systems can transmit high torque in a compact space, making them ideal for applications where space is limited.
- Efficient Power Transmission: The design allows for efficient power transfer with minimal energy loss.
- Versatility: The ability to configure the system in various ways provides flexibility in design and application.
- Smooth Operation: The interaction of the gears results in smooth and quiet operation, reducing wear and tear.
- Durability: The robust design ensures long-lasting performance, even in demanding conditions.
These advantages make epicyclic planetary gear systems a preferred choice in many industries.
Design Considerations for Epicyclic Planetary Gear Systems
Designing an epicyclic planetary gear system involves several considerations to ensure optimal performance. Some of the key factors to consider include:
- Gear Ratios: The number of teeth on the sun gear, planet gears, and ring gear determines the gear ratio. Careful selection of gear ratios is crucial for achieving the desired performance.
- Material Selection: Choosing the right materials for the gears and other components is essential for durability and performance. Common materials include steel, bronze, and plastic.
- Lubrication: Proper lubrication is necessary to reduce friction and wear, ensuring smooth operation and longevity.
- Load Distribution: Ensuring even load distribution among the planet gears is important for balanced operation and reduced wear.
- Manufacturing Tolerances: Precision manufacturing is crucial for maintaining the accuracy and performance of the gear system.
By carefully considering these factors, designers can create epicyclic planetary gear systems that meet the specific requirements of their applications.
Common Configurations of Epicyclic Planetary Gear Systems
Epicyclic planetary gear systems can be configured in various ways to achieve different performance characteristics. Some of the most common configurations include:
- Simple Planetary: Consists of a sun gear, planet gears, and a ring gear. The carrier can be fixed or rotating.
- Compound Planetary: Includes multiple sets of planet gears, providing higher gear ratios and more complex motion.
- Differential Planetary: Used in applications where differential motion is required, such as in automotive differentials.
Each configuration has its own advantages and is suited to specific applications. Understanding these configurations can help in selecting the right epicyclic planetary gear system for a particular need.
Maintenance and Troubleshooting of Epicyclic Planetary Gear Systems
Maintaining an epicyclic planetary gear system is crucial for ensuring its longevity and performance. Regular maintenance includes:
- Lubrication: Regularly checking and replacing lubricants to reduce friction and wear.
- Inspection: Periodically inspecting the gears and other components for signs of wear or damage.
- Alignment: Ensuring proper alignment of the gears to prevent uneven wear and tear.
- Cleaning: Keeping the system clean to prevent contamination and ensure smooth operation.
Troubleshooting common issues involves identifying the source of the problem and taking appropriate corrective actions. Some common issues and their solutions include:
| Issue | Solution |
|---|---|
| Excessive Noise | Check for misalignment, worn gears, or insufficient lubrication. |
| Vibration | Inspect for unbalanced loads, worn bearings, or misaligned components. |
| Reduced Efficiency | Check for contamination, worn gears, or inadequate lubrication. |
Regular maintenance and prompt troubleshooting can extend the lifespan of an epicyclic planetary gear system and ensure optimal performance.
π οΈ Note: Always follow the manufacturer's guidelines for maintenance and troubleshooting to ensure the best results.
Future Trends in Epicyclic Planetary Gear Systems
The field of epicyclic planetary gear systems is continually evolving, driven by advancements in technology and increasing demand for efficiency and performance. Some of the future trends in this area include:
- Advanced Materials: The use of new materials, such as composites and advanced alloys, to improve durability and performance.
- Precision Manufacturing: Enhanced manufacturing techniques, such as 3D printing and CNC machining, to achieve higher precision and accuracy.
- Smart Gear Systems: Integration of sensors and IoT technology to monitor performance and predict maintenance needs.
- Eco-Friendly Designs: Development of gear systems that are more energy-efficient and environmentally friendly.
These trends are shaping the future of epicyclic planetary gear systems, making them even more efficient and versatile.
In conclusion, epicyclic planetary gear systems are a cornerstone of modern machinery, offering unparalleled efficiency, versatility, and durability. From automotive transmissions to aerospace applications, these gear systems play a crucial role in various industries. Understanding their components, working principles, and design considerations is essential for leveraging their full potential. Regular maintenance and staying abreast of future trends will ensure that epicyclic planetary gear systems continue to drive innovation and performance in the years to come.
