Electron Configuration Diagram

Understanding the structure of atoms is fundamental to grasping the behavior of elements and their interactions. One of the most powerful tools for visualizing this structure is the Electron Configuration Diagram. This diagram provides a clear and concise way to represent the arrangement of electrons in an atom, which is crucial for predicting chemical properties and reactions.

Table of Contents

What is an Electron Configuration Diagram?

An Electron Configuration Diagram is a graphical representation of the distribution of electrons in the various energy levels and sublevels of an atom. It helps in understanding how electrons are arranged in different orbitals, which in turn determines the chemical behavior of the element. The diagram is based on the principles of quantum mechanics and the Aufbau principle, which states that electrons fill the lowest energy levels first before moving to higher levels.

Basic Principles of Electron Configuration

To understand an Electron Configuration Diagram, it’s essential to grasp a few basic principles:

Energy Levels (Shells): These are the main levels where electrons reside, denoted by the principal quantum number n. The first energy level is closest to the nucleus, and each subsequent level is farther away.
Sublevels (Orbitals): Within each energy level, there are sublevels or orbitals, denoted by the letters s, p, d, and f. Each sublevel can hold a specific number of electrons.
Pauli Exclusion Principle: No two electrons in an atom can have the same set of four quantum numbers. This means each orbital can hold a maximum of two electrons with opposite spins.
Hund’s Rule: Electrons fill orbitals in a way that maximizes the number of unpaired electrons. This rule helps in determining the distribution of electrons in degenerate orbitals.

Constructing an Electron Configuration Diagram

Constructing an Electron Configuration Diagram involves several steps. Here’s a step-by-step guide:

Determine the Atomic Number: The atomic number (Z) tells you the number of protons and electrons in a neutral atom.
Identify the Energy Levels and Sublevels: Use the Aufbau principle to fill the energy levels and sublevels in order of increasing energy.
Apply the Pauli Exclusion Principle and Hund’s Rule: Ensure that each orbital is filled according to these principles.
Draw the Diagram: Represent the electrons in the appropriate orbitals using arrows to indicate spin.

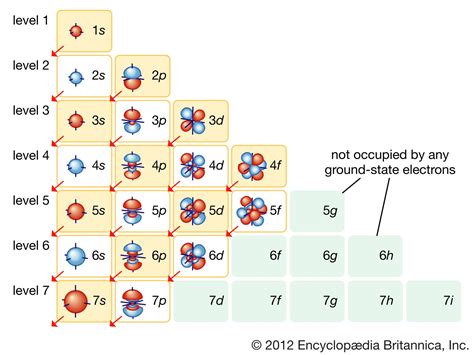

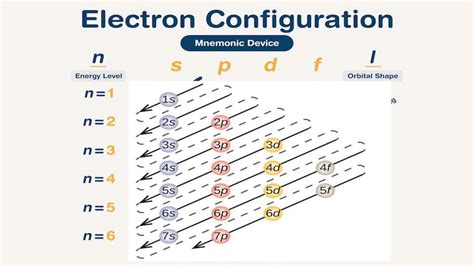

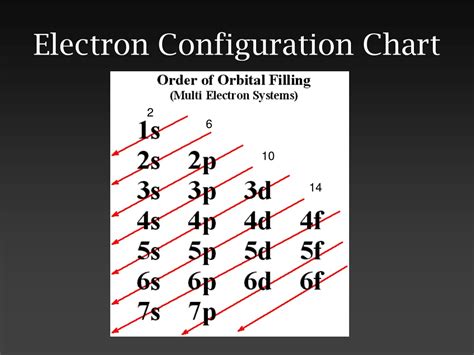

📝 Note: The order of filling sublevels is 1s, 2s, 2p, 3s, 3p, 4s, 3d, 4p, 5s, 4d, 5p, 6s, 4f, 5d, 6p, 7s, 5f, 6d, 7p.

Examples of Electron Configuration Diagrams

Let’s look at a few examples to illustrate how to construct an Electron Configuration Diagram for different elements.

Hydrogen (H)

Hydrogen has one electron. The electron configuration diagram for hydrogen is straightforward:

Energy Level	Sublevel	Electrons
1	s	1

Diagram:

1s: ↑

Helium (He)

Helium has two electrons. The electron configuration diagram for helium is:

Energy Level	Sublevel	Electrons
1	s	2

Diagram:

1s: ↑ ↓

Carbon ©

Carbon has six electrons. The electron configuration diagram for carbon is:

Energy Level	Sublevel	Electrons
1	s	2
2	s	2
2	p	2

Diagram:

1s: ↑ ↓

2s: ↑ ↓

2p: ↑ ↑

Iron (Fe)

Iron has 26 electrons. The electron configuration diagram for iron is more complex:

Energy Level	Sublevel	Electrons
1	s	2
2	s	2
2	p	6
3	s	2
3	p	6
4	s	2
3	d	6

Diagram:

1s: ↑ ↓

2s: ↑ ↓

2p: ↑ ↓ ↑ ↓ ↑ ↓

3s: ↑ ↓

3p: ↑ ↓ ↑ ↓ ↑ ↓

4s: ↑ ↓

3d: ↑ ↑ ↑ ↑ ↑ ↑

Applications of Electron Configuration Diagrams

Electron Configuration Diagrams are not just theoretical constructs; they have practical applications in various fields:

Chemical Bonding: Understanding the electron configuration helps in predicting how atoms will bond to form molecules. For example, elements with incomplete outer shells tend to form bonds to achieve a stable configuration.
Periodic Table Trends: The periodic table is organized based on electron configurations. Elements in the same group have similar outer electron configurations, leading to similar chemical properties.
Spectroscopy: The energy levels and transitions of electrons can be studied using spectroscopy, providing insights into the electronic structure of atoms and molecules.
Material Science: The electronic structure of materials determines their properties, such as conductivity, magnetism, and optical behavior. Understanding electron configurations is crucial for developing new materials with desired properties.

Challenges and Limitations

While Electron Configuration Diagrams are powerful tools, they also have limitations:

Complexity for Heavy Elements: For elements with high atomic numbers, the electron configuration can be very complex, making it difficult to draw accurate diagrams.
Relativistic Effects: For heavy elements, relativistic effects can significantly alter the electronic structure, which is not fully captured by simple electron configuration diagrams.
Interactions Between Electrons: The diagrams do not account for the interactions between electrons, which can affect the energy levels and configurations.

📝 Note: For more accurate representations of electron configurations, especially for heavy elements, advanced quantum mechanical calculations are often required.

In summary, Electron Configuration Diagrams are essential for understanding the structure and behavior of atoms. They provide a visual representation of electron distribution, which is crucial for predicting chemical properties and reactions. By following the principles of quantum mechanics and the Aufbau principle, one can construct accurate diagrams for various elements. These diagrams have wide-ranging applications in chemistry, material science, and spectroscopy, making them indispensable tools for scientists and researchers.
