Electromagnetic Distance Measurement

Electromagnetic Distance Measurement (EDM) is a critical technology in various fields, including surveying, civil engineering, and geophysics. It leverages the principles of electromagnetism to determine distances with high precision. This technology has revolutionized how we measure and map the world around us, offering unparalleled accuracy and efficiency. In this post, we will delve into the fundamentals of EDM, its applications, and the advancements that have made it an indispensable tool in modern measurement techniques.

Table of Contents

Understanding Electromagnetic Distance Measurement

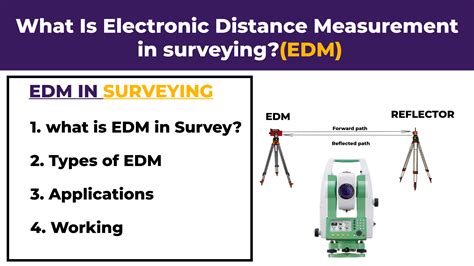

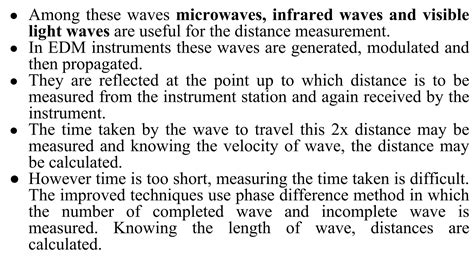

Electromagnetic Distance Measurement involves the use of electromagnetic waves to measure distances. The basic principle behind EDM is the time-of-flight method, where the time taken for an electromagnetic wave to travel from a transmitter to a reflector and back is measured. This time is then converted into a distance using the speed of light.

There are several types of EDM instruments, each designed for specific applications. The most common types include:

Total Stations: These are versatile instruments that combine EDM with angular measurement capabilities. They are widely used in surveying and construction.
Laser Scanners: These devices use laser beams to capture detailed 3D data of an environment. They are particularly useful in applications requiring high-resolution mapping.
GPS-Based Systems: These systems use satellite signals to determine positions and distances. They are commonly used in geodesy and navigation.

Principles of Electromagnetic Distance Measurement

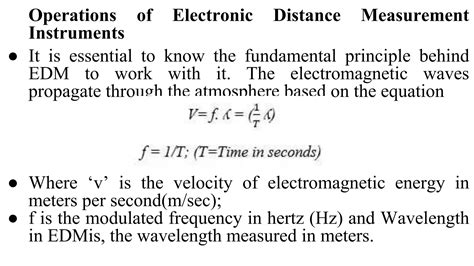

The core principle of EDM is based on the propagation of electromagnetic waves. When a wave is emitted from a transmitter, it travels through the air at the speed of light and is reflected back by a reflector. The time taken for this round trip is measured, and the distance is calculated using the formula:

Distance = (Speed of Light × Time) / 2

This method ensures high accuracy, as the speed of light is a constant value. However, factors such as atmospheric conditions and the quality of the reflector can affect the measurement.

Applications of Electromagnetic Distance Measurement

Electromagnetic Distance Measurement has a wide range of applications across various industries. Some of the key areas where EDM is extensively used include:

Surveying: EDM is used to measure distances between points on the Earth's surface with high precision. This is crucial for creating accurate maps and land surveys.
Civil Engineering: In construction projects, EDM helps in measuring distances and angles, ensuring that structures are built according to specifications.
Geophysics: EDM is used to study the Earth's crust and subsurface structures. It helps in identifying geological features and resources.
Aerospace: In aerospace engineering, EDM is used for precise measurements in the design and testing of aircraft and spacecraft.

Advantages of Electromagnetic Distance Measurement

Electromagnetic Distance Measurement offers several advantages over traditional measurement methods. Some of the key benefits include:

High Accuracy: EDM provides measurements with high precision, often within millimeters.
Efficiency: EDM instruments can measure distances quickly, reducing the time required for surveys and construction projects.
Versatility: EDM can be used in various environments, including urban and rural areas, and even underwater.
Non-Contact Measurement: EDM allows for non-contact measurement, which is particularly useful in hazardous or inaccessible areas.

Challenges and Limitations

Despite its advantages, Electromagnetic Distance Measurement also faces several challenges and limitations. Some of the key issues include:

Atmospheric Interference: Factors such as temperature, humidity, and atmospheric pressure can affect the accuracy of EDM measurements.
Reflector Quality: The quality and positioning of the reflector can impact the measurement. Poor reflectors can lead to inaccurate readings.
Line of Sight: EDM requires a clear line of sight between the transmitter and reflector. Obstacles can obstruct the signal, affecting the measurement.
Cost: High-precision EDM instruments can be expensive, making them less accessible for smaller projects or organizations.

🔍 Note: To mitigate these challenges, it is essential to calibrate EDM instruments regularly and use high-quality reflectors. Additionally, understanding the environmental conditions and ensuring a clear line of sight can improve measurement accuracy.

Advancements in Electromagnetic Distance Measurement

Over the years, significant advancements have been made in Electromagnetic Distance Measurement technology. These advancements have enhanced the accuracy, efficiency, and versatility of EDM instruments. Some of the key developments include:

Laser Technology: The integration of laser technology has improved the precision and range of EDM instruments. Laser scanners, for example, can capture detailed 3D data with high resolution.
GPS Integration: The combination of EDM with GPS technology has enabled precise positioning and distance measurement in various environments. This is particularly useful in geodesy and navigation.
Software Enhancements: Advanced software solutions have been developed to process and analyze EDM data. These tools help in creating accurate maps, models, and simulations.
Miniaturization: The miniaturization of EDM instruments has made them more portable and accessible. This has expanded their use in various applications, including mobile mapping and drone surveys.

Future Trends in Electromagnetic Distance Measurement

The future of Electromagnetic Distance Measurement looks promising, with several emerging trends and technologies set to revolutionize the field. Some of the key trends include:

Artificial Intelligence and Machine Learning: AI and ML algorithms can enhance the accuracy and efficiency of EDM measurements. These technologies can analyze data in real-time, identifying patterns and anomalies.
Internet of Things (IoT): The integration of IoT with EDM can enable remote monitoring and data collection. This is particularly useful in large-scale projects and hazardous environments.
Augmented Reality (AR): AR technology can provide real-time visualization of EDM data, helping users to better understand and interpret measurements.
Quantum Sensors: Quantum sensors offer unprecedented precision and sensitivity. These sensors can revolutionize EDM by providing measurements with sub-millimeter accuracy.

These advancements and trends highlight the evolving nature of Electromagnetic Distance Measurement. As technology continues to progress, EDM will play an even more critical role in various industries, enabling precise and efficient measurements.

Electromagnetic Distance Measurement is a cornerstone of modern measurement techniques, offering unparalleled accuracy and efficiency. From surveying and civil engineering to geophysics and aerospace, EDM has transformed how we measure and map the world around us. As technology continues to advance, the future of EDM looks bright, with emerging trends and innovations set to further enhance its capabilities. By understanding the principles, applications, and advancements of EDM, we can harness its full potential and drive progress in various fields.
