Electric Flux Equation

Understanding the Electric Flux Equation is fundamental to grasping the principles of electromagnetism. This equation is a cornerstone of Gauss's Law, which relates the electric flux through a closed surface to the charge enclosed within that surface. By delving into the Electric Flux Equation, we can gain insights into how electric fields behave in various scenarios, from simple point charges to complex distributions.

Table of Contents

Understanding Electric Flux

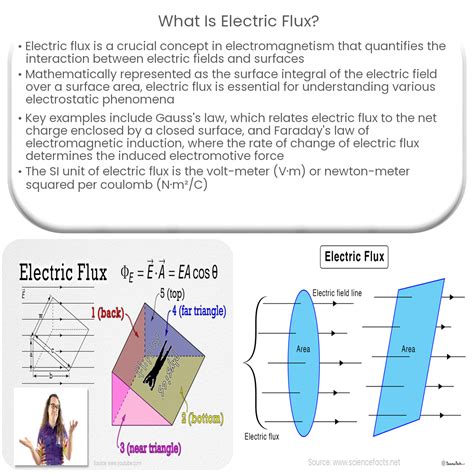

Electric flux is a measure of the electric field passing through a given surface. It is a scalar quantity that quantifies the number of electric field lines penetrating a surface. The concept of electric flux is crucial in understanding how electric fields interact with surfaces and volumes.

To define electric flux mathematically, consider a small area element dA on a surface. The electric flux dΦ through this small area is given by the dot product of the electric field E and the area vector dA:

dΦ = E • dA

Here, E is the electric field vector, and dA is the vector representing the area element, directed perpendicular to the surface. The dot product ensures that only the component of the electric field perpendicular to the surface contributes to the flux.

For a finite surface, the total electric flux Φ is the integral of the electric flux over the entire surface:

Φ = ∮_S E • dA

This integral sums up the contributions from all small area elements on the surface, providing the total electric flux through the surface.

The Electric Flux Equation and Gauss’s Law

The Electric Flux Equation is central to Gauss’s Law, which states that the total electric flux through a closed surface is proportional to the total charge enclosed within that surface. Mathematically, Gauss’s Law is expressed as:

Φ = Q_enc/ε₀

where Φ is the electric flux, Q_enc is the total charge enclosed within the surface, and ε₀ is the permittivity of free space (approximately 8.85 × 10^-12 F/m).

Combining the definitions of electric flux and Gauss's Law, we get:

∮_S E • dA = Q_enc/ε₀

This equation is the Electric Flux Equation and is fundamental to understanding the behavior of electric fields in various scenarios.

Applications of the Electric Flux Equation

The Electric Flux Equation has numerous applications in physics and engineering. Some of the key applications include:

Calculating Electric Fields: The Electric Flux Equation can be used to determine the electric field in regions with symmetric charge distributions. For example, it can be used to find the electric field inside and outside a charged sphere or cylinder.
Designing Capacitors: In the design of capacitors, the Electric Flux Equation helps in understanding the electric field between the plates and the capacitance of the device.
Analyzing Dielectric Materials: The behavior of electric fields in dielectric materials can be analyzed using the Electric Flux Equation, which helps in understanding polarization and the dielectric constant.
Electrostatic Shielding: The Electric Flux Equation is used to design electrostatic shields that protect sensitive equipment from electric fields.

📝 Note: The Electric Flux Equation is particularly useful in problems involving symmetry, where the electric field can be simplified using Gauss's Law.

Solving Problems with the Electric Flux Equation

To solve problems using the Electric Flux Equation, follow these steps:

Identify the Symmetry: Determine the symmetry of the charge distribution. Common symmetries include spherical, cylindrical, and planar symmetry.
Choose a Gaussian Surface: Select a Gaussian surface that takes advantage of the symmetry. The Gaussian surface should be a closed surface that encloses the charge distribution.
Apply Gauss's Law: Use Gauss's Law to relate the electric flux through the Gaussian surface to the charge enclosed within the surface.
Calculate the Electric Field: Solve for the electric field using the Electric Flux Equation. This may involve integrating over the Gaussian surface or using symmetry arguments to simplify the calculation.

📝 Note: The choice of the Gaussian surface is crucial. It should be chosen such that the electric field has a constant magnitude and direction over the surface, simplifying the integration process.

Examples of the Electric Flux Equation in Action

Let’s consider a few examples to illustrate the application of the Electric Flux Equation.

Example 1: Electric Field of a Charged Sphere

Consider a sphere of radius R with a total charge Q uniformly distributed over its surface. To find the electric field outside the sphere, we choose a Gaussian surface that is a spherical shell of radius r (where r > R).

The electric flux through the Gaussian surface is:

Φ = ∮_S E • dA = E • 4πr²

According to Gauss's Law:

E • 4πr² = Q/ε₀

Solving for the electric field E:

E = Q/(4πε₀r²)

This is the familiar expression for the electric field of a point charge, which is valid outside the sphere.

Example 2: Electric Field Inside a Charged Sphere

For the same sphere, to find the electric field inside the sphere (where r < R), we choose a Gaussian surface that is a spherical shell of radius r (where r < R).

The electric flux through the Gaussian surface is:

Φ = ∮_S E • dA = E • 4πr²

According to Gauss's Law, the charge enclosed within the Gaussian surface is:

Q_enc = (r/R)³Q

Thus, the electric flux is:

E • 4πr² = (r/R)³Q/ε₀

Solving for the electric field E:

E = (r/R)³Q/(4πε₀r²)

Simplifying, we get:

E = Q/(4πε₀R³)r

This shows that the electric field inside the sphere is proportional to the distance r from the center.

Example 3: Electric Field of an Infinite Plane

Consider an infinite plane with a uniform surface charge density σ. To find the electric field on either side of the plane, we choose a Gaussian surface that is a cylindrical pillbox with its flat faces parallel to the plane.

The electric flux through the Gaussian surface is:

Φ = ∮_S E • dA = 2EA

where A is the area of the flat faces of the pillbox.

According to Gauss's Law, the charge enclosed within the Gaussian surface is:

Q_enc = σA

Thus, the electric flux is:

2EA = σA/ε₀

Solving for the electric field E:

E = σ/(2ε₀)

This shows that the electric field of an infinite plane is constant and independent of the distance from the plane.

Advanced Topics in Electric Flux

Beyond the basic applications, the Electric Flux Equation can be extended to more complex scenarios, such as:

Dielectric Materials: In the presence of dielectric materials, the Electric Flux Equation must account for the polarization of the material, which affects the electric field.
Time-Varying Fields: For time-varying electric fields, the Electric Flux Equation is modified to include the displacement current, as described by Maxwell's equations.
Multipole Expansions: The Electric Flux Equation can be used to derive multipole expansions, which describe the electric field of complex charge distributions in terms of monopole, dipole, quadrupole, and higher-order moments.

📝 Note: Advanced topics in electric flux often require a deeper understanding of vector calculus and electromagnetism.

Summary of Key Points

In this exploration of the Electric Flux Equation, we have covered the following key points:

The definition of electric flux and its mathematical representation.
The relationship between electric flux and Gauss's Law.
Applications of the Electric Flux Equation in various fields.
Steps to solve problems using the Electric Flux Equation.
Examples illustrating the use of the Electric Flux Equation in different scenarios.
Advanced topics and extensions of the Electric Flux Equation.

Understanding the Electric Flux Equation is essential for anyone studying electromagnetism, as it provides a powerful tool for analyzing electric fields and their interactions with surfaces and volumes. By mastering this equation, one can gain deep insights into the behavior of electric fields in a wide range of physical systems.

In conclusion, the Electric Flux Equation is a fundamental concept in electromagnetism that has wide-ranging applications. From calculating electric fields to designing capacitors and analyzing dielectric materials, this equation is a cornerstone of modern physics and engineering. By understanding and applying the Electric Flux Equation, one can solve complex problems and gain a deeper understanding of the behavior of electric fields in various scenarios. The examples and applications discussed here illustrate the versatility and power of this equation, making it an essential tool for anyone studying or working in the field of electromagnetism.
