Ecg Vt Vs Vf

Electrocardiogram (ECG) monitoring is a critical tool in cardiology, providing valuable insights into the electrical activity of the heart. Among the various abnormalities that can be detected through ECG, ventricular tachycardia (VT) and ventricular fibrillation (VF) are two of the most serious and life-threatening conditions. Understanding the differences between ECG VT vs VF is essential for accurate diagnosis and timely intervention.

Table of Contents

Understanding Ventricular Tachycardia (VT)

Ventricular tachycardia (VT) is a type of abnormal heart rhythm that originates in the ventricles of the heart. It is characterized by a rapid heart rate, typically exceeding 100 beats per minute, and can be life-threatening if not treated promptly. VT can be further classified into different types based on its morphology and underlying cause.

Types of Ventricular Tachycardia

VT can be categorized into several types, including:

Monomorphic VT: This type of VT has a consistent QRS complex morphology and is often associated with structural heart disease.
Polymorphic VT: This type of VT has varying QRS complex morphologies and can be further divided into torsades de pointes and non-torsades de pointes.
Sustained VT: This type of VT lasts for more than 30 seconds or requires intervention to terminate.
Non-sustained VT: This type of VT lasts for less than 30 seconds and terminates spontaneously.

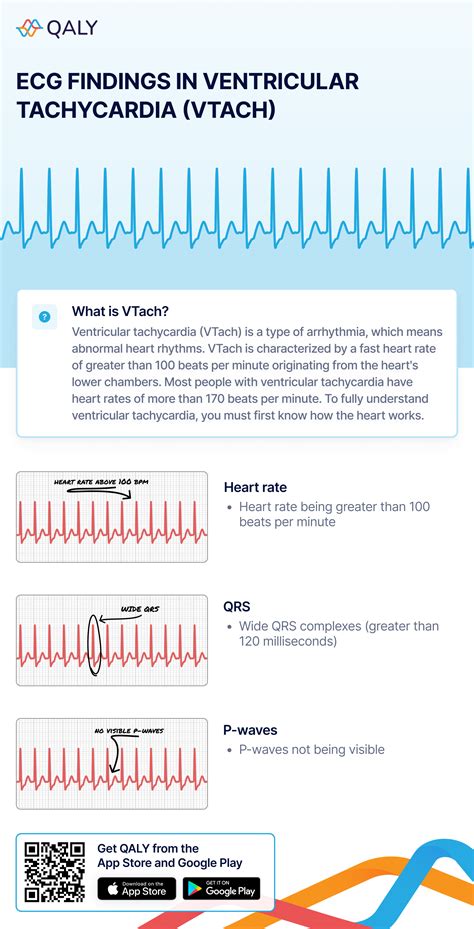

ECG Characteristics of VT

The ECG characteristics of VT include:

Rapid heart rate, typically greater than 100 beats per minute.
Wide QRS complexes, usually greater than 0.12 seconds.
Absence of P waves, indicating that the atrial activity is not contributing to the rhythm.
Regular or irregular rhythm, depending on the type of VT.

Understanding Ventricular Fibrillation (VF)

Ventricular fibrillation (VF) is a chaotic and disorganized electrical activity in the ventricles, leading to ineffective cardiac contractions. VF is a medical emergency and requires immediate intervention, as it can quickly lead to cardiac arrest and death if not treated promptly. Unlike VT, VF does not produce a measurable heart rate or rhythm.

ECG Characteristics of VF

The ECG characteristics of VF include:

Irregular and chaotic electrical activity, with no discernible QRS complexes or P waves.
Absence of a measurable heart rate.
Fine or coarse VF, depending on the amplitude of the electrical activity.

Differences Between VT and VF

While both VT and VF are serious cardiac arrhythmias, there are key differences between the two that are crucial for accurate diagnosis and treatment. The following table highlights the main differences between ECG VT vs VF:

Characteristic	Ventricular Tachycardia (VT)	Ventricular Fibrillation (VF)
Heart Rate	Rapid, typically greater than 100 beats per minute	No measurable heart rate
QRS Complexes	Wide, usually greater than 0.12 seconds	No discernible QRS complexes
P Waves	Absent	Absent
Rhythm	Regular or irregular	Chaotic and disorganized
Treatment	Antiarrhythmic drugs, cardioversion, or catheter ablation	Immediate defibrillation

Diagnosing VT and VF

Accurate diagnosis of VT and VF is crucial for appropriate treatment. The diagnosis is primarily based on the ECG findings, but additional tests may be required to determine the underlying cause and guide treatment decisions.

ECG Interpretation

ECG interpretation is the cornerstone of diagnosing VT and VF. The following steps are essential for accurate ECG interpretation:

Assess the heart rate and rhythm.
Evaluate the QRS complex morphology and duration.
Look for the presence or absence of P waves.
Identify any underlying heart conditions or abnormalities.

🔍 Note: In cases where the ECG findings are unclear, additional tests such as echocardiography, cardiac magnetic resonance imaging (MRI), or electrophysiological studies may be required to confirm the diagnosis.

Differential Diagnosis

Differentiating VT from other wide-complex tachycardias, such as supraventricular tachycardia (SVT) with aberrancy, is crucial for appropriate management. The following criteria can help distinguish VT from SVT with aberrancy:

Presence of fusion beats or capture beats, which are more common in VT.
QRS morphology criteria, such as Brugada criteria or Vereckei criteria, which can help differentiate VT from SVT with aberrancy.
Response to adenosine or other antiarrhythmic drugs, which can help unmask the underlying rhythm.

Treatment of VT and VF

The treatment of VT and VF depends on the underlying cause, the patient's hemodynamic stability, and the specific type of arrhythmia. Immediate intervention is crucial for both conditions to prevent cardiac arrest and death.

Treatment of VT

The treatment of VT may include:

Antiarrhythmic drugs, such as amiodarone, lidocaine, or procainamide, to terminate the arrhythmia.
Cardioversion, which involves delivering an electrical shock to the heart to restore a normal rhythm.
Catheter ablation, a minimally invasive procedure to destroy the abnormal electrical pathways in the heart.
Implantable cardioverter-defibrillator (ICD), a device that can detect and treat life-threatening arrhythmias.

Treatment of VF

The treatment of VF is primarily focused on immediate defibrillation to restore a normal heart rhythm. The following steps are essential for the management of VF:

Immediate defibrillation using an automated external defibrillator (AED) or manual defibrillator.
Cardiopulmonary resuscitation (CPR) to maintain circulation and oxygenation.
Administration of antiarrhythmic drugs, such as amiodarone or lidocaine, to stabilize the heart rhythm.
Advanced cardiac life support (ACLS) protocols to guide resuscitation efforts.

⚠️ Note: In cases of VF, immediate defibrillation is the most effective treatment. Every minute delay in defibrillation reduces the chances of survival by 7-10%.

Prevention of VT and VF

Preventing VT and VF involves addressing the underlying risk factors and implementing appropriate management strategies. The following measures can help reduce the risk of these life-threatening arrhythmias:

Managing underlying heart conditions, such as coronary artery disease, heart failure, or cardiomyopathy.
Avoiding triggers, such as excessive caffeine, alcohol, or stress.
Maintaining a healthy lifestyle, including regular exercise, a balanced diet, and avoiding smoking.
Regular follow-up with a healthcare provider to monitor heart health and adjust medications as needed.

In patients with a history of VT or VF, the following preventive measures may be recommended:

Implantable cardioverter-defibrillator (ICD) to detect and treat life-threatening arrhythmias.
Antiarrhythmic drugs to prevent recurrent arrhythmias.
Catheter ablation to eliminate abnormal electrical pathways.

Understanding the differences between ECG VT vs VF is essential for accurate diagnosis and timely intervention. Both conditions are serious and require immediate medical attention. By recognizing the key ECG characteristics and implementing appropriate treatment strategies, healthcare providers can improve outcomes and save lives.

In summary, VT and VF are life-threatening arrhythmias that require prompt recognition and treatment. While VT is characterized by a rapid heart rate and wide QRS complexes, VF is a chaotic and disorganized electrical activity with no measurable heart rate. Accurate diagnosis through ECG interpretation and appropriate treatment, including antiarrhythmic drugs, cardioversion, and defibrillation, are crucial for managing these conditions. Preventive measures, such as managing underlying heart conditions and maintaining a healthy lifestyle, can help reduce the risk of VT and VF. Early intervention and appropriate management can significantly improve outcomes and save lives.
