The Dynamic Cone Penetration Test (DCPT) is a crucial method used in geotechnical engineering to assess the strength and bearing capacity of soils. This test is particularly valuable for understanding the properties of cohesive and granular soils, making it an essential tool for various construction and engineering projects. The DCPT involves driving a cone into the soil at a controlled rate and measuring the resistance encountered. This data is then used to determine the soil's strength and other critical parameters.
Understanding the Dynamic Cone Penetration Test
The Dynamic Cone Penetration Test is a field test that provides valuable insights into the soil's mechanical properties. It is widely used in geotechnical investigations to evaluate the soil's bearing capacity, which is crucial for designing foundations, roads, and other structures. The test involves driving a cone into the soil using a dynamic force, typically generated by a hammer, and measuring the penetration depth and resistance.
Equipment and Setup
The equipment required for a Dynamic Cone Penetration Test includes:

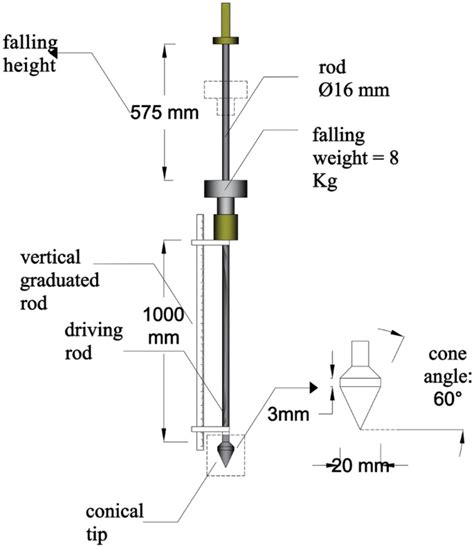

- A dynamic cone penetrometer, which consists of a cone tip, a rod, and a hammer.
- A measuring device to record the penetration depth.
- A hammer or other dynamic force generator.
- Supporting equipment such as a tripod or stand to hold the penetrometer in place.
The setup involves placing the cone penetrometer on the soil surface and ensuring it is vertical. The hammer is then used to drive the cone into the soil at a controlled rate. The penetration depth and the number of blows required to achieve a specific depth are recorded.
Procedure for Conducting a Dynamic Cone Penetration Test
The procedure for conducting a Dynamic Cone Penetration Test involves several steps:
- Site Preparation: Clear the test area of any debris and ensure a flat surface.
- Equipment Setup: Assemble the dynamic cone penetrometer and place it vertically on the soil surface. Secure it with a tripod or stand.
- Initial Penetration: Use the hammer to drive the cone into the soil. Record the number of blows required to achieve a specific penetration depth, typically 100 mm.
- Continuous Penetration: Continue driving the cone into the soil, recording the penetration depth and the number of blows at regular intervals.
- Data Collection: Collect data on the penetration depth and the number of blows required for each interval. This data is used to calculate the soil's resistance and bearing capacity.
- Analysis: Analyze the collected data to determine the soil's strength and other mechanical properties. This involves plotting the penetration depth against the number of blows and interpreting the results.
📝 Note: Ensure that the penetrometer is kept vertical throughout the test to avoid inaccuracies in the measurements.
Interpreting the Results
The results of a Dynamic Cone Penetration Test are interpreted to determine the soil's bearing capacity and strength. The key parameters measured during the test include:
- Penetration Depth: The depth to which the cone penetrates the soil.
- Number of Blows: The number of hammer blows required to achieve a specific penetration depth.
- Resistance: The resistance encountered by the cone as it penetrates the soil.
The data collected is used to calculate the soil's bearing capacity, which is a critical parameter for designing foundations and other structures. The bearing capacity is determined by analyzing the penetration depth and the number of blows required to achieve that depth. The resistance encountered by the cone is also used to assess the soil's strength and other mechanical properties.
Applications of the Dynamic Cone Penetration Test
The Dynamic Cone Penetration Test has numerous applications in geotechnical engineering and construction. Some of the key applications include:
- Foundation Design: Assessing the soil's bearing capacity to design foundations for buildings, bridges, and other structures.
- Road Construction: Evaluating the soil's strength and stability for designing and constructing roads and highways.
- Earth Retaining Structures: Assessing the soil's properties for designing earth retaining structures such as walls and slopes.
- Site Investigation: Conducting site investigations to understand the soil's properties and identify potential issues.
The Dynamic Cone Penetration Test is particularly useful for evaluating the properties of cohesive and granular soils. It provides valuable insights into the soil's strength and bearing capacity, making it an essential tool for various construction and engineering projects.
Advantages and Limitations
The Dynamic Cone Penetration Test offers several advantages, including:
- Cost-Effective: The test is relatively inexpensive compared to other geotechnical tests.
- Quick Results: The test can be completed quickly, providing immediate results.
- Field Test: The test can be conducted in the field, making it convenient for site investigations.
- Versatile: The test can be used to evaluate a wide range of soil types.
However, the test also has some limitations, such as:
- Depth Limitations: The test is limited to shallow depths, typically up to 2 meters.
- Soil Variability: The test results can be affected by soil variability and heterogeneity.
- Operator Dependence: The accuracy of the test results can depend on the operator's skill and experience.
The Dynamic Cone Penetration Test is a valuable tool for geotechnical engineers, but it should be used in conjunction with other tests and methods to obtain a comprehensive understanding of the soil's properties.
Comparison with Other Penetration Tests
The Dynamic Cone Penetration Test is one of several penetration tests used in geotechnical engineering. Other commonly used tests include the Standard Penetration Test (SPT) and the Cone Penetration Test (CPT). Each test has its advantages and limitations, and the choice of test depends on the specific requirements of the project.
| Test | Description | Advantages | Limitations |
|---|---|---|---|
| Dynamic Cone Penetration Test (DCPT) | A field test that involves driving a cone into the soil using a dynamic force and measuring the penetration depth and resistance. | Cost-effective, quick results, field test, versatile. | Depth limitations, soil variability, operator dependence. |
| Standard Penetration Test (SPT) | A field test that involves driving a split-spoon sampler into the soil and measuring the number of blows required to achieve a specific penetration depth. | Widely accepted, provides empirical correlations, suitable for various soil types. | Time-consuming, affected by soil variability, operator dependence. |
| Cone Penetration Test (CPT) | A field test that involves pushing a cone into the soil at a constant rate and measuring the resistance and friction. | Continuous profiling, high resolution, suitable for soft soils. | Expensive, limited to shallow depths, affected by soil variability. |
The choice of test depends on the specific requirements of the project, including the soil type, depth of investigation, and the desired level of detail. The Dynamic Cone Penetration Test is particularly useful for evaluating the properties of cohesive and granular soils and providing quick, cost-effective results.
📝 Note: Always consider the specific requirements of the project and consult with a geotechnical engineer to determine the most appropriate test.
In conclusion, the Dynamic Cone Penetration Test is a valuable tool in geotechnical engineering for assessing the strength and bearing capacity of soils. It provides quick, cost-effective results and is particularly useful for evaluating the properties of cohesive and granular soils. However, it should be used in conjunction with other tests and methods to obtain a comprehensive understanding of the soil’s properties. The test has numerous applications in foundation design, road construction, earth retaining structures, and site investigations, making it an essential tool for various construction and engineering projects. By understanding the advantages and limitations of the Dynamic Cone Penetration Test, engineers can make informed decisions and ensure the success of their projects.
