Dry Sump Oil System

In the world of high-performance engines, the Dry Sump Oil System stands out as a critical component for ensuring optimal lubrication and engine longevity. This system is particularly favored in racing and high-performance vehicles due to its ability to handle extreme conditions and maintain consistent oil pressure. Understanding the intricacies of a Dry Sump Oil System can provide valuable insights into how it enhances engine performance and reliability.

What is a Dry Sump Oil System?

A Dry Sump Oil System is a type of lubrication system designed to separate the oil reservoir from the engine block. Unlike a wet sump system, where the oil is stored in a pan attached to the engine block, a dry sump system uses an external oil tank. This design offers several advantages, particularly in high-performance applications.

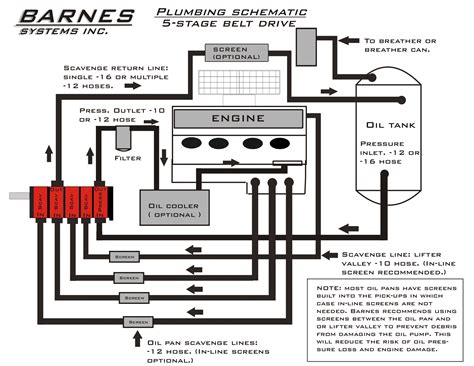

How Does a Dry Sump Oil System Work?

The operation of a Dry Sump Oil System involves several key components:

Oil Pump: The primary pump that draws oil from the external tank and delivers it to the engine.
Scavenge Pump: This pump collects oil from the engine and returns it to the external tank.
External Oil Tank: Stores the oil and ensures a consistent supply to the engine.
Oil Filter: Cleans the oil before it is circulated back into the engine.
Oil Cooler: Regulates the oil temperature to maintain optimal performance.

The process begins with the oil pump drawing oil from the external tank and delivering it to the engine’s bearings, pistons, and other moving parts. The scavenger pump then collects the used oil from the engine and returns it to the external tank. This continuous cycle ensures that the engine is always supplied with clean, cool oil, even under extreme conditions.

Advantages of a Dry Sump Oil System

A Dry Sump Oil System offers several advantages over traditional wet sump systems, especially in high-performance and racing applications:

Improved Oil Pressure: The external tank ensures a consistent supply of oil, maintaining optimal pressure even during high-G maneuvers.
Enhanced Cooling: The external tank allows for better heat dissipation, keeping the oil at an optimal temperature.
Reduced Oil Aeration: By separating the oil reservoir from the engine, the system minimizes the risk of oil aeration, which can lead to reduced lubrication efficiency.
Increased Engine Longevity: Consistent oil pressure and reduced aeration contribute to longer engine life.
Better Handling in Extreme Conditions: The system’s design allows it to handle the extreme conditions of racing and high-performance driving.

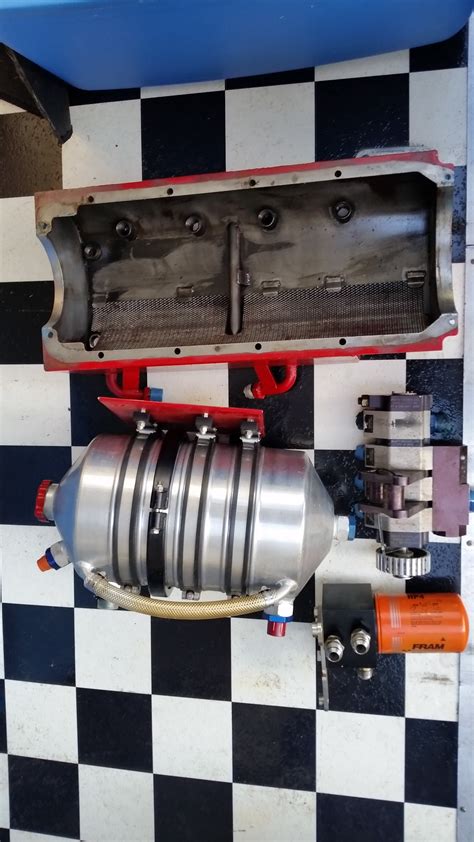

Components of a Dry Sump Oil System

The Dry Sump Oil System comprises several essential components that work together to ensure optimal engine performance. Understanding these components is crucial for maintaining and troubleshooting the system.

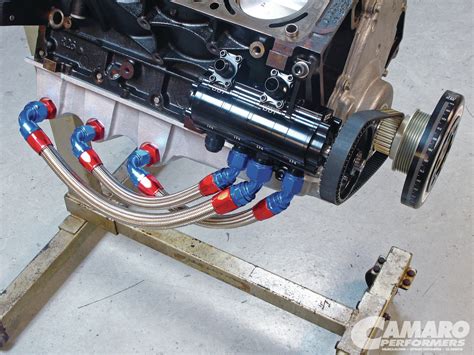

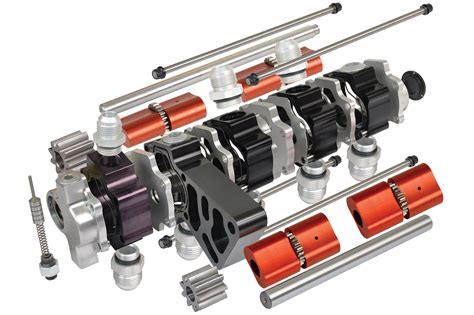

Oil Pump

The oil pump is the heart of the Dry Sump Oil System. It is responsible for drawing oil from the external tank and delivering it to the engine’s various components. The pump must be robust and reliable to handle the high demands of a high-performance engine.

Scavenge Pump

The scavenger pump plays a critical role in collecting used oil from the engine and returning it to the external tank. This pump ensures that the engine is always supplied with clean oil, reducing the risk of contamination and wear.

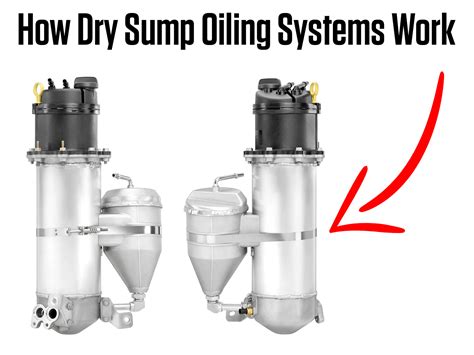

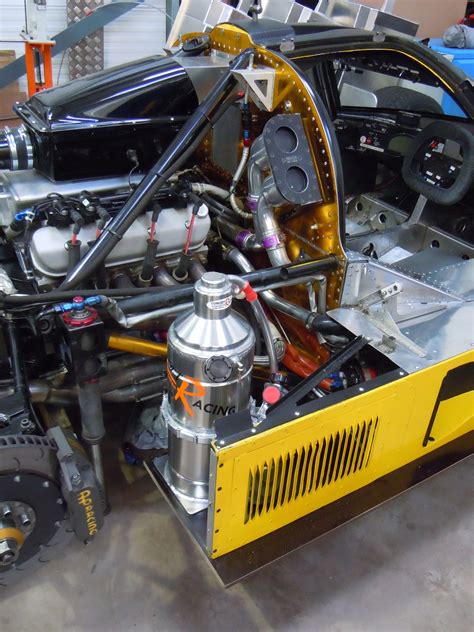

External Oil Tank

The external oil tank stores the oil and provides a consistent supply to the engine. It is designed to dissipate heat effectively, keeping the oil at an optimal temperature. The tank’s capacity and design can vary depending on the specific requirements of the engine.

Oil Filter

The oil filter is essential for removing contaminants from the oil before it is circulated back into the engine. A clean oil filter ensures that the engine receives clean oil, reducing the risk of wear and tear.

Oil Cooler

The oil cooler regulates the oil temperature, ensuring that it remains within the optimal range for engine performance. Overheating can degrade the oil’s lubricating properties, leading to increased wear and potential engine failure.

Installation and Maintenance of a Dry Sump Oil System

Installing and maintaining a Dry Sump Oil System requires careful attention to detail. Proper installation ensures optimal performance, while regular maintenance extends the system’s lifespan.

Installation Steps

Installing a Dry Sump Oil System involves several steps:

Prepare the engine by removing the existing wet sump system components.
Install the oil pump and scavenger pump according to the manufacturer’s instructions.
Mount the external oil tank in a suitable location, ensuring it is securely fastened.
Connect the oil lines between the engine, oil pump, scavenger pump, and external tank.
Install the oil filter and oil cooler, ensuring they are properly secured.
Fill the external tank with the recommended type and amount of oil.
Start the engine and check for any leaks or issues.

🛠️ Note: Always refer to the manufacturer’s guidelines for specific installation instructions and safety precautions.

Maintenance Tips

Regular maintenance is essential for keeping a Dry Sump Oil System in optimal condition. Key maintenance tasks include:

Regularly check the oil level in the external tank and top it up as needed.
Inspect the oil filter and replace it according to the manufacturer’s recommendations.
Monitor the oil temperature and ensure the oil cooler is functioning properly.
Check for any leaks or signs of wear in the oil lines and components.
Perform periodic oil changes to maintain the oil’s lubricating properties.

🛠️ Note: Always use high-quality oil and filters recommended by the manufacturer.

Common Issues and Troubleshooting

Despite its advantages, a Dry Sump Oil System can encounter issues that require troubleshooting. Understanding common problems and their solutions can help maintain the system’s performance.

Low Oil Pressure

Low oil pressure can indicate several issues, including:

Clogged oil filter.
Faulty oil pump.
Leaks in the oil lines.
Insufficient oil level in the external tank.

To troubleshoot low oil pressure, check the oil filter, oil pump, oil lines, and oil level. Replace or repair any faulty components as needed.

Overheating

Overheating can be caused by:

A malfunctioning oil cooler.
Insufficient oil flow.
High ambient temperatures.

To address overheating, inspect the oil cooler, ensure proper oil flow, and consider additional cooling solutions if necessary.

Oil Leaks

Oil leaks can occur due to:

Loose or damaged oil lines.
Faulty seals or gaskets.
Cracks in the external tank.

To fix oil leaks, tighten or replace damaged oil lines, seals, or gaskets, and repair any cracks in the external tank.

Dry Sump Oil System vs. Wet Sump Oil System

Choosing between a Dry Sump Oil System and a Wet Sump Oil System depends on the specific requirements of the engine and the intended use. Here is a comparison of the two systems:

Feature	Dry Sump Oil System	Wet Sump Oil System
Oil Reservoir	External tank	Pan attached to the engine block
Oil Pressure	Consistent, even under extreme conditions	Can fluctuate under high-G maneuvers
Cooling	Better heat dissipation	Limited cooling capacity
Aeration	Reduced risk	Higher risk of oil aeration
Maintenance	Requires regular checks and maintenance	Generally easier to maintain
Cost	More expensive	Less expensive

While a Dry Sump Oil System offers several advantages, it is generally more complex and expensive than a Wet Sump Oil System. The choice between the two depends on the specific needs and budget of the engine owner.

Applications of Dry Sump Oil Systems

Dry Sump Oil Systems are widely used in various high-performance applications, including:

Racing Cars: The system’s ability to maintain consistent oil pressure and reduce aeration makes it ideal for racing cars, where extreme conditions are common.
High-Performance Vehicles: Luxury and high-performance vehicles often use Dry Sump Oil Systems to ensure optimal engine performance and longevity.

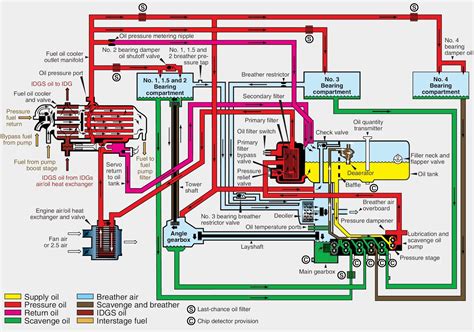

Aircraft Engines: The system’s design makes it suitable for aircraft engines, where reliability and performance are critical.
Marine Engines: Dry Sump Oil Systems are used in marine engines to handle the unique challenges of water-based environments.

Future Trends in Dry Sump Oil Systems

The technology behind Dry Sump Oil Systems continues to evolve, driven by the demand for higher performance and efficiency. Some emerging trends include:

Advanced Materials: The use of lightweight and durable materials for oil tanks and components.
Electronic Controls: Integration of electronic controls for monitoring and adjusting oil pressure and temperature.
Improved Cooling Solutions: Development of more efficient oil coolers to handle higher engine temperatures.
Enhanced Filtration: Advanced filtration systems to remove even the smallest contaminants from the oil.

These advancements are expected to further enhance the performance and reliability of Dry Sump Oil Systems, making them even more attractive for high-performance applications.

In conclusion, the Dry Sump Oil System is a critical component in high-performance engines, offering numerous advantages over traditional wet sump systems. Its ability to maintain consistent oil pressure, reduce aeration, and enhance cooling makes it ideal for racing and high-performance vehicles. Understanding the components, installation, maintenance, and troubleshooting of a Dry Sump Oil System is essential for ensuring optimal engine performance and longevity. As technology continues to advance, Dry Sump Oil Systems are poised to become even more efficient and reliable, further solidifying their place in the world of high-performance engines.
