Drilling Through Concrete

Drilling through concrete is a common task in construction, renovation, and DIY projects. Whether you're installing anchors, running cables, or creating openings for plumbing, understanding the process and best practices is crucial for a successful outcome. This guide will walk you through the essential steps and considerations for drilling through concrete effectively.

Understanding Concrete and Drilling Basics

Concrete is a composite material made from cement, aggregates, and water. Its strength and durability make it a popular choice for construction, but these same properties also make it challenging to drill through. Before you start, it's important to understand the type of concrete you're dealing with and the tools required for the job.

Types of Concrete

Concrete can vary in composition and strength. Common types include:

Normal Concrete: Typically used in residential and commercial buildings, with a compressive strength ranging from 2,500 to 5,000 psi.
High-Strength Concrete: Used in structures requiring greater strength, such as bridges and high-rise buildings, with compressive strength exceeding 6,000 psi.
Lightweight Concrete: Contains lightweight aggregates and is used for insulation and reducing the overall weight of a structure.

Tools for Drilling Through Concrete

Selecting the right tools is essential for efficient and safe drilling through concrete. The primary tools you'll need include:

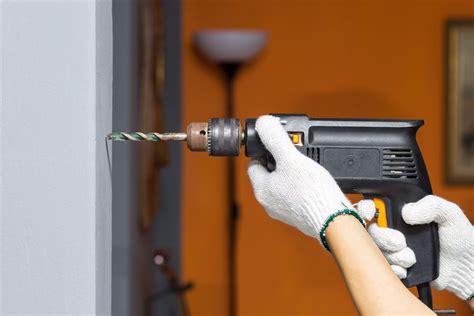

Hammer Drill: A powerful drill designed to handle the impact and vibration of drilling through hard materials like concrete.
Rotary Hammer Drill: Similar to a hammer drill but more powerful, with a piston mechanism that delivers more impact force.
Concrete Drill Bits: Specialized bits designed to cut through concrete. Common types include:

SDS (Special Direct System) Bits: Designed for use with rotary hammer drills, these bits have a unique shank that locks into the drill chuck for better stability and power transfer.
Carbide-Tipped Bits: These bits have a carbide tip that is highly resistant to wear and can cut through concrete more efficiently.

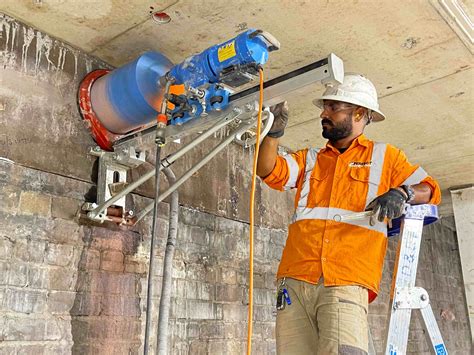

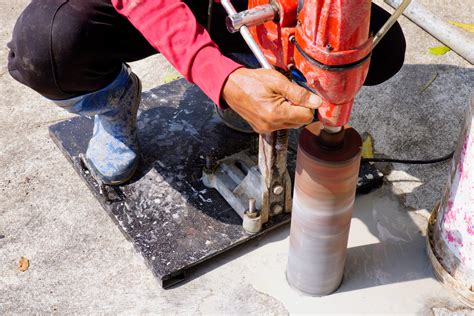

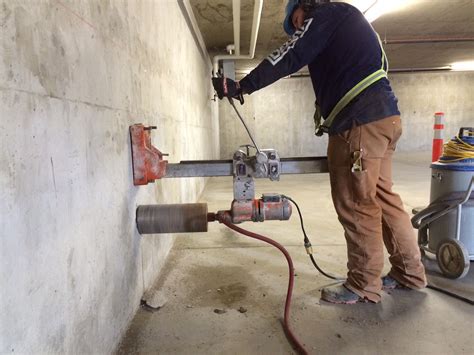

Diamond Core Bits: Used for creating large holes, these bits have a diamond-tipped edge that can cut through concrete smoothly.

Preparing for Drilling Through Concrete

Proper preparation is key to a successful drilling project. This includes gathering the necessary tools, selecting the right drill bits, and ensuring safety measures are in place.

Gathering Tools and Materials

Before you start drilling, make sure you have the following:

Hammer drill or rotary hammer drill
Appropriate drill bits (SDS, carbide-tipped, or diamond core)
Safety glasses
Ear protection
Dust mask
Work gloves
Chalk or marker for marking the drilling spot
Tape measure
Level (if necessary)
Vacuum or broom for cleaning debris

Selecting the Right Drill Bit

The type of drill bit you choose depends on the size and depth of the hole you need to create. Here are some guidelines:

Small Holes (up to 1/2 inch): Use carbide-tipped bits for general-purpose drilling.
Medium Holes (1/2 inch to 1 inch): SDS bits are ideal for this range, providing good stability and power transfer.
Large Holes (over 1 inch): Diamond core bits are best for creating large, precise holes.

Safety Precautions

Drilling through concrete can generate a lot of dust and noise, so it's important to take the following safety precautions:

Wear safety glasses to protect your eyes from debris.
Use ear protection to reduce noise levels.
Wear a dust mask to avoid inhaling concrete dust.
Use work gloves to protect your hands.
Ensure the area is well-ventilated.

Drilling Through Concrete: Step-by-Step Guide

Now that you're prepared, follow these steps to drill through concrete effectively.

Marking the Drilling Spot

Use a chalk or marker to clearly mark the spot where you need to drill. Ensure the mark is visible and accurate. If you need to drill multiple holes, use a tape measure and level to ensure they are evenly spaced and aligned.

Setting Up the Drill

Insert the appropriate drill bit into the drill chuck and tighten it securely. For SDS bits, ensure the bit is fully engaged in the chuck. Set the drill to the hammer mode, which combines rotation and impact to break through the concrete.

Starting the Drill

Position the drill bit perpendicular to the concrete surface. Apply gentle pressure and start the drill. Allow the drill to do the work; avoid applying too much force, as this can cause the bit to wander or break.

Drilling the Hole

As you drill, keep the bit perpendicular to the surface and maintain a steady, even pressure. For deeper holes, periodically withdraw the bit to clear debris and cool the bit. Use a vacuum or broom to clean the area as needed.

🛠️ Note: If you encounter rebar or other reinforcements, stop drilling immediately and reassess the location. Drilling through rebar can damage the bit and potentially cause injury.

Finishing the Hole

Once you've reached the desired depth, turn off the drill and withdraw the bit. Use a brush or vacuum to clean the hole and remove any debris. If necessary, use a chisel and hammer to break away any remaining concrete.

Special Considerations for Drilling Through Concrete

Certain situations may require additional considerations when drilling through concrete. Understanding these factors can help you achieve better results and avoid potential issues.

Drilling Near Edges or Corners

When drilling near edges or corners, be extra cautious to avoid cracking or chipping the concrete. Use a smaller bit and apply less pressure to minimize the risk of damage.

Drilling Through Reinforced Concrete

Reinforced concrete contains steel bars (rebar) that add strength and stability. Drilling through rebar can damage the bit and potentially cause injury. Use a metal detector to locate rebar before drilling, and adjust your drilling plan accordingly.

Drilling in Confined Spaces

Drilling in confined spaces can be challenging due to limited ventilation and movement. Ensure the area is well-ventilated and use appropriate safety gear. Consider using a smaller drill or a drill with a shorter bit to navigate tight spaces more easily.

Maintaining Your Drilling Equipment

Proper maintenance of your drilling equipment is essential for ensuring its longevity and performance. Regularly inspect and clean your drill and bits to keep them in good working condition.

Cleaning the Drill

After each use, clean the drill to remove dust and debris. Use a brush or compressed air to clean the chuck and other moving parts. Wipe down the drill with a damp cloth and dry it thoroughly.

Inspecting the Drill Bits

Inspect the drill bits for signs of wear or damage. Replace any bits that are dull, chipped, or cracked. Store the bits in a dry, protected area to prevent rust and damage.

Lubricating the Drill

Regularly lubricate the drill's moving parts to ensure smooth operation. Use a light oil or lubricant recommended by the manufacturer. Avoid over-lubricating, as this can attract dust and debris.

🛠️ Note: Always follow the manufacturer's guidelines for maintaining your specific drill model. Proper maintenance can extend the life of your equipment and ensure optimal performance.

Common Mistakes to Avoid When Drilling Through Concrete

Drilling through concrete can be challenging, and there are several common mistakes to avoid. Being aware of these pitfalls can help you achieve better results and prevent potential issues.

Using the Wrong Drill Bit

Using the wrong type or size of drill bit can lead to inefficient drilling, excessive wear on the bit, and potential damage to the concrete. Always select the appropriate bit for the job.

Applying Too Much Pressure
Applying too much pressure can cause the bit to wander or break, leading to inaccurate holes and potential damage to the concrete. Allow the drill to do the work and maintain a steady, even pressure.

Ignoring Safety Precautions
Drilling through concrete generates a lot of dust and noise, so it's important to take the necessary safety precautions. Always wear appropriate safety gear and ensure the area is well-ventilated.

Not Clearing Debris
Failing to clear debris as you drill can slow down the process and cause the bit to overheat. Periodically withdraw the bit to clear debris and cool the bit.

Drilling Through Rebar
Drilling through rebar can damage the bit and potentially cause injury. Use a metal detector to locate rebar before drilling, and adjust your drilling plan accordingly.

Conclusion

Drilling through concrete is a common task in many construction and DIY projects. By understanding the types of concrete, selecting the right tools, and following proper safety precautions, you can achieve successful results. Whether you’re installing anchors, running cables, or creating openings for plumbing, this guide provides the essential steps and considerations for drilling through concrete effectively. Always prioritize safety and maintain your equipment to ensure optimal performance and longevity.
