Double Pole Switch

Electrical switches are essential components in any wiring system, enabling the control of electrical circuits. Among the various types of switches available, the Double Pole Switch stands out due to its unique functionality and versatility. This type of switch is designed to control two separate circuits simultaneously, making it ideal for applications where both the live and neutral wires need to be switched off. In this post, we will delve into the intricacies of the Double Pole Switch, its applications, installation process, and safety considerations.

Table of Contents

Understanding the Double Pole Switch

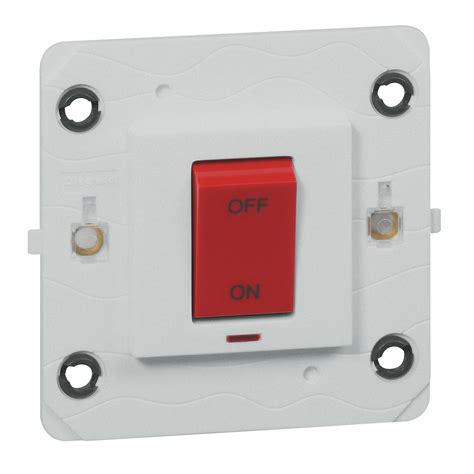

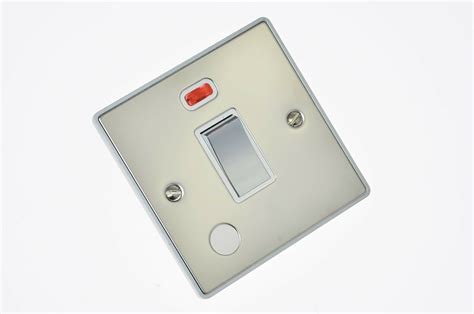

A Double Pole Switch is a type of electrical switch that controls two separate circuits. Unlike single-pole switches, which control only one circuit, double-pole switches are equipped with two sets of contacts. This design allows the switch to disconnect both the live and neutral wires, ensuring complete isolation of the circuit. This feature is particularly useful in scenarios where safety is paramount, such as in lighting circuits and appliance control.

Applications of Double Pole Switches

The versatility of Double Pole Switches makes them suitable for a wide range of applications. Some of the most common uses include:

Lighting Circuits: Double-pole switches are often used in lighting circuits to ensure that both the live and neutral wires are disconnected when the switch is turned off. This provides an additional layer of safety, especially in areas where moisture or humidity is present.
Appliance Control: For appliances that require both live and neutral wires to be switched off, such as water heaters or air conditioners, double-pole switches are the preferred choice. This ensures that the appliance is completely isolated from the power source when not in use.
Motor Control: In industrial settings, double-pole switches are used to control motors and other heavy-duty equipment. The ability to disconnect both wires ensures that the motor is safely shut down, preventing any potential hazards.
Safety Switches: Double-pole switches are also used as safety switches in various applications. For example, they can be installed in areas where electrical equipment is used near water, such as in bathrooms or kitchens, to minimize the risk of electrical shock.

Installing a Double Pole Switch

Installing a Double Pole Switch requires a basic understanding of electrical wiring and safety precautions. Here is a step-by-step guide to help you through the process:

Tools and Materials Needed

Double-pole switch
Screwdriver
Wire strippers
Wire nuts
Electrical tape
Voltage tester

Step-by-Step Installation

Before beginning the installation, ensure that the power to the circuit is turned off at the main breaker. Use a voltage tester to confirm that there is no live current in the wires.

Remove the Old Switch: Carefully remove the old switch from the wall box. Disconnect the wires and label them for easy identification.
Prepare the Wires: Strip about ½ inch of insulation from the ends of the wires using wire strippers. Ensure that the wires are clean and free of any damage.
Connect the Wires: Connect the wires to the terminals on the double-pole switch. Typically, the live wire (usually black) is connected to the brass terminal, and the neutral wire (usually white) is connected to the silver terminal. The ground wire (usually green or bare) should be connected to the green ground screw on the switch.
Secure the Switch: Place the switch back into the wall box and secure it with screws. Ensure that the switch is firmly in place and that all wires are properly connected.
Restore Power: Turn the power back on at the main breaker and test the switch to ensure it is functioning correctly.

🔧 Note: Always follow local electrical codes and regulations when installing electrical switches. If you are unsure about any aspect of the installation process, consult a licensed electrician.

Safety Considerations

When working with electrical switches, safety should always be the top priority. Here are some important safety considerations to keep in mind when installing or using a Double Pole Switch:

Turn Off Power: Always turn off the power to the circuit at the main breaker before beginning any electrical work. Use a voltage tester to confirm that there is no live current in the wires.
Use Proper Tools: Use insulated tools designed for electrical work to minimize the risk of electrical shock.
Follow Wiring Diagrams: Refer to the wiring diagram provided with the switch to ensure that the wires are connected correctly.
Avoid Overloading: Do not overload the switch by connecting too many devices or appliances to the circuit. This can cause the switch to overheat and potentially start a fire.
Regular Inspection: Regularly inspect the switch and wiring for any signs of damage or wear. Replace any damaged components immediately to ensure the safety of the circuit.

Troubleshooting Common Issues

Even with proper installation, issues can arise with Double Pole Switches. Here are some common problems and their solutions:

Switch Not Working

If the switch is not working, check the following:

Ensure that the power to the circuit is turned on at the main breaker.
Verify that the wires are properly connected to the switch.
Check for any loose or damaged wires.
Test the switch with a voltage tester to ensure it is functioning correctly.

Switch Stuck or Difficult to Operate

If the switch is stuck or difficult to operate, it may be due to:

Dirt or debris in the switch mechanism. Clean the switch with compressed air or a soft brush.
Worn-out contacts. Replace the switch with a new one.
Loose wiring. Tighten the connections and ensure that the wires are securely attached to the switch.

Switch Overheating

If the switch is overheating, it may be due to:

Overloading the circuit. Reduce the number of devices or appliances connected to the circuit.
Faulty wiring. Check for any damaged or loose wires and repair or replace them as necessary.
Inadequate ventilation. Ensure that the switch is properly ventilated to dissipate heat.

🔧 Note: If you are unsure about any aspect of troubleshooting or repairing a double-pole switch, consult a licensed electrician.

Comparing Double Pole Switches with Other Switch Types

To better understand the advantages of a Double Pole Switch, it is helpful to compare it with other types of switches commonly used in electrical systems.

Switch Type	Functionality	Applications	Safety Features
Single-Pole Switch	Controls one circuit	Lighting, small appliances	Basic isolation of the live wire
Double-Pole Switch	Controls two circuits	Lighting, appliances, motors	Complete isolation of both live and neutral wires
Three-Way Switch	Controls one circuit from two locations	Stairway lighting, hallways	Basic isolation of the live wire
Four-Way Switch	Controls one circuit from three or more locations	Long hallways, large rooms	Basic isolation of the live wire

As shown in the table, the Double Pole Switch offers unique advantages in terms of safety and versatility, making it a preferred choice for many applications.

Conclusion

The Double Pole Switch is a versatile and essential component in electrical wiring systems. Its ability to control two separate circuits simultaneously makes it ideal for applications where safety is paramount. Whether used in lighting circuits, appliance control, motor control, or as safety switches, double-pole switches provide an additional layer of protection by ensuring complete isolation of the circuit. By understanding the installation process, safety considerations, and troubleshooting common issues, you can effectively utilize double-pole switches in your electrical projects. Always prioritize safety and consult a licensed electrician if you are unsure about any aspect of the installation or maintenance process.
