Doorbell Installation Wiring

Installing a new doorbell can significantly enhance the security and convenience of your home. However, the process of doorbell installation wiring can be daunting for those who are not familiar with electrical work. This guide will walk you through the steps to install a wired doorbell, ensuring that you understand the process and can complete it safely and efficiently.

Table of Contents

Understanding the Basics of Doorbell Installation Wiring

Before diving into the installation process, it's crucial to understand the basics of doorbell wiring. Most wired doorbells operate on low-voltage systems, typically between 8 to 24 volts. This makes them relatively safe to work with compared to higher-voltage systems. However, it's still important to follow safety precautions to avoid any electrical hazards.

Doorbell systems generally consist of three main components:

The doorbell button (chime)
The doorbell transformer
The doorbell itself

The transformer reduces the household voltage (usually 120 volts) to the lower voltage required by the doorbell. The doorbell button completes the circuit when pressed, allowing the current to flow to the doorbell and triggering the chime.

Gathering the Necessary Tools and Materials

To ensure a smooth installation process, gather the following tools and materials before you begin:

Screwdriver (both flathead and Phillips)
Wire strippers
Wire cutters
Voltage tester
New doorbell
Doorbell transformer (if not already installed)
Doorbell button (chime)
Electrical tape
Wire nuts

Preparing for Installation

Before you start the doorbell installation wiring process, take the following preparatory steps:

Turn off the power to the area where you will be working. This can usually be done by flipping the circuit breaker that controls the doorbell circuit.
Test the doorbell button and chime to ensure they are not receiving power. Use a voltage tester to confirm that the wires are not live.
Remove the existing doorbell and chime if you are replacing them. This may involve unscrewing the devices from the wall and disconnecting the wires.

Installing the Doorbell Transformer

If your home does not already have a doorbell transformer, you will need to install one. The transformer is typically mounted near the main electrical panel or in a nearby junction box. Follow these steps to install the transformer:

Choose a location for the transformer that is easily accessible and near the main electrical panel.
Mount the transformer to the wall or junction box using screws.
Connect the transformer to the household wiring. This usually involves connecting the black wire to the hot wire (usually black) from the electrical panel and the white wire to the neutral wire (usually white).
Connect the low-voltage wires from the transformer to the doorbell button and chime. These wires are typically color-coded (e.g., red and green).

Ensure that the transformer is securely mounted and that all connections are tight. Double-check that the wires are properly insulated to prevent any short circuits.

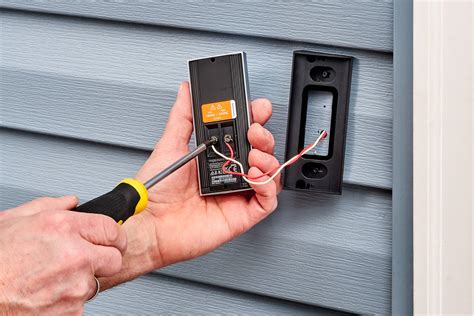

Wiring the Doorbell Button

The doorbell button, also known as the chime, is the component that triggers the doorbell when pressed. Follow these steps to wire the doorbell button:

Locate the existing doorbell button wires. These wires are usually hidden behind the wall and connected to the doorbell transformer.
Strip about ½ inch of insulation from the ends of the wires using wire strippers.
Connect the wires to the terminals on the new doorbell button. Typically, one wire will connect to the front terminal and the other to the back terminal.
Secure the doorbell button to the wall using screws.

Test the doorbell button by pressing it and listening for the chime. If the chime does not sound, double-check the wiring connections and ensure that the transformer is properly connected.

Installing the Doorbell

Now that the doorbell button is wired, it's time to install the doorbell itself. Follow these steps to complete the installation:

Locate the existing doorbell wires. These wires are usually hidden behind the wall and connected to the doorbell transformer.
Strip about ½ inch of insulation from the ends of the wires using wire strippers.
Connect the wires to the terminals on the new doorbell. Typically, one wire will connect to the front terminal and the other to the back terminal.
Secure the doorbell to the wall using screws.

Test the doorbell by pressing the doorbell button. If the doorbell does not chime, double-check the wiring connections and ensure that the transformer is properly connected.

🔧 Note: If you encounter any issues with the doorbell not working, use a voltage tester to check for continuity in the wires. This can help identify any breaks or loose connections.

Testing the Doorbell System

Once the doorbell installation wiring is complete, it's time to test the entire system to ensure everything is working correctly. Follow these steps to test the doorbell:

Turn on the power to the area where you installed the doorbell.
Press the doorbell button and listen for the chime.
Check the volume and clarity of the chime to ensure it is audible throughout your home.
Test the doorbell at different times of the day to ensure it works consistently.

If the doorbell system is not working as expected, double-check all wiring connections and ensure that the transformer is properly connected. Use a voltage tester to check for continuity in the wires and identify any potential issues.

Troubleshooting Common Issues

Even with careful installation, you may encounter some common issues with your doorbell system. Here are some troubleshooting tips to help you resolve these issues:

No Chime: If the doorbell does not chime when the button is pressed, check the wiring connections and ensure that the transformer is properly connected. Use a voltage tester to check for continuity in the wires.
Weak Chime: If the chime is weak or inaudible, check the volume settings on the doorbell and ensure that the wires are properly connected. You may also need to adjust the transformer settings to increase the voltage.
Intermittent Chime: If the chime is intermittent or only works sometimes, check for loose wiring connections and ensure that the wires are securely fastened. You may also need to replace any damaged wires.

If you continue to experience issues with your doorbell system, consider consulting a professional electrician for assistance.

🔧 Note: Always prioritize safety when working with electrical systems. If you are unsure about any aspect of the doorbell installation wiring process, consult a professional electrician to ensure the job is done correctly and safely.

Maintaining Your Doorbell System

Regular maintenance of your doorbell system can help ensure it continues to function properly over time. Here are some tips for maintaining your doorbell:

Inspect the wiring connections periodically to ensure they are secure and free of corrosion.
Clean the doorbell button and chime to remove any dust or debris that may affect their performance.
Test the doorbell system regularly to ensure it is working correctly.
Replace any damaged or worn-out components as needed.

By following these maintenance tips, you can extend the lifespan of your doorbell system and ensure it continues to provide reliable service.

Doorbell installation wiring can be a straightforward process if you follow the steps outlined in this guide. By understanding the basics of doorbell wiring, gathering the necessary tools and materials, and following safety precautions, you can successfully install a new doorbell and enhance the security and convenience of your home.

Remember to test the doorbell system thoroughly after installation and perform regular maintenance to ensure it continues to function properly. If you encounter any issues, don't hesitate to consult a professional electrician for assistance.

With a properly installed and maintained doorbell system, you can enjoy the peace of mind that comes with knowing your home is secure and that you won’t miss any visitors.
