Diverging Lens Ray Diagram

Understanding the behavior of light as it passes through different optical systems is fundamental in the field of optics. One of the most effective tools for visualizing and analyzing these behaviors is the Diverging Lens Ray Diagram. This diagram is crucial for students and professionals alike, as it helps in comprehending how light rays diverge when passing through a concave lens. By mastering the Diverging Lens Ray Diagram, one can predict the path of light and understand the formation of virtual images.

Table of Contents

Understanding Diverging Lenses

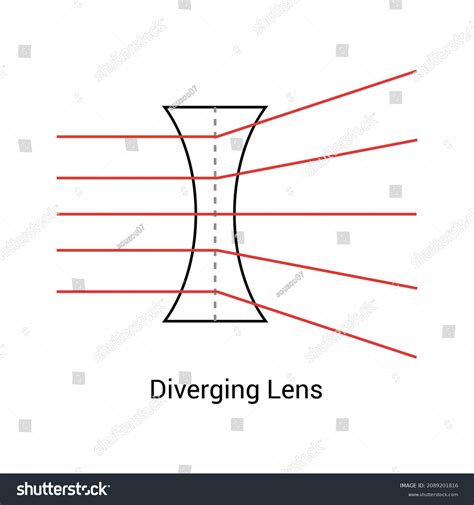

A diverging lens, also known as a concave lens, is a type of lens that causes parallel rays of light to diverge, or spread out, after passing through it. This divergence results in the formation of virtual images, which are upright and smaller than the object. The Diverging Lens Ray Diagram is a graphical representation that illustrates this phenomenon.

Key Concepts of Diverging Lens Ray Diagrams

To effectively use a Diverging Lens Ray Diagram, it is essential to understand several key concepts:

Principal Axis: The horizontal line passing through the center of the lens.
Focal Point: The point where parallel rays of light appear to diverge from after passing through the lens.
Optical Center: The point at the center of the lens where light rays pass through without deviation.

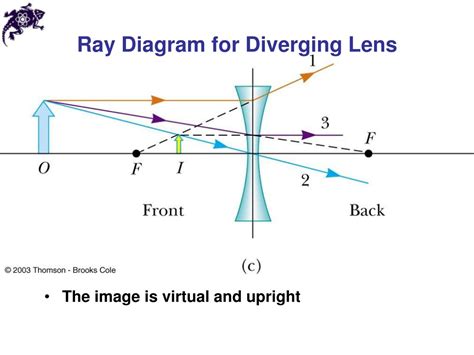

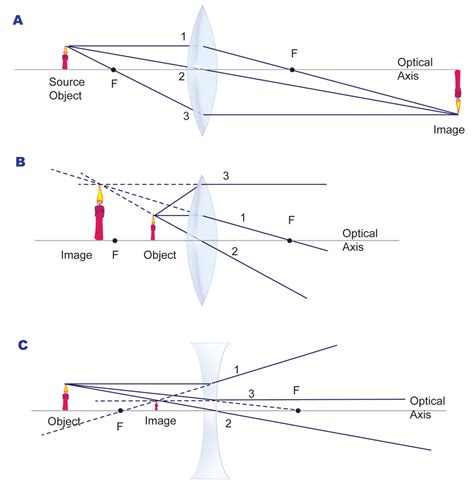

Ray 1: A ray parallel to the principal axis, which appears to diverge from the focal point after passing through the lens.
Ray 2: A ray passing through the optical center, which continues in a straight line.
Ray 3: A ray passing through the focal point on the way to the lens, which emerges parallel to the principal axis.

Constructing a Diverging Lens Ray Diagram

Constructing a Diverging Lens Ray Diagram involves several steps. Here is a detailed guide:

Draw the Lens: Begin by drawing the concave lens and labeling the principal axis, focal points, and optical center.
Draw the Object: Place an object (usually an arrow) on the principal axis to the left of the lens.
Draw Ray 1: Draw a ray parallel to the principal axis from the top of the object. Extend this ray until it intersects the lens, then draw it diverging from the focal point on the opposite side.
Draw Ray 2: Draw a ray from the top of the object through the optical center of the lens. This ray should continue in a straight line.
Draw Ray 3: Draw a ray from the top of the object through the focal point on the same side as the object. Extend this ray until it intersects the lens, then draw it parallel to the principal axis.
Locate the Image: The point where the diverging rays intersect on the same side as the object is the location of the virtual image. Draw the image at this point.

📝 Note: Ensure that the rays are accurately drawn to reflect the true behavior of light through a diverging lens. The image formed will always be upright and smaller than the object.

Analyzing the Diverging Lens Ray Diagram

Once the Diverging Lens Ray Diagram is constructed, it can be analyzed to determine various properties of the image formed. Key properties to consider include:

Image Location: The image is always located on the same side as the object and is virtual.
Image Orientation: The image is always upright.
Image Size: The image is always smaller than the object.

Applications of Diverging Lens Ray Diagrams

The Diverging Lens Ray Diagram has numerous applications in optics and related fields. Some of the key applications include:

Corrective Lenses: Diverging lenses are used in corrective eyeglasses to correct nearsightedness (myopia).
Camera Lenses: In some camera systems, diverging lenses are used to adjust the field of view.
Optical Instruments: Diverging lenses are used in various optical instruments to control the path of light.
Educational Tools: The Diverging Lens Ray Diagram is a valuable educational tool for teaching the principles of optics.

Common Misconceptions

There are several common misconceptions about diverging lenses and their ray diagrams. Addressing these misconceptions can help in a better understanding of the topic:

Real vs. Virtual Images: Unlike converging lenses, diverging lenses always form virtual images. This means the image cannot be projected onto a screen.
Image Size: The image formed by a diverging lens is always smaller than the object, regardless of the object’s distance from the lens.
Ray Behavior: The rays do not actually converge to a point; they only appear to diverge from a point behind the lens.

📝 Note: Understanding these misconceptions can help in accurately interpreting the Diverging Lens Ray Diagram and applying the principles of optics correctly.

Practical Examples

To further illustrate the use of the Diverging Lens Ray Diagram, consider the following practical examples:

Corrective Lenses for Myopia: A person with myopia (nearsightedness) has difficulty seeing distant objects clearly. A diverging lens is used to correct this by diverging the incoming light rays, allowing them to focus correctly on the retina.
Camera Lens Adjustments: In photography, diverging lenses can be used to adjust the field of view, making it wider and capturing more of the scene.

Advanced Topics

For those interested in delving deeper into the subject, advanced topics related to the Diverging Lens Ray Diagram include:

Thin Lens Formula: This formula relates the object distance, image distance, and focal length of a lens. It is particularly useful for calculating the properties of images formed by diverging lenses.
Lens Maker’s Formula: This formula is used to design lenses with specific optical properties, including diverging lenses.
Aberrations: Understanding the various types of aberrations that can occur in optical systems, including those involving diverging lenses, is crucial for designing high-quality optical instruments.

📝 Note: Advanced topics require a strong foundation in basic optics and mathematical skills.

Comparative Analysis

To better understand the Diverging Lens Ray Diagram, it is helpful to compare it with the Converging Lens Ray Diagram. Here is a comparative analysis:

Property	Diverging Lens	Converging Lens
Image Type	Virtual	Real or Virtual
Image Orientation	Upright	Inverted or Upright
Image Size	Smaller	Larger or Smaller
Ray Behavior	Diverge	Converge

📝 Note: The key difference lies in the behavior of the rays and the type of image formed.

Conclusion

The Diverging Lens Ray Diagram is an indispensable tool for understanding the behavior of light as it passes through a concave lens. By mastering the construction and analysis of this diagram, one can predict the path of light and understand the formation of virtual images. This knowledge is crucial for various applications in optics, including corrective lenses, camera systems, and optical instruments. Whether you are a student or a professional, a solid grasp of the Diverging Lens Ray Diagram will enhance your understanding of optics and its practical applications.
