Diode Bridge Rectifier

Electronics enthusiasts and professionals alike often encounter the need to convert alternating current (AC) to direct current (DC). This process is crucial for powering various devices that require a steady DC supply. One of the most efficient and widely used methods for this conversion is through the use of a Diode Bridge Rectifier. This component plays a pivotal role in ensuring that the electrical current flows in a single direction, thereby converting AC to DC. In this post, we will delve into the intricacies of the Diode Bridge Rectifier, its types, applications, and how to build one.

Understanding the Diode Bridge Rectifier

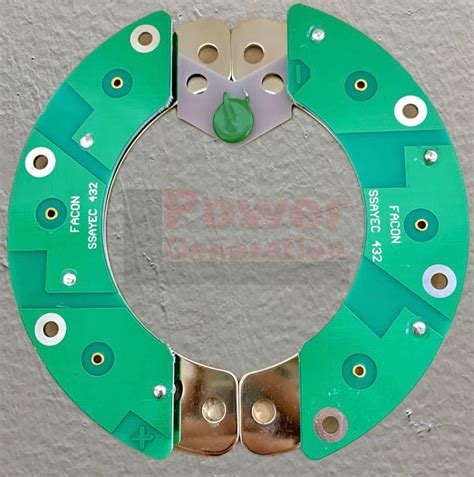

A Diode Bridge Rectifier is an electronic circuit that converts AC to DC using four diodes arranged in a bridge configuration. This setup allows the current to flow in one direction, regardless of the polarity of the input voltage. The bridge rectifier is commonly used in power supplies for electronic devices, battery chargers, and various other applications where a stable DC supply is required.

Types of Diode Bridge Rectifiers

There are two main types of Diode Bridge Rectifiers: the full-wave rectifier and the half-wave rectifier. Each has its own advantages and is suited for different applications.

Full-Wave Rectifier

The full-wave rectifier uses all parts of the AC waveform to produce DC. This type of rectifier is more efficient than the half-wave rectifier because it utilizes both the positive and negative cycles of the AC input. There are two types of full-wave rectifiers: the center-tapped full-wave rectifier and the bridge rectifier.

Half-Wave Rectifier

The half-wave rectifier, on the other hand, uses only half of the AC waveform to produce DC. This type of rectifier is less efficient because it discards half of the input signal. However, it is simpler and cheaper to implement, making it suitable for low-power applications.

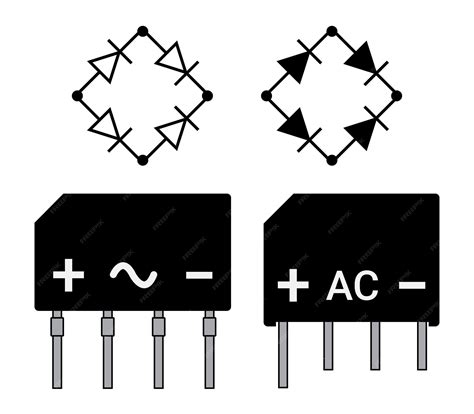

Components of a Diode Bridge Rectifier

A Diode Bridge Rectifier typically consists of four diodes arranged in a bridge configuration. The diodes are connected in such a way that they allow current to flow in one direction, regardless of the polarity of the input voltage. The basic components of a bridge rectifier include:

Four diodes
Input AC voltage
Output DC voltage
Load resistor

How a Diode Bridge Rectifier Works

The operation of a Diode Bridge Rectifier can be understood by examining the flow of current through the diodes. During the positive half-cycle of the AC input, two diodes conduct, allowing current to flow through the load resistor. During the negative half-cycle, the other two diodes conduct, again allowing current to flow through the load resistor. This ensures that the output voltage is always in the same direction, regardless of the input polarity.

Building a Diode Bridge Rectifier

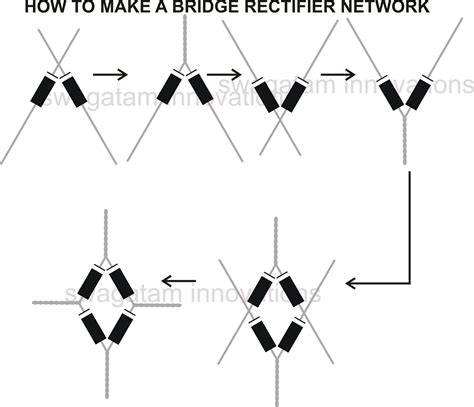

Building a Diode Bridge Rectifier is a straightforward process that involves connecting four diodes in a bridge configuration. Here are the steps to build a basic bridge rectifier:

Materials Needed

Four diodes (1N4007 or similar)
AC input source
Load resistor
Breadboard and jumper wires

Steps to Build

Connect the anode of diode D1 to the positive terminal of the AC input.
Connect the cathode of diode D1 to the anode of diode D3.
Connect the cathode of diode D3 to the negative terminal of the AC input.
Connect the anode of diode D2 to the negative terminal of the AC input.
Connect the cathode of diode D2 to the anode of diode D4.
Connect the cathode of diode D4 to the positive terminal of the AC input.
Connect the junction of diodes D1 and D3 to one end of the load resistor.
Connect the junction of diodes D2 and D4 to the other end of the load resistor.

🔧 Note: Ensure that the diodes are connected correctly, with the anode and cathode properly identified. Incorrect connections can lead to malfunctioning of the circuit.

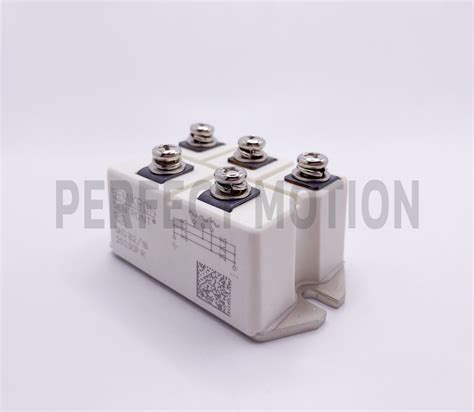

Applications of Diode Bridge Rectifiers

Diode Bridge Rectifiers are used in a wide range of applications where AC to DC conversion is required. Some of the common applications include:

Power supplies for electronic devices
Battery chargers
Solar power systems
Automotive electronics
Industrial control systems

Advantages and Disadvantages

Like any electronic component, Diode Bridge Rectifiers have their own set of advantages and disadvantages. Understanding these can help in making informed decisions when designing circuits.

Advantages

Efficient conversion of AC to DC
Simple and cost-effective design
Wide range of applications
Reliable performance

Disadvantages

Output voltage contains ripples
Requires additional filtering for smooth DC output
Diodes can generate heat, requiring heat sinks in high-power applications

Filtering the Output

One of the main drawbacks of a Diode Bridge Rectifier is the presence of ripples in the output voltage. To obtain a smooth DC output, a filtering circuit is often used. The most common filtering method is to use a capacitor connected across the output terminals. The capacitor smooths out the ripples by storing and releasing charge as needed.

Here is a simple example of how to add a filtering capacitor to a bridge rectifier:

Connect a capacitor (e.g., 1000 µF, 25V) across the output terminals of the bridge rectifier.
Ensure the capacitor is rated for the voltage and current of your application.

🔧 Note: The value of the capacitor should be chosen based on the required ripple voltage and the load current. A larger capacitor will provide better filtering but may increase the cost and size of the circuit.

Example Circuit

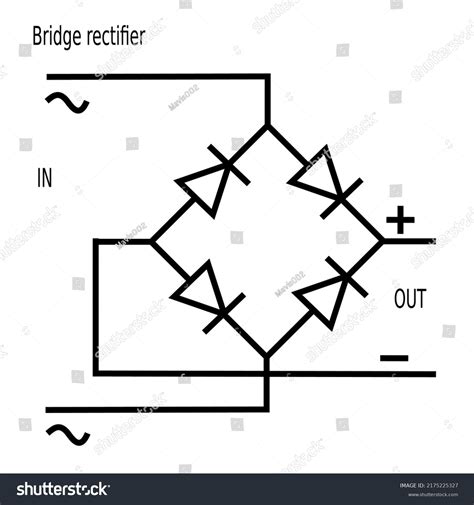

Below is an example circuit diagram of a Diode Bridge Rectifier with a filtering capacitor:

Troubleshooting Common Issues

When working with Diode Bridge Rectifiers, you may encounter some common issues. Here are a few troubleshooting tips to help you identify and resolve these problems:

No Output Voltage

Check the connections of the diodes to ensure they are correctly oriented.
Verify that the AC input is present and within the expected voltage range.
Inspect the diodes for any signs of damage or failure.

High Ripple Voltage

Increase the capacitance of the filtering capacitor.
Ensure the capacitor is properly connected across the output terminals.
Check for any load-related issues that may be causing the ripples.

Overheating Diodes

Use diodes with a higher current rating.
Add a heat sink to dissipate the heat generated by the diodes.
Ensure proper ventilation around the circuit.

🔧 Note: Always follow safety precautions when working with electrical circuits, especially when dealing with high voltages and currents.

In summary, the Diode Bridge Rectifier is a fundamental component in the conversion of AC to DC. Its simple design and efficient operation make it a popular choice for various applications. By understanding its working principles, components, and troubleshooting techniques, you can effectively use a Diode Bridge Rectifier in your projects. Whether you are building a power supply, a battery charger, or any other DC-powered device, the Diode Bridge Rectifier is an essential tool in your electronics toolkit.
