In the realm of lighting control, the concept of Dimming 0 10V has become increasingly popular due to its versatility and efficiency. This system allows for precise control over lighting levels, making it ideal for various applications, from residential settings to large commercial spaces. Understanding the intricacies of Dimming 0 10V can help you make informed decisions about your lighting needs and ensure optimal performance.
Understanding Dimming 0 10V
Dimming 0 10V refers to a type of dimming system that uses a 0-10 volt control signal to adjust the brightness of lighting fixtures. This system is widely used in commercial and industrial settings due to its reliability and ease of integration with existing infrastructure. Unlike other dimming methods, Dimming 0 10V provides a linear control signal, which means the brightness of the lights can be adjusted smoothly and precisely.
How Dimming 0 10V Works

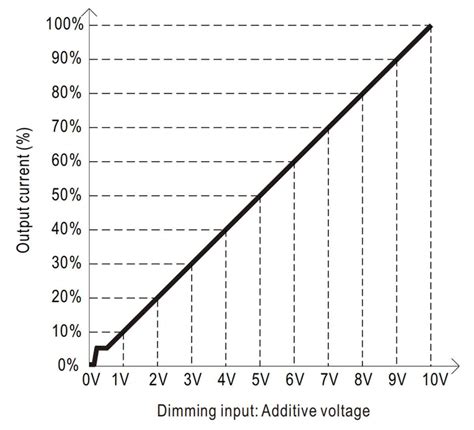

The Dimming 0 10V system operates by sending a low-voltage control signal to the dimmable driver or ballast. This signal ranges from 0 volts (off) to 10 volts (full brightness). The driver or ballast then adjusts the power supplied to the lighting fixture based on the voltage level of the control signal. This allows for precise control over the lighting levels, making it possible to create the perfect ambiance for any setting.
Components of a Dimming 0 10V System
A typical Dimming 0 10V system consists of several key components:
- Control Device: This can be a wall-mounted dimmer switch, a remote control, or a smart device that sends the 0-10 volt control signal.

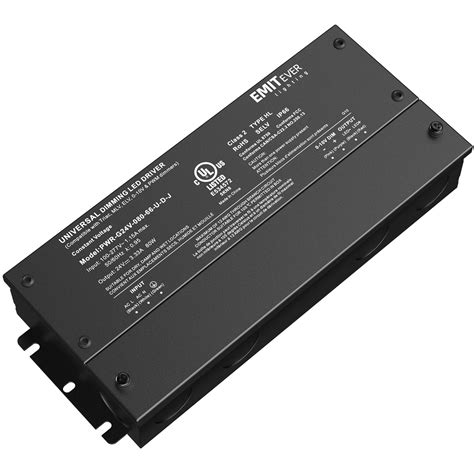

- Dimmable Driver or Ballast: This component receives the control signal and adjusts the power supplied to the lighting fixture accordingly.

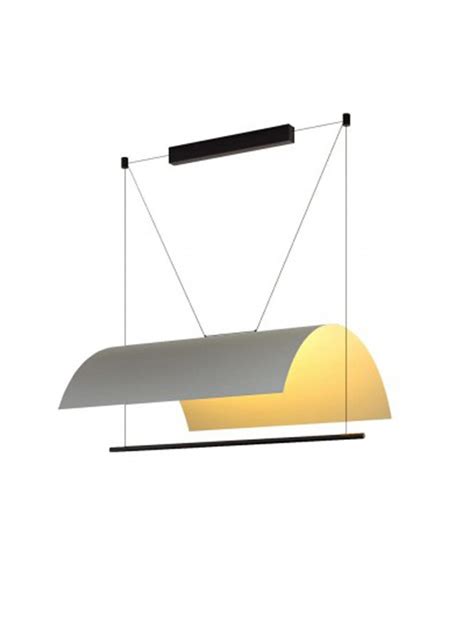

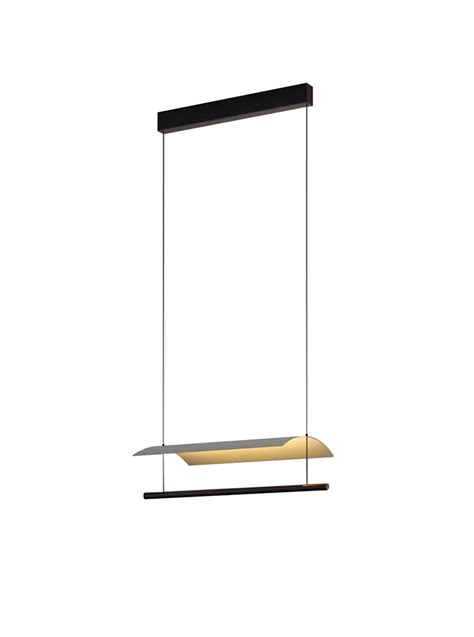

- Lighting Fixture: The actual light source, which can be LED, fluorescent, or other types of dimmable lights.
- Wiring: The electrical wiring that connects all the components together.
Benefits of Dimming 0 10V
The Dimming 0 10V system offers several advantages over other dimming methods:
- Precision Control: The linear control signal allows for precise adjustment of lighting levels, ensuring optimal brightness for any situation.
- Energy Efficiency: By reducing the power consumption of lighting fixtures, Dimming 0 10V can help lower energy costs and reduce environmental impact.
- Compatibility: Dimming 0 10V systems are compatible with a wide range of lighting fixtures, making them a versatile choice for various applications.
- Reliability: The simplicity of the control signal makes Dimming 0 10V systems highly reliable and easy to maintain.
Applications of Dimming 0 10V
Dimming 0 10V systems are used in a variety of settings, including:
- Commercial Spaces: Offices, retail stores, and restaurants often use Dimming 0 10V to create the right ambiance and save energy.
- Industrial Settings: Factories and warehouses benefit from the precise control and reliability of Dimming 0 10V systems.
- Residential Settings: Homeowners can use Dimming 0 10V to enhance the aesthetics of their living spaces and improve energy efficiency.
- Architectural Lighting: Dimming 0 10V is ideal for highlighting architectural features and creating dramatic lighting effects.
Installing a Dimming 0 10V System
Installing a Dimming 0 10V system involves several steps. Here is a basic guide to help you get started:
Step 1: Plan Your Layout
Before beginning the installation, plan the layout of your lighting system. Determine the locations of the control devices, dimmable drivers or ballasts, and lighting fixtures. Ensure that all components are compatible with each other and that the wiring is properly routed.
Step 2: Install the Control Device
Install the control device, such as a wall-mounted dimmer switch or remote control, in a convenient location. Follow the manufacturer's instructions for wiring and mounting the device.
Step 3: Connect the Dimmable Driver or Ballast
Connect the dimmable driver or ballast to the control device using the appropriate wiring. Ensure that the connections are secure and that the wiring is properly insulated.
Step 4: Install the Lighting Fixtures
Install the lighting fixtures according to the manufacturer's instructions. Connect the fixtures to the dimmable drivers or ballasts using the appropriate wiring.
Step 5: Test the System
Once all components are installed, test the Dimming 0 10V system to ensure that it is functioning correctly. Adjust the control device to verify that the lighting levels can be precisely controlled.
🔧 Note: Always follow safety guidelines and local electrical codes when installing a Dimming 0 10V system. If you are not comfortable with electrical work, consider hiring a professional electrician.
Troubleshooting Dimming 0 10V Systems
Even with proper installation, issues can arise with Dimming 0 10V systems. Here are some common problems and their solutions:
- No Response from Control Device: Check the wiring connections between the control device and the dimmable driver or ballast. Ensure that the control device is properly powered and that the wiring is not damaged.
- Inconsistent Dimming: Verify that the control signal is stable and that there are no electrical interferences. Ensure that the dimmable driver or ballast is compatible with the control device.
- Lighting Fixtures Not Dimming: Check the connections between the lighting fixtures and the dimmable drivers or ballasts. Ensure that the fixtures are compatible with the Dimming 0 10V system and that the wiring is properly routed.
Maintaining a Dimming 0 10V System
Regular maintenance is essential to ensure the longevity and performance of your Dimming 0 10V system. Here are some tips for maintaining your system:
- Inspect Wiring: Regularly inspect the wiring connections to ensure that they are secure and free from damage.
- Clean Components: Keep the control devices, dimmable drivers or ballasts, and lighting fixtures clean and free from dust and debris.
- Check for Interferences: Ensure that there are no electrical interferences that could affect the performance of the Dimming 0 10V system.
- Update Firmware: If your control device or dimmable driver or ballast has firmware updates available, install them to ensure optimal performance.
🛠️ Note: Regular maintenance can help prevent issues and extend the lifespan of your Dimming 0 10V system. Always follow the manufacturer's guidelines for maintenance and troubleshooting.
Future Trends in Dimming 0 10V Technology
The technology behind Dimming 0 10V systems continues to evolve, with new advancements and innovations emerging regularly. Some of the future trends in Dimming 0 10V technology include:
- Smart Integration: Integration with smart home systems and IoT devices, allowing for remote control and automation of lighting.
- Energy Management: Advanced energy management features that optimize lighting usage and reduce energy consumption.
- Wireless Control: Wireless control options that eliminate the need for complex wiring and provide greater flexibility.
- Enhanced Compatibility: Improved compatibility with a wider range of lighting fixtures and control devices.
As technology advances, Dimming 0 10V systems will continue to offer more features and benefits, making them an even more attractive option for lighting control.
In conclusion, Dimming 0 10V systems provide a reliable and efficient way to control lighting levels in various settings. With precise control, energy efficiency, and compatibility with a wide range of lighting fixtures, Dimming 0 10V is an excellent choice for both residential and commercial applications. By understanding the components, installation process, and maintenance requirements, you can ensure that your Dimming 0 10V system operates smoothly and effectively. As technology continues to evolve, the future of Dimming 0 10V looks bright, with new innovations and advancements on the horizon.
