Different Types Of Valves

Valves are essential components in various industries, from plumbing and HVAC to automotive and aerospace. They control the flow of liquids, gases, and other substances, ensuring that systems operate efficiently and safely. Understanding the different types of valves and their applications is crucial for anyone involved in these fields. This post will delve into the various types of valves, their functions, and where they are commonly used.

Understanding Valves: Basic Concepts

Before diving into the different types of valves, it’s important to understand the basic concepts behind their operation. Valves are mechanical devices that regulate the flow of fluids by opening, closing, or partially obstructing various passageways. They can be manually operated or controlled automatically using actuators. The choice of valve depends on factors such as the type of fluid, pressure, temperature, and the specific requirements of the application.

Classification of Valves

Valves can be classified based on their function, design, and application. The primary classifications include:

Control Valves: These valves regulate the flow or pressure of a fluid. They are commonly used in industrial processes to maintain specific conditions.
Safety Valves: These valves protect equipment and personnel by relieving excess pressure in a system. They are crucial in applications where pressure buildup can be hazardous.
Check Valves: These valves allow fluid to flow in only one direction, preventing backflow. They are essential in systems where reverse flow can cause damage or contamination.
Isolation Valves: These valves completely stop the flow of fluid. They are used to isolate parts of a system for maintenance or repair.

Common Types of Valves

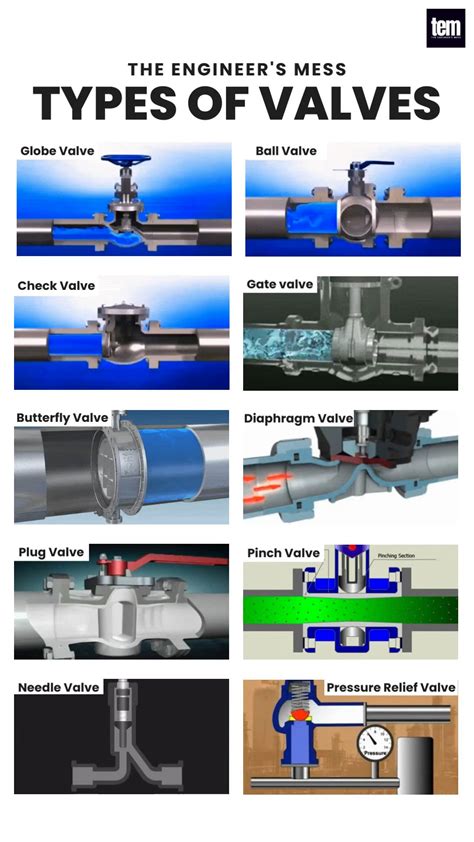

There are numerous different types of valves, each designed for specific applications. Here are some of the most common types:

Ball Valves

Ball valves are quarter-turn valves that use a hollow, perforated, and pivoting ball to control flow through it. They are widely used in various industries due to their reliability and ease of use. Ball valves are available in different materials, including brass, stainless steel, and PVC, making them suitable for a wide range of applications.

Ball valves are particularly useful in applications where quick shut-off is required. They are commonly used in plumbing, HVAC, and industrial processes.

Gate Valves

Gate valves are linear motion valves that use a gate or wedge to control flow. They are designed to either be fully open or fully closed, making them ideal for applications where flow regulation is not required. Gate valves are commonly used in water supply systems, fire protection systems, and industrial pipelines.

One of the key advantages of gate valves is their ability to provide a straight-through flow path, which minimizes pressure drop and turbulence. However, they are not suitable for throttling applications due to the potential for seat damage.

Globe Valves

Globe valves are linear motion valves that use a disc to control flow. They are designed for throttling applications, where precise control of flow is required. Globe valves are commonly used in steam systems, cooling water systems, and chemical processing plants.

Globe valves are available in various configurations, including angle, Y-pattern, and straight-through designs. Each configuration has its own advantages and is suited to different applications.

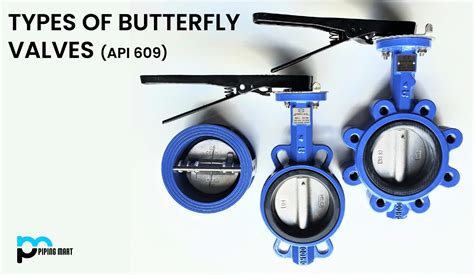

Butterfly Valves

Butterfly valves are quarter-turn valves that use a disc to control flow. They are designed for large flow rates and are commonly used in water treatment plants, HVAC systems, and industrial processes. Butterfly valves are available in different materials, including cast iron, stainless steel, and PVC, making them suitable for a wide range of applications.

Butterfly valves are particularly useful in applications where space is limited, as they have a compact design and require minimal installation space. However, they are not suitable for applications where precise flow control is required.

Check Valves

Check valves are designed to allow fluid to flow in only one direction, preventing backflow. They are essential in systems where reverse flow can cause damage or contamination. Check valves are commonly used in water supply systems, sewage systems, and industrial processes.

There are several types of check valves, including swing check valves, lift check valves, and ball check valves. Each type has its own advantages and is suited to different applications.

Safety Valves

Safety valves are designed to protect equipment and personnel by relieving excess pressure in a system. They are crucial in applications where pressure buildup can be hazardous. Safety valves are commonly used in boilers, pressure vessels, and industrial processes.

Safety valves are available in different configurations, including direct-acting and pilot-operated designs. Each configuration has its own advantages and is suited to different applications.

Needle Valves

Needle valves are designed for precise flow control and are commonly used in applications where small flow rates are required. They are available in different materials, including brass, stainless steel, and PVC, making them suitable for a wide range of applications.

Needle valves are particularly useful in applications where precise flow control is required, such as in laboratory equipment, instrumentation, and medical devices.

Diaphragm Valves

Diaphragm valves use a flexible diaphragm to control flow. They are designed for applications where contamination must be prevented, such as in food and beverage processing, pharmaceuticals, and biotechnology. Diaphragm valves are available in different materials, including PTFE, EPDM, and silicone, making them suitable for a wide range of applications.

Diaphragm valves are particularly useful in applications where cleanliness and hygiene are critical. They are commonly used in food and beverage processing, pharmaceuticals, and biotechnology.

Plug Valves

Plug valves use a cylindrical or conical plug with a bored passage to control flow. They are designed for applications where quick shut-off is required and are commonly used in oil and gas, chemical processing, and water treatment. Plug valves are available in different materials, including brass, stainless steel, and PVC, making them suitable for a wide range of applications.

Plug valves are particularly useful in applications where quick shut-off is required, such as in oil and gas, chemical processing, and water treatment.

Pinch Valves

Pinch valves use a flexible sleeve to control flow. They are designed for applications where abrasive or corrosive fluids are present, such as in mining, chemical processing, and wastewater treatment. Pinch valves are available in different materials, including rubber, neoprene, and PTFE, making them suitable for a wide range of applications.

Pinch valves are particularly useful in applications where abrasive or corrosive fluids are present. They are commonly used in mining, chemical processing, and wastewater treatment.

Solenoid Valves

Solenoid valves use an electromagnetic coil to control flow. They are designed for applications where automatic control is required and are commonly used in HVAC, irrigation, and industrial processes. Solenoid valves are available in different materials, including brass, stainless steel, and PVC, making them suitable for a wide range of applications.

Solenoid valves are particularly useful in applications where automatic control is required, such as in HVAC, irrigation, and industrial processes.

Applications of Different Types of Valves

The different types of valves are used in a wide range of industries and applications. Here are some of the most common applications:

Plumbing

In plumbing, valves are used to control the flow of water and other fluids. Common types of valves used in plumbing include ball valves, gate valves, and check valves. These valves are essential for maintaining water pressure, preventing backflow, and ensuring the safe operation of plumbing systems.

HVAC

In heating, ventilation, and air conditioning (HVAC) systems, valves are used to control the flow of refrigerant, water, and air. Common types of valves used in HVAC include ball valves, butterfly valves, and solenoid valves. These valves are essential for maintaining temperature, humidity, and air quality in buildings.

Automotive

In the automotive industry, valves are used to control the flow of fuel, oil, and other fluids. Common types of valves used in automotive applications include check valves, solenoid valves, and needle valves. These valves are essential for the efficient operation of engines and other automotive systems.

Aerospace

In the aerospace industry, valves are used to control the flow of fuel, hydraulic fluid, and other substances. Common types of valves used in aerospace applications include check valves, solenoid valves, and needle valves. These valves are essential for the safe and efficient operation of aircraft and spacecraft.

Chemical Processing

In chemical processing, valves are used to control the flow of chemicals, gases, and other substances. Common types of valves used in chemical processing include ball valves, globe valves, and diaphragm valves. These valves are essential for maintaining the purity, safety, and efficiency of chemical processes.

Oil and Gas

In the oil and gas industry, valves are used to control the flow of oil, gas, and other fluids. Common types of valves used in oil and gas applications include ball valves, gate valves, and plug valves. These valves are essential for the safe and efficient extraction, transportation, and refining of oil and gas.

Water Treatment

In water treatment, valves are used to control the flow of water and other fluids. Common types of valves used in water treatment include butterfly valves, check valves, and pinch valves. These valves are essential for maintaining water quality, preventing contamination, and ensuring the safe operation of water treatment systems.

Selection Criteria for Valves

Selecting the right valve for a specific application involves considering several factors. Here are some of the key criteria to consider when choosing a valve:

Type of Fluid: The type of fluid (liquid, gas, or slurry) and its properties (viscosity, corrosiveness, temperature) will determine the suitable valve material and design.
Pressure and Temperature: The operating pressure and temperature of the system will affect the valve’s design and material selection.
Flow Rate: The required flow rate will determine the valve size and type. For example, butterfly valves are suitable for high flow rates, while needle valves are used for precise flow control.
Control Requirements: The need for manual or automatic control will influence the choice of valve. For example, solenoid valves are used for automatic control, while ball valves can be manually operated.
Maintenance and Reliability: The ease of maintenance and the reliability of the valve are important considerations, especially in critical applications.
Cost: The cost of the valve, including initial purchase, installation, and maintenance, should be considered in the selection process.

🔍 Note: Always consult with a valve specialist or manufacturer to ensure the selected valve meets the specific requirements of your application.

Maintenance and Troubleshooting of Valves

Maintaining valves is crucial for ensuring their longevity and reliable performance. Regular maintenance can prevent failures and extend the lifespan of valves. Here are some key maintenance and troubleshooting tips:

Regular Inspection: Inspect valves regularly for signs of wear, corrosion, or damage. Check for leaks, unusual noises, or difficulty in operation.
Lubrication: Lubricate moving parts as recommended by the manufacturer to ensure smooth operation and prevent wear.
Cleaning: Clean valves to remove any debris or buildup that could affect their performance. Use appropriate cleaning methods and materials to avoid damaging the valve.
Replacement of Parts: Replace worn or damaged parts promptly to prevent further damage and ensure the valve’s reliability.
Testing: Test valves periodically to ensure they are functioning correctly. This includes checking for leaks, flow rates, and pressure drops.

Common issues with valves include:

Leakage: Leakage can occur due to worn seals, damaged gaskets, or improper installation. Regular inspection and replacement of seals and gaskets can prevent leakage.
Sticking: Valves may stick due to corrosion, debris, or lack of lubrication. Regular cleaning and lubrication can prevent sticking.
Corrosion: Corrosion can occur due to exposure to harsh chemicals or environments. Using corrosion-resistant materials and regular cleaning can prevent corrosion.
Wear and Tear: Valves can wear out over time due to frequent use or harsh operating conditions. Regular inspection and replacement of worn parts can extend the valve's lifespan.

🛠️ Note: Always follow the manufacturer's guidelines for maintenance and troubleshooting to ensure the valve's reliability and longevity.

Future Trends in Valve Technology

The field of valve technology is continually evolving, driven by advancements in materials, design, and automation. Some of the future trends in valve technology include:

Smart Valves: Smart valves equipped with sensors and IoT capabilities can monitor and control flow in real-time, providing valuable data for optimization and maintenance.
Advanced Materials: The development of new materials, such as advanced polymers and composites, can enhance the durability, corrosion resistance, and performance of valves.
Automation and Control: The integration of valves with automated control systems can improve efficiency, accuracy, and safety in various applications.
Sustainability: The focus on sustainability is driving the development of valves that are more energy-efficient, environmentally friendly, and designed for long-term use.

As technology continues to advance, the different types of valves will become even more sophisticated, offering improved performance, reliability, and efficiency in a wide range of applications.

Valves play a crucial role in various industries, from plumbing and HVAC to automotive and aerospace. Understanding the different types of valves and their applications is essential for ensuring the safe and efficient operation of systems. By selecting the right valve for the specific application and maintaining it properly, you can enhance the performance and reliability of your systems. As valve technology continues to evolve, we can expect even more innovative solutions that meet the demands of modern industries.
