Diagram Ceiling Fan Wiring

Understanding the intricacies of Diagram Ceiling Fan Wiring is crucial for anyone looking to install or repair a ceiling fan. Whether you're a DIY enthusiast or a professional electrician, having a clear grasp of the wiring diagram can save you time and ensure a safe installation. This guide will walk you through the essentials of ceiling fan wiring, from understanding the components to step-by-step installation.

Table of Contents

Understanding Ceiling Fan Components

Before diving into the Diagram Ceiling Fan Wiring, it's important to familiarize yourself with the key components of a ceiling fan. These include:

Motor: The heart of the ceiling fan, responsible for rotating the blades.
Blades: The parts that create airflow when the motor rotates.
Mounting Bracket: The component that secures the fan to the ceiling.
Downrod: The rod that connects the motor to the mounting bracket.
Wiring: The electrical connections that power the fan and any attached light fixtures.

Reading a Ceiling Fan Wiring Diagram

A Diagram Ceiling Fan Wiring typically includes several key elements:

Power Source: The point where the electrical supply enters the circuit.
Switches: Controls for the fan and light, if applicable.
Fan Motor: The component that drives the blades.
Light Fixture: The optional lighting component.
Ground Wire: The safety wire that connects to the ground.

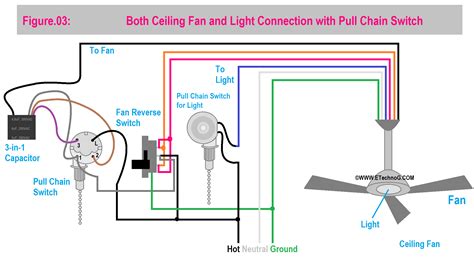

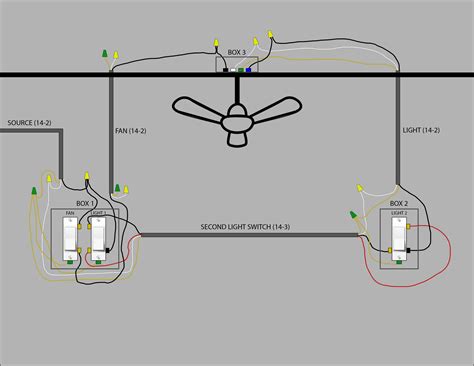

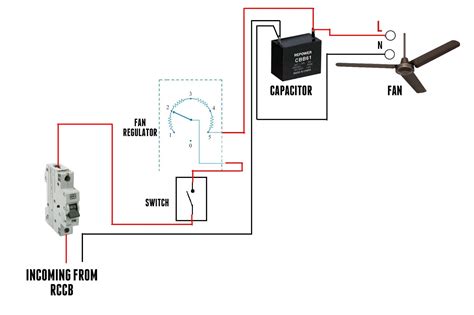

Here is a basic example of what a Diagram Ceiling Fan Wiring might look like:

Diagram Ceiling Fan Wiring

Step-by-Step Guide to Wiring a Ceiling Fan

Wiring a ceiling fan involves several steps. Follow this guide to ensure a safe and effective installation.

Gather Your Tools and Materials

Before you begin, make sure you have the following:

Ceiling fan kit
Screwdriver
Wire stripper
Wire nuts
Ladder
Voltage tester

Turn Off the Power

Safety first! Turn off the power to the circuit you'll be working on at the main electrical panel. Use a voltage tester to ensure the power is off.

Remove the Old Fixture

If you're replacing an existing fixture, remove it carefully. Disconnect the wires and set the old fixture aside.

Install the Mounting Bracket

Attach the mounting bracket to the ceiling junction box. Ensure it is securely fastened.

Connect the Wires

Follow the Diagram Ceiling Fan Wiring to connect the wires. Typically, you will have the following connections:

Black Wire: Connects to the black wire from the ceiling (hot wire).
White Wire: Connects to the white wire from the ceiling (neutral wire).
Green or Bare Wire: Connects to the ground wire from the ceiling.
Blue Wire: Connects to the fan motor (if applicable).
Red Wire: Connects to the light fixture (if applicable).

Use wire nuts to secure the connections and ensure they are tight.

Attach the Fan Motor

Secure the fan motor to the mounting bracket. Ensure it is level and properly aligned.

Install the Blades

Attach the blades to the motor. Follow the manufacturer's instructions for proper alignment and tightening.

Attach the Light Fixture

If your fan includes a light fixture, attach it according to the manufacturer's instructions. Connect the wires as per the Diagram Ceiling Fan Wiring.

Install the Canopy

Attach the canopy to cover the mounting bracket and wires. This will give your installation a finished look.

Test the Fan

Turn the power back on and test the fan. Ensure it operates correctly and that the light (if applicable) functions as expected.

🔧 Note: Always double-check your connections and ensure all wires are securely fastened. Loose connections can cause the fan to malfunction or pose a safety hazard.

Troubleshooting Common Issues

Even with careful installation, issues can arise. Here are some common problems and their solutions:

Fan Doesn't Turn On: Check the power source and ensure all wires are properly connected. Use a voltage tester to verify power at the junction box.
Light Doesn't Work: Ensure the light fixture is properly connected and that the switch is in the correct position. Check for loose wires.
Fan Wobbles: Ensure the blades are securely attached and balanced. Check for any loose screws or misaligned components.

Safety Precautions

Working with electrical components can be dangerous. Always follow these safety precautions:

Turn off the power at the main electrical panel before starting any work.
Use a voltage tester to ensure the power is off.
Wear appropriate safety gear, including gloves and safety glasses.
Follow the manufacturer's instructions carefully.
If you're unsure about any step, consult a professional electrician.

By adhering to these guidelines and understanding the Diagram Ceiling Fan Wiring, you can ensure a safe and effective installation. Whether you're a DIY enthusiast or a professional, taking the time to understand the wiring diagram will save you time and prevent potential issues.

In summary, installing a ceiling fan involves understanding the components, reading the wiring diagram, and following a step-by-step installation process. By taking the necessary precautions and troubleshooting common issues, you can ensure a successful and safe installation. Always prioritize safety and consult a professional if needed.
