Cycle Of Refrigerant

Understanding the intricacies of the Cycle Of Refrigerant is crucial for anyone involved in HVAC (Heating, Ventilation, and Air Conditioning) systems. This cycle is the backbone of modern refrigeration and air conditioning, ensuring that our homes, offices, and industrial spaces remain comfortable and efficient. Whether you are a professional technician, a student, or simply curious about how these systems work, delving into the Cycle Of Refrigerant will provide valuable insights.

Understanding the Basics of Refrigeration

The Cycle Of Refrigerant involves a series of processes that transfer heat from one area to another. This cycle is essential for cooling and heating applications. The primary components of a refrigeration system include the compressor, condenser, expansion valve, and evaporator. Each of these components plays a critical role in the Cycle Of Refrigerant.

The Four Stages of the Cycle Of Refrigerant

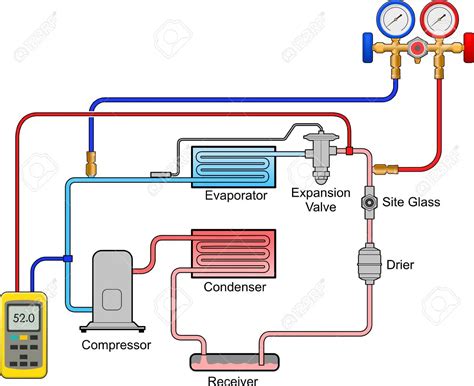

The Cycle Of Refrigerant can be broken down into four main stages: compression, condensation, expansion, and evaporation. Understanding each stage is key to grasping how the entire system functions.

Compression

The cycle begins with the compression stage. In this phase, the refrigerant, which is typically in a gaseous state, is compressed by the compressor. The compression process increases the pressure and temperature of the refrigerant. This high-pressure, high-temperature gas is then directed to the condenser.

Condensation

In the condensation stage, the high-pressure, high-temperature refrigerant gas enters the condenser. Here, it releases heat to the surrounding environment, causing it to condense into a liquid. The condenser is designed to dissipate heat efficiently, often using fans or water to cool the refrigerant. This liquid refrigerant is now at a high pressure but a lower temperature compared to its gaseous state.

Expansion

The next stage is the expansion phase. The high-pressure liquid refrigerant passes through an expansion valve, which reduces its pressure and temperature. This sudden drop in pressure causes the refrigerant to partially vaporize, creating a mixture of liquid and vapor. This cold mixture is then directed to the evaporator.

Evaporation

In the evaporation stage, the cold refrigerant mixture enters the evaporator. Here, it absorbs heat from the surrounding environment, causing it to fully vaporize back into a gas. This absorption of heat cools the area around the evaporator, which is the desired effect in cooling applications. The refrigerant, now in a gaseous state, is then sent back to the compressor to repeat the cycle.

Components of the Refrigeration System

Each component in the refrigeration system plays a vital role in the Cycle Of Refrigerant. Understanding these components will help you appreciate the complexity and efficiency of the system.

The Compressor

The compressor is the heart of the refrigeration system. It is responsible for compressing the refrigerant gas, increasing its pressure and temperature. There are different types of compressors, including reciprocating, scroll, and screw compressors, each with its own advantages and applications.

The Condenser

The condenser is where the high-pressure, high-temperature refrigerant gas releases heat and condenses into a liquid. Condensers can be air-cooled or water-cooled, depending on the application. Air-cooled condensers use fans to dissipate heat, while water-cooled condensers use water to cool the refrigerant.

The Expansion Valve

The expansion valve controls the flow of refrigerant into the evaporator. It reduces the pressure and temperature of the refrigerant, causing it to partially vaporize. This valve is crucial for maintaining the proper pressure and temperature in the system.

The Evaporator

The evaporator is where the refrigerant absorbs heat from the surrounding environment, causing it to vaporize. This absorption of heat cools the area around the evaporator, making it essential for cooling applications. Evaporators can be found in various forms, including finned-tube evaporators and plate evaporators.

Types of Refrigerants

Refrigerants are the substances that undergo the Cycle Of Refrigerant. Different types of refrigerants have been used over the years, each with its own properties and environmental impacts. Understanding the types of refrigerants is important for selecting the right one for a specific application.

Chlorofluorocarbons (CFCs)

CFCs were widely used as refrigerants in the past due to their stability and efficiency. However, they were found to deplete the ozone layer, leading to their phase-out under the Montreal Protocol. Examples of CFCs include R-12 and R-502.

Hydrochlorofluorocarbons (HCFCs)

HCFCs were introduced as a transitional replacement for CFCs. They have a lower ozone depletion potential but still contribute to global warming. Examples of HCFCs include R-22, which is commonly used in older air conditioning systems.

Hydrofluorocarbons (HFCs)

HFCs do not deplete the ozone layer but have a high global warming potential. They are currently used in many modern refrigeration and air conditioning systems. Examples of HFCs include R-134a and R-410A.

Natural Refrigerants

Natural refrigerants, such as ammonia (R-717), carbon dioxide (R-744), and hydrocarbons (R-290, R-600a), are gaining popularity due to their low environmental impact. These refrigerants are more environmentally friendly but may require different system designs and safety considerations.

Maintenance and Troubleshooting

Maintaining a refrigeration system involves regular checks and maintenance to ensure it operates efficiently. Troubleshooting common issues can help identify and resolve problems before they become major issues.

Regular Maintenance

Regular maintenance of a refrigeration system includes:

Checking refrigerant levels and topping up if necessary.
Cleaning or replacing air filters.
Inspecting and cleaning coils.
Checking for leaks in the system.
Lubricating moving parts.

These tasks help ensure that the Cycle Of Refrigerant runs smoothly and efficiently.

Troubleshooting Common Issues

Common issues in refrigeration systems include:

Insufficient cooling: This could be due to low refrigerant levels, dirty coils, or a faulty compressor.
Excessive noise: This might indicate a problem with the compressor or fan.
Leaks: Refrigerant leaks can reduce the system's efficiency and require immediate attention.
Frost buildup: This can occur if the system is not properly defrosting, leading to reduced efficiency.

Addressing these issues promptly can prevent more significant problems and ensure the system's longevity.

🔧 Note: Always follow safety guidelines when working with refrigeration systems, including wearing appropriate protective gear and handling refrigerants carefully.

Environmental Considerations

The environmental impact of refrigeration systems is a growing concern. The choice of refrigerant and the efficiency of the system play crucial roles in minimizing this impact.

Refrigerant Selection

Selecting the right refrigerant is essential for reducing the environmental impact of refrigeration systems. Natural refrigerants, such as ammonia and carbon dioxide, are more environmentally friendly but may require different system designs. HFCs, while more efficient, have a high global warming potential and are being phased out in many regions.

Energy Efficiency

Improving the energy efficiency of refrigeration systems can significantly reduce their environmental impact. This can be achieved through:

Using high-efficiency components, such as compressors and motors.
Implementing variable speed drives to optimize energy use.
Regular maintenance to ensure the system operates at peak efficiency.
Insulating pipes and ducts to minimize heat loss.

These measures can help reduce energy consumption and lower greenhouse gas emissions.

Future Trends in Refrigeration

The field of refrigeration is continually evolving, driven by the need for more efficient and environmentally friendly solutions. Several trends are shaping the future of refrigeration technology.

Advanced Refrigerants

Research is ongoing to develop new refrigerants that are both efficient and environmentally friendly. These include:

Hydrofluoroolefins (HFOs): These refrigerants have a low global warming potential and are being adopted in various applications.
Low-GWP HFC blends: These blends combine different HFCs to achieve lower global warming potential.
Natural refrigerants: Continued research into the use of natural refrigerants like ammonia and carbon dioxide.

Smart Technology

The integration of smart technology in refrigeration systems is enhancing their efficiency and reliability. Smart sensors and IoT (Internet of Things) devices can monitor system performance in real-time, detect issues, and optimize energy use. This technology can also provide valuable data for predictive maintenance, reducing downtime and extending the lifespan of the system.

Sustainable Design

Sustainable design principles are being increasingly applied to refrigeration systems. This includes the use of eco-friendly materials, energy-efficient components, and designs that minimize environmental impact. Sustainable design also considers the entire lifecycle of the system, from manufacturing to disposal, ensuring that it is as environmentally friendly as possible.

In conclusion, the Cycle Of Refrigerant is a complex but essential process that underpins modern refrigeration and air conditioning systems. Understanding the four stages of the cycle, the components involved, and the types of refrigerants used is crucial for anyone working in this field. Regular maintenance, troubleshooting, and environmental considerations are also important for ensuring the efficiency and longevity of these systems. As technology advances, the future of refrigeration looks promising, with a focus on sustainability, efficiency, and environmental responsibility.
