Cut A Birdsmouth

When it comes to roof framing, one of the most crucial techniques to master is how to cut a birdsmouth. This method is essential for creating strong and stable connections between the rafters and the top plate of the wall. Properly executed, a birdsmouth joint ensures that the roof structure is both durable and secure. This guide will walk you through the process of cutting a birdsmouth, providing detailed steps and tips to help you achieve professional results.

Table of Contents

Understanding the Birdsmouth Joint

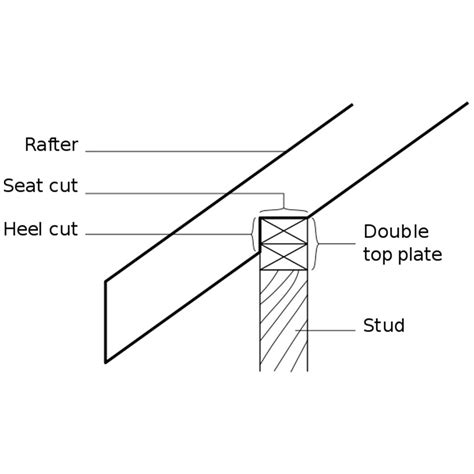

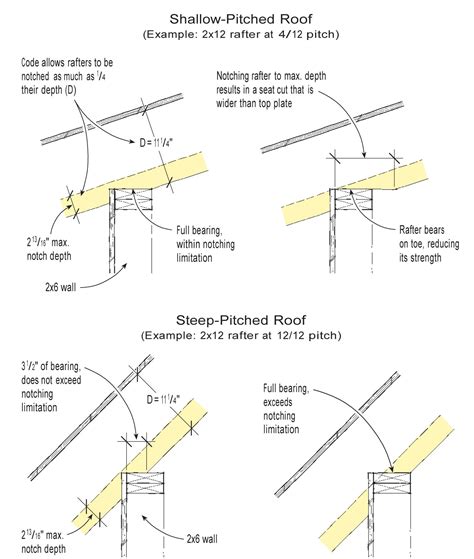

A birdsmouth joint is a notch cut into the bottom of a rafter to allow it to sit flush on the top plate of a wall. This joint is critical for transferring the weight of the roof to the walls below. The birdsmouth joint is typically cut at a 45-degree angle, which helps to distribute the load evenly and provides a secure connection.

There are several types of birdsmouth joints, including:

Full Birdsmouth: This type of joint is cut all the way through the rafter, providing a flush connection with the top plate.
Partial Birdsmouth: This joint is not cut all the way through the rafter, leaving a small portion of the rafter intact for added strength.

Tools and Materials Needed

To cut a birdsmouth, you will need the following tools and materials:

Circular saw or handsaw
Chalk line
Speed square or framing square
Tape measure
Pencil
Safety glasses
Work gloves
Rafters (typically 2x6 or 2x8 lumber)

Steps to Cut a Birdsmouth

Follow these steps to accurately cut a birdsmouth in your rafters:

Step 1: Measure and Mark the Rafter

Begin by measuring the distance from the top of the rafter to the point where it will sit on the top plate. This distance is typically the height of the wall plus the thickness of the top plate. Use a tape measure to mark this point on the rafter.

Next, use a speed square or framing square to mark the 45-degree angle for the birdsmouth cut. Place the square on the rafter with the 45-degree mark aligned with the top edge of the rafter. Draw a line along the square to create the angle for the cut.

Repeat this process on the opposite side of the rafter to ensure symmetry.

Step 2: Cut the Birdsmouth

Using a circular saw or handsaw, carefully cut along the lines you marked in the previous step. Make sure to wear safety glasses and work gloves to protect yourself from debris.

Start by making a shallow cut along the line to create a guide for the deeper cut. Then, make the final cut, ensuring that you cut all the way through the rafter if you are creating a full birdsmouth. For a partial birdsmouth, stop the cut before it goes all the way through the rafter.

📝 Note: Always double-check your measurements and markings before making any cuts. Incorrect cuts can compromise the structural integrity of the roof.

Step 3: Test the Fit

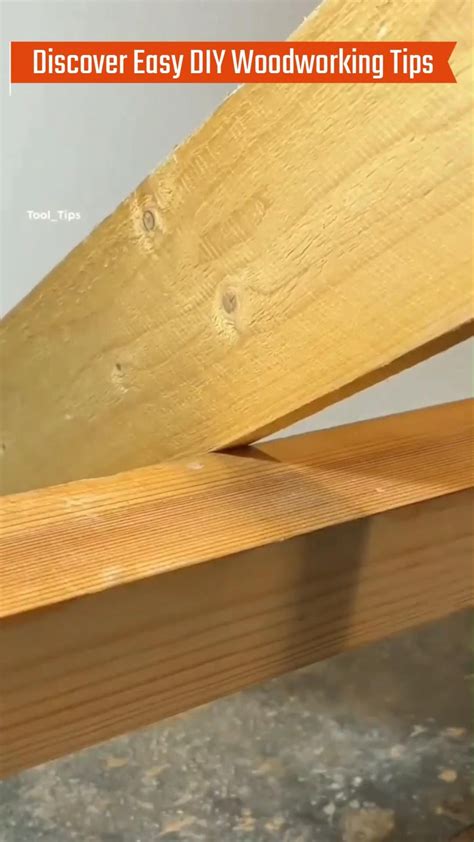

Once you have cut the birdsmouth, place the rafter on the top plate to test the fit. The rafter should sit flush on the top plate with no gaps or unevenness. If necessary, make adjustments to the cut to ensure a perfect fit.

Step 4: Repeat for All Rafters

Repeat the measuring, marking, and cutting process for all rafters in your roof framing. Consistency is key to ensuring that all rafters fit properly and provide a stable roof structure.

Step 5: Secure the Rafters

After all rafters are cut and fitted, secure them to the top plate using nails or screws. Ensure that the rafters are plumb and level before securing them in place.

📝 Note: Use appropriate fasteners and follow local building codes to ensure the roof structure meets safety standards.

Common Mistakes to Avoid

When learning how to cut a birdsmouth, it's important to avoid common mistakes that can compromise the integrity of your roof structure. Some common mistakes include:

Incorrect measurements: Double-check all measurements to ensure accuracy.
Improper angle cuts: Use a speed square or framing square to ensure the correct 45-degree angle.
Inconsistent cuts: Ensure that all birdsmouth cuts are consistent across all rafters.
Inadequate fastening: Use appropriate fasteners and follow building codes for securing rafters.

Tips for Cutting a Birdsmouth

Here are some tips to help you achieve professional results when cutting a birdsmouth:

Use a sharp saw blade: A sharp blade ensures clean cuts and reduces the risk of splintering.
Mark clearly: Use a pencil to make clear, visible marks on the rafter.
Practice on scrap wood: If you are new to cutting birdsmouths, practice on scrap wood to get a feel for the process.
Work in a well-lit area: Good lighting helps you see your marks and cuts more clearly.
Use safety equipment: Always wear safety glasses and work gloves to protect yourself from debris.

Birdsmouth Joint Variations

While the standard birdsmouth joint is the most common, there are variations that can be used depending on the specific requirements of your roof structure. Some variations include:

Double Birdsmouth: This joint is used when the rafter needs to sit on two top plates, such as in a double-wall construction.
Offset Birdsmouth: This joint is used when the rafter needs to be offset from the top plate, such as in a hip roof.

Each variation requires slight adjustments to the cutting process, so it's important to understand the specific requirements of your roof structure before proceeding.

Birdsmouth Joint Strength

The strength of a birdsmouth joint depends on several factors, including the type of lumber used, the angle of the cut, and the method of fastening. To ensure a strong and durable joint, consider the following factors:

Lumber quality: Use high-quality lumber that is free of knots and defects.
Cutting angle: Ensure the cut is made at the correct 45-degree angle to distribute the load evenly.
Fastening method: Use appropriate fasteners and follow building codes for securing rafters.

By paying attention to these factors, you can ensure that your birdsmouth joints provide a strong and stable connection between the rafters and the top plate.

Birdsmouth Joint in Different Roof Types

The birdsmouth joint is used in various roof types, including gable roofs, hip roofs, and shed roofs. The process of cutting a birdsmouth is similar across these roof types, but there may be slight variations depending on the specific design and requirements of the roof.

For example, in a hip roof, the birdsmouth joint may need to be offset to accommodate the hip rafters. In a shed roof, the birdsmouth joint may need to be cut at a different angle to match the slope of the roof.

Understanding the specific requirements of your roof type is essential for cutting accurate and effective birdsmouth joints.

Birdsmouth Joint in Different Climates

The climate in which your roof is built can also affect the performance of the birdsmouth joint. In areas with high winds or heavy snow, the birdsmouth joint must be strong enough to withstand the additional load. In areas with high humidity, the lumber used for the rafters may be more susceptible to warping or rotting, which can compromise the joint.

To ensure the longevity and performance of your birdsmouth joints in different climates, consider the following factors:

Lumber selection: Choose lumber that is suitable for the climate in which the roof will be built.
Fastening method: Use appropriate fasteners and follow building codes for securing rafters in different climates.
Maintenance: Regularly inspect and maintain the roof structure to ensure the birdsmouth joints remain strong and stable.

By considering these factors, you can ensure that your birdsmouth joints perform well in various climates.

Birdsmouth Joint in Different Building Codes

Building codes vary by region and can affect the requirements for cutting and securing birdsmouth joints. It's important to familiarize yourself with the local building codes in your area to ensure that your roof structure meets all necessary standards.

Some common building code requirements for birdsmouth joints include:

Minimum lumber size: Building codes may specify the minimum size of lumber that can be used for rafters.
Fastening requirements: Building codes may specify the type and number of fasteners required to secure rafters.
Load-bearing capacity: Building codes may specify the minimum load-bearing capacity required for birdsmouth joints.

By following the local building codes, you can ensure that your birdsmouth joints meet all necessary safety and performance standards.

Birdsmouth Joint in Different Construction Methods

The method of construction can also affect the requirements for cutting and securing birdsmouth joints. For example, in platform framing, the birdsmouth joint is cut to sit on the top plate of the wall. In balloon framing, the birdsmouth joint is cut to sit on the wall studs.

Understanding the specific requirements of your construction method is essential for cutting accurate and effective birdsmouth joints. Consult with a professional if you are unsure about the requirements for your specific construction method.

Birdsmouth Joint in Different Roof Materials

The material used for the roof can also affect the requirements for cutting and securing birdsmouth joints. For example, in a metal roof, the birdsmouth joint must be strong enough to support the weight of the metal panels. In a tile roof, the birdsmouth joint must be able to accommodate the weight and shape of the tiles.

Understanding the specific requirements of your roof material is essential for cutting accurate and effective birdsmouth joints. Consult with a professional if you are unsure about the requirements for your specific roof material.

Birdsmouth Joint in Different Roof Designs

The design of the roof can also affect the requirements for cutting and securing birdsmouth joints. For example, in a complex roof design with multiple valleys and hips, the birdsmouth joint may need to be cut at different angles to accommodate the design. In a simple gable roof, the birdsmouth joint may be cut at a standard 45-degree angle.

Understanding the specific requirements of your roof design is essential for cutting accurate and effective birdsmouth joints. Consult with a professional if you are unsure about the requirements for your specific roof design.

Birdsmouth Joint in Different Roof Heights

The height of the roof can also affect the requirements for cutting and securing birdsmouth joints. In a tall roof, the birdsmouth joint must be strong enough to support the additional height and weight. In a low roof, the birdsmouth joint may be cut at a different angle to match the slope of the roof.

Understanding the specific requirements of your roof height is essential for cutting accurate and effective birdsmouth joints. Consult with a professional if you are unsure about the requirements for your specific roof height.

Birdsmouth Joint in Different Roof Slopes

The slope of the roof can also affect the requirements for cutting and securing birdsmouth joints. In a steep roof, the birdsmouth joint must be strong enough to support the additional load. In a shallow roof, the birdsmouth joint may be cut at a different angle to match the slope of the roof.

Understanding the specific requirements of your roof slope is essential for cutting accurate and effective birdsmouth joints. Consult with a professional if you are unsure about the requirements for your specific roof slope.

Birdsmouth Joint in Different Roof Loads

The load on the roof can also affect the requirements for cutting and securing birdsmouth joints. In a roof with a heavy load, such as a roof with multiple layers of insulation or a roof with a heavy snow load, the birdsmouth joint must be strong enough to support the additional weight. In a roof with a light load, the birdsmouth joint may be cut at a different angle to match the load.

Understanding the specific requirements of your roof load is essential for cutting accurate and effective birdsmouth joints. Consult with a professional if you are unsure about the requirements for your specific roof load.

Birdsmouth Joint in Different Roof Framing Techniques

The framing technique used for the roof can also affect the requirements for cutting and securing birdsmouth joints. For example, in a stick-framed roof, the birdsmouth joint is cut to sit on the top plate of the wall. In a truss-framed roof, the birdsmouth joint is cut to fit within the truss.

Understanding the specific requirements of your roof framing technique is essential for cutting accurate and effective birdsmouth joints. Consult with a professional if you are unsure about the requirements for your specific roof framing technique.
