Understanding the principles of electrical circuits is fundamental for anyone involved in electronics, whether you're a hobbyist, a student, or a professional engineer. One of the key concepts in this field is the Current Divider Law, which is essential for analyzing circuits with multiple branches. This law helps in determining the current flowing through each branch of a parallel circuit, making it a crucial tool for circuit analysis and design.
What is the Current Divider Law?
The Current Divider Law (CDL) is a fundamental principle in electrical engineering that allows us to calculate the current through each branch of a parallel circuit. It is analogous to the Voltage Divider Law, which is used for series circuits. The CDL states that the current through a branch in a parallel circuit is proportional to the conductance of that branch and inversely proportional to the total conductance of all branches.
Mathematical Formulation of the Current Divider Law

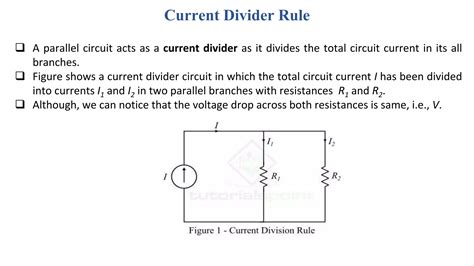

The mathematical expression for the Current Divider Law can be derived from Ohm's Law and Kirchhoff's Current Law. For a parallel circuit with two branches, the current through one of the branches (I1) can be calculated using the following formula:
I1 = (G1 / (G1 + G2)) * IT
Where:
- I1 is the current through the first branch.
- G1 is the conductance of the first branch.
- G2 is the conductance of the second branch.
- IT is the total current entering the parallel combination.
For circuits with more than two branches, the formula can be extended as follows:
I1 = (G1 / (G1 + G2 + G3 + ... + Gn)) * IT
Where Gn represents the conductance of the nth branch.
Understanding Conductance
Conductance (G) is the reciprocal of resistance (R) and is measured in siemens (S). It is a measure of how easily current can flow through a component. The relationship between resistance and conductance is given by:
G = 1 / R
In a parallel circuit, the total conductance (GT) is the sum of the individual conductances:
GT = G1 + G2 + G3 + ... + Gn
Applying the Current Divider Law
To apply the Current Divider Law, follow these steps:
- Identify the total current (IT) entering the parallel combination.
- Determine the conductance of each branch (G1, G2, G3, ... Gn).
- Calculate the total conductance (GT) by summing the individual conductances.
- Use the CDL formula to find the current through each branch.
Let's consider an example to illustrate the application of the Current Divider Law. Suppose we have a parallel circuit with two branches. The first branch has a resistance of 10 ohms, and the second branch has a resistance of 20 ohms. The total current entering the parallel combination is 5 amperes.
First, calculate the conductance of each branch:
G1 = 1 / 10 = 0.1 S
G2 = 1 / 20 = 0.05 S
Next, calculate the total conductance:
GT = G1 + G2 = 0.1 S + 0.05 S = 0.15 S
Now, use the CDL formula to find the current through each branch:
I1 = (G1 / GT) * IT = (0.1 S / 0.15 S) * 5 A = 3.33 A
I2 = (G2 / GT) * IT = (0.05 S / 0.15 S) * 5 A = 1.67 A
Therefore, the current through the first branch is 3.33 amperes, and the current through the second branch is 1.67 amperes.
💡 Note: Ensure that the units are consistent when applying the Current Divider Law. Conductance should be in siemens, and current should be in amperes.
Current Divider Law in Complex Circuits
The Current Divider Law can also be applied to more complex circuits with multiple branches and different components. In such cases, it is often useful to simplify the circuit by combining parallel branches into a single equivalent resistance before applying the CDL.

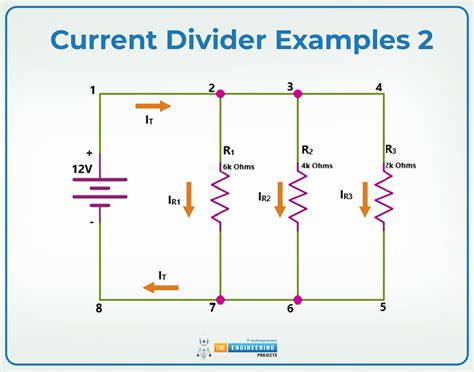

For example, consider a circuit with three parallel branches having resistances of 10 ohms, 20 ohms, and 30 ohms, respectively. The total current entering the parallel combination is 10 amperes.
First, calculate the conductance of each branch:
G1 = 1 / 10 = 0.1 S
G2 = 1 / 20 = 0.05 S
G3 = 1 / 30 = 0.033 S
Next, calculate the total conductance:
GT = G1 + G2 + G3 = 0.1 S + 0.05 S + 0.033 S = 0.183 S
Now, use the CDL formula to find the current through each branch:
I1 = (G1 / GT) * IT = (0.1 S / 0.183 S) * 10 A ≈ 5.46 A
I2 = (G2 / GT) * IT = (0.05 S / 0.183 S) * 10 A ≈ 2.73 A
I3 = (G3 / GT) * IT = (0.033 S / 0.183 S) * 10 A ≈ 1.80 A
Therefore, the currents through the branches are approximately 5.46 amperes, 2.73 amperes, and 1.80 amperes, respectively.
Practical Applications of the Current Divider Law
The Current Divider Law has numerous practical applications in electronics and electrical engineering. Some of the key areas where CDL is applied include:
- Sensor Circuits: In sensor circuits, the Current Divider Law is used to determine the current flowing through different branches, which can be crucial for accurate measurements.
- Power Distribution: In power distribution systems, CDL helps in analyzing the current flow through different branches to ensure efficient power delivery.
- Electronic Filters: In electronic filters, the Current Divider Law is used to design circuits that can filter out unwanted frequencies by controlling the current flow through different branches.
- Biasing Circuits: In biasing circuits for transistors and other active components, CDL is used to ensure that the correct current flows through the biasing network.
Common Mistakes to Avoid
When applying the Current Divider Law, it is important to avoid common mistakes that can lead to incorrect calculations. Some of these mistakes include:
- Incorrect Unit Conversion: Ensure that all units are consistent. Conductance should be in siemens, and current should be in amperes.
- Ignoring Parallel Branches: Make sure to account for all parallel branches in the circuit. Missing a branch can lead to incorrect calculations.
- Incorrect Total Current: Verify that the total current entering the parallel combination is correct. Incorrect total current can result in erroneous branch currents.
💡 Note: Double-check your calculations and ensure that all components and branches are accounted for to avoid errors in applying the Current Divider Law.
Advanced Topics in Current Divider Law
For those interested in delving deeper into the Current Divider Law, there are several advanced topics to explore. These include:
- Complex Impedances: In AC circuits, the Current Divider Law can be extended to include complex impedances, where the conductance is replaced by the admittance (the reciprocal of impedance).
- Non-Linear Components: In circuits with non-linear components, the Current Divider Law may not apply directly. Advanced techniques, such as numerical methods, are often required to analyze such circuits.
- Transient Analysis: In transient analysis, the Current Divider Law can be used to determine the current flow during transient states, such as when a circuit is switched on or off.
These advanced topics provide a deeper understanding of the Current Divider Law and its applications in more complex and dynamic circuits.
Conclusion
The Current Divider Law is a fundamental principle in electrical engineering that allows us to analyze parallel circuits and determine the current flowing through each branch. By understanding and applying the CDL, engineers and hobbyists can design and analyze circuits more effectively. Whether you’re working with simple parallel circuits or complex electronic systems, the Current Divider Law is an essential tool for ensuring accurate and efficient circuit performance. Mastering this law opens up a world of possibilities in electronics, from sensor design to power distribution and beyond.
