Crankcase Vent Valve

Understanding the intricacies of engine maintenance is crucial for any vehicle owner. One often overlooked component is the Crankcase Vent Valve. This small but vital part plays a significant role in maintaining the health and efficiency of your engine. In this post, we will delve into what a Crankcase Vent Valve is, its importance, how it works, and how to maintain it.

Table of Contents

What is a Crankcase Vent Valve?

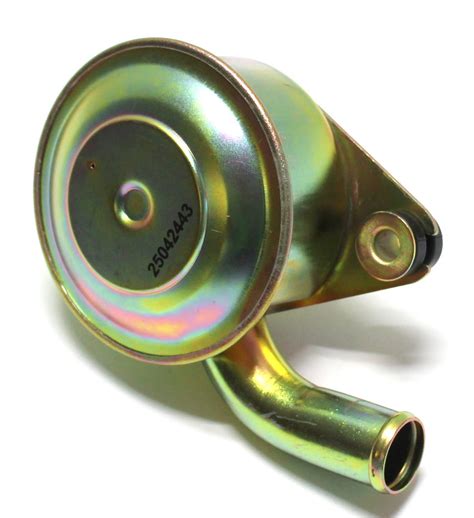

The Crankcase Vent Valve, also known as the Positive Crankcase Ventilation (PCV) valve, is a critical component in modern internal combustion engines. Its primary function is to regulate the flow of gases from the crankcase back into the engine's intake manifold. These gases, which are a byproduct of combustion, can contain harmful contaminants that need to be properly managed to prevent engine damage and reduce emissions.

Importance of the Crankcase Vent Valve

The Crankcase Vent Valve serves several important purposes:

Prevents Oil Contamination: By venting the crankcase gases, the valve helps prevent the buildup of sludge and varnish, which can contaminate the engine oil and reduce its effectiveness.
Reduces Emissions: The valve recirculates harmful gases back into the combustion process, reducing the amount of pollutants released into the atmosphere.
Maintains Engine Performance: Proper ventilation ensures that the engine operates efficiently, maintaining optimal performance and fuel economy.

How Does the Crankcase Vent Valve Work?

The Crankcase Vent Valve operates on a simple yet effective principle. As the engine runs, combustion gases and other vapors escape from the combustion chamber and enter the crankcase. These gases are then directed through the PCV valve and into the intake manifold, where they are mixed with fresh air and fuel before being burned again in the combustion process.

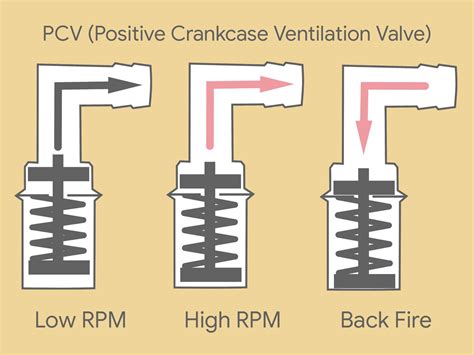

The valve itself is a small, spring-loaded device that opens and closes in response to the pressure differential between the crankcase and the intake manifold. When the engine is running, the intake manifold creates a vacuum that pulls the gases through the valve. The spring ensures that the valve closes when the engine is off, preventing any backflow of gases.

Symptoms of a Faulty Crankcase Vent Valve

Identifying a faulty Crankcase Vent Valve can be challenging, as the symptoms often mimic other engine issues. However, there are several telltale signs to look out for:

Rough Idling: A faulty valve can cause the engine to idle roughly or stall.
Reduced Fuel Efficiency: If the valve is not functioning properly, it can lead to increased fuel consumption.
Oil Leaks: A malfunctioning valve can cause oil to leak from the crankcase, leading to low oil levels and potential engine damage.
Check Engine Light: In some cases, a faulty valve can trigger the check engine light, indicating a problem with the engine's emissions system.

How to Test the Crankcase Vent Valve

Testing the Crankcase Vent Valve is a straightforward process that can be done with a few simple tools. Here are the steps to follow:

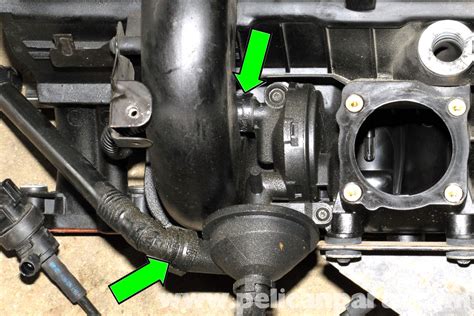

Locate the Valve: The PCV valve is usually located on the valve cover or near the intake manifold. Consult your vehicle's manual for the exact location.
Remove the Valve: Carefully remove the valve from its housing. You may need to use a socket wrench or pliers to loosen it.
Shake Test: Hold the valve by the base and shake it gently. You should hear a rattling sound, indicating that the internal spring and diaphragm are functioning properly.
Blow Test: Place your finger over the small end of the valve and blow through it. You should feel resistance and then a sudden release of air as the valve opens. If there is no resistance or the valve does not open, it may be faulty.
Vacuum Test: Connect a vacuum pump to the valve and apply a vacuum. The valve should hold the vacuum for at least 10 seconds. If it fails to hold the vacuum, it is likely defective.

🔧 Note: Always ensure the engine is cool before performing any maintenance or testing on the Crankcase Vent Valve.

Maintaining the Crankcase Vent Valve

Regular maintenance of the Crankcase Vent Valve is essential to keep your engine running smoothly. Here are some tips for maintaining the valve:

Regular Inspection: Inspect the valve periodically for signs of wear or damage. Replace it if necessary.
Clean the Valve: Over time, the valve can become clogged with sludge and debris. Clean it with a solvent or compressed air to ensure proper functioning.
Replace as Needed: The Crankcase Vent Valve is a wear-and-tear item and should be replaced every 50,000 to 100,000 miles, depending on your vehicle's make and model.

Common Issues with the Crankcase Vent Valve

Several issues can arise with the Crankcase Vent Valve, including:

Clogging: The valve can become clogged with sludge and debris, preventing it from functioning properly.
Wear and Tear: Over time, the internal components of the valve can wear out, leading to reduced performance.
Leaks: A faulty valve can cause oil leaks, leading to low oil levels and potential engine damage.

To address these issues, it is important to perform regular maintenance and replace the valve as needed. Consult your vehicle's manual for specific maintenance intervals and procedures.

Replacing the Crankcase Vent Valve

Replacing the Crankcase Vent Valve is a relatively simple process that can be done with basic tools. Here are the steps to follow:

Locate the Valve: Find the PCV valve on the valve cover or near the intake manifold.
Remove the Old Valve: Use a socket wrench or pliers to loosen and remove the old valve.
Clean the Area: Clean the area around the valve housing to remove any debris or sludge.
Install the New Valve: Insert the new valve into the housing and tighten it securely. Ensure it is properly seated and aligned.
Test the Valve: Start the engine and check for any leaks or unusual noises. The engine should run smoothly with the new valve installed.

🔧 Note: Always use a new O-ring or gasket when replacing the Crankcase Vent Valve to ensure a proper seal.

Conclusion

The Crankcase Vent Valve is a small but crucial component in your engine’s ventilation system. By understanding its importance, how it works, and how to maintain it, you can ensure your engine runs efficiently and lasts longer. Regular inspection, cleaning, and replacement of the valve are essential to prevent engine damage and reduce emissions. Always consult your vehicle’s manual for specific maintenance intervals and procedures to keep your engine in top condition.
