Continuity Test Multimeter

Electrical testing is a critical aspect of maintaining and troubleshooting electrical systems. One of the most essential tools in an electrician's arsenal is the Continuity Test Multimeter. This versatile device is used to verify the continuity of electrical circuits, ensuring that there are no breaks or faults in the wiring. Whether you are a professional electrician or a DIY enthusiast, understanding how to use a Continuity Test Multimeter can save you time and prevent potential hazards.

Understanding the Continuity Test Multimeter

A Continuity Test Multimeter is a specialized type of multimeter designed to test the continuity of electrical circuits. Continuity refers to the uninterrupted flow of electrical current through a conductor. When a circuit is continuous, it means that there are no breaks or faults that could impede the flow of electricity. This is crucial for ensuring that electrical systems function correctly and safely.

The Continuity Test Multimeter typically has a built-in buzzer or beeper that sounds when continuity is detected. This feature makes it easier to identify breaks in the circuit without having to rely solely on visual indicators. The device usually has two probes: one for the positive lead and one for the negative lead. These probes are used to touch the points in the circuit that you want to test for continuity.

Key Features of a Continuity Test Multimeter

A good Continuity Test Multimeter should have several key features to ensure accurate and reliable testing. Some of these features include:

Buzzer or Beeper: This feature provides an audible signal when continuity is detected, making it easier to identify breaks in the circuit.
Auto-Ranging: This feature automatically selects the appropriate range for the measurement, ensuring accurate readings without manual adjustment.
Backlit Display: A backlit display makes it easier to read the measurements in low-light conditions.
Durability: A robust and durable design ensures that the multimeter can withstand the rigors of field use.
Safety Ratings: Look for a multimeter with appropriate safety ratings to protect against electrical hazards.

How to Use a Continuity Test Multimeter

Using a Continuity Test Multimeter is straightforward, but it requires careful attention to detail to ensure accurate results. Here are the steps to follow:

Step 1: Prepare the Multimeter

Before you begin, make sure the circuit you are testing is de-energized. This means turning off the power supply and disconnecting any batteries or power sources. Safety is paramount when working with electrical systems.

Step 2: Set the Multimeter to Continuity Mode

Turn on the multimeter and select the continuity mode. This is usually indicated by a symbol that looks like a speaker or a diode with a line through it. Some multimeters may have a dedicated continuity test button.

Step 3: Connect the Probes

Insert the probes into the appropriate sockets on the multimeter. The red probe typically goes into the positive socket, and the black probe goes into the negative socket.

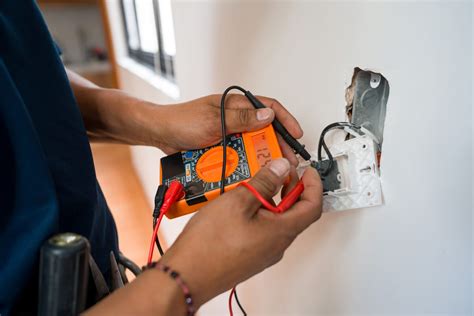

Step 4: Test the Circuit

Touch the probes to the points in the circuit you want to test. If the circuit is continuous, the multimeter will beep, and the display may show a low resistance value (usually close to zero ohms). If there is a break in the circuit, the multimeter will not beep, and the display may show an open circuit or a high resistance value.

🔧 Note: Always ensure that the probes are clean and free of corrosion to get accurate readings.

Common Applications of a Continuity Test Multimeter

A Continuity Test Multimeter is used in a variety of applications, including:

Electrical Wiring

Testing electrical wiring to ensure that there are no breaks or faults. This is crucial for maintaining the safety and functionality of electrical systems in homes, offices, and industrial settings.

Automotive Repairs

Diagnosing electrical issues in vehicles, such as faulty wiring, broken connections, or malfunctioning components. A Continuity Test Multimeter can help identify the source of the problem quickly and accurately.

Electronics Repair

Troubleshooting electronic devices, such as computers, smartphones, and appliances. A Continuity Test Multimeter can help identify broken circuits, faulty components, or damaged wiring.

HVAC Systems

Testing the continuity of electrical components in heating, ventilation, and air conditioning (HVAC) systems. This ensures that the system operates efficiently and safely.

Choosing the Right Continuity Test Multimeter

When selecting a Continuity Test Multimeter, consider the following factors to ensure you get the right tool for your needs:

Accuracy

Look for a multimeter with high accuracy to ensure reliable measurements. This is especially important for professional use where precision is critical.

Range

Choose a multimeter with a wide measurement range to accommodate various testing needs. This includes both low and high resistance values.

Durability

Opt for a multimeter with a robust and durable design that can withstand the rigors of field use. This is particularly important for professionals who work in harsh environments.

Ease of Use

Select a multimeter that is easy to use, with clear markings and intuitive controls. This will save time and reduce the risk of errors during testing.

Safety Features

Ensure the multimeter has appropriate safety features, such as overvoltage protection and insulated probes, to protect against electrical hazards.

Maintaining Your Continuity Test Multimeter

Proper maintenance of your Continuity Test Multimeter is essential to ensure its longevity and accuracy. Here are some tips for maintaining your multimeter:

Regular Calibration

Calibrate your multimeter regularly to ensure accurate readings. This can be done using a calibration kit or by sending the multimeter to a professional calibration service.

Cleaning

Keep the multimeter clean and free of dust and debris. Use a soft cloth to wipe the exterior and a compressed air can to clean the probes and sockets.

Storage

Store the multimeter in a dry, cool place away from direct sunlight and extreme temperatures. This will help prevent damage to the internal components.

Battery Care
Replace the batteries regularly to ensure the multimeter functions properly. Avoid using rechargeable batteries, as they may not provide consistent power.

🔧 Note: Always follow the manufacturer's guidelines for maintenance and calibration to ensure the multimeter remains in good working condition.

Troubleshooting Common Issues

Even with proper use and maintenance, you may encounter issues with your Continuity Test Multimeter. Here are some common problems and their solutions:

No Beep Sound

If the multimeter does not beep when testing for continuity, check the following:

Ensure the multimeter is set to continuity mode.
Verify that the probes are properly connected and clean.
Check the batteries to ensure they are not depleted.
Test the multimeter on a known good circuit to confirm it is functioning correctly.

Inaccurate Readings

If the multimeter provides inaccurate readings, consider the following:

Calibrate the multimeter to ensure it is functioning correctly.
Check the probes for any damage or corrosion.
Ensure the multimeter is set to the appropriate range for the measurement.
Test the multimeter on a known good circuit to confirm its accuracy.

Display Issues

If the display is not functioning properly, try the following:

Check the batteries to ensure they are not depleted.
Clean the display with a soft cloth to remove any dirt or debris.
Reset the multimeter by turning it off and on again.
If the issue persists, consider sending the multimeter for professional repair.

🔧 Note: Always refer to the manufacturer's manual for specific troubleshooting steps and guidelines.

Safety Precautions When Using a Continuity Test Multimeter

Using a Continuity Test Multimeter involves working with electrical systems, which can be hazardous if not handled properly. Here are some safety precautions to keep in mind:

De-energize the Circuit

Always ensure the circuit you are testing is de-energized. Turn off the power supply and disconnect any batteries or power sources before beginning any tests.

Use Insulated Probes

Use insulated probes to protect against electrical shocks. Ensure the probes are in good condition and free of any damage or corrosion.

Wear Protective Gear

Wear appropriate protective gear, such as insulated gloves and safety glasses, to protect against electrical hazards and debris.

Follow Manufacturer’s Guidelines

Always follow the manufacturer’s guidelines for using and maintaining the multimeter. This includes proper handling, storage, and calibration procedures.

Avoid Wet Conditions

Avoid using the multimeter in wet or damp conditions, as this can increase the risk of electrical shock. Keep the multimeter dry and store it in a dry place when not in use.

Conclusion

A Continuity Test Multimeter is an indispensable tool for anyone working with electrical systems. Whether you are a professional electrician or a DIY enthusiast, understanding how to use this device can help you maintain and troubleshoot electrical circuits safely and efficiently. By following the steps outlined in this guide, you can ensure accurate and reliable continuity testing, preventing potential hazards and ensuring the smooth operation of your electrical systems. Regular maintenance and safety precautions are essential to keep your multimeter in good working condition and protect against electrical hazards.
