Concrete structures, while durable, are not immune to damage over time. One of the most common issues is the appearance of cracks. These cracks can compromise the structural integrity of the concrete and, if left unaddressed, can lead to more significant problems. This is where concrete wall crack repair becomes crucial. Understanding the causes, types, and repair methods for concrete wall cracks can help you maintain the safety and longevity of your concrete structures.
Understanding Concrete Wall Cracks
Concrete wall cracks can occur due to various reasons, including settlement, thermal changes, and structural loads. Identifying the cause of the crack is the first step in determining the appropriate repair method. Here are some common causes of concrete wall cracks:
- Settlement: This occurs when the soil beneath the concrete settles unevenly, causing the concrete to crack.
- Thermal Changes: Extreme temperature fluctuations can cause concrete to expand and contract, leading to cracks.
- Structural Loads: Excessive weight or pressure on the concrete can cause it to crack.
- Poor Construction: Inadequate mixing, improper curing, or using low-quality materials can result in weak concrete that is more prone to cracking.
Types of Concrete Wall Cracks
Concrete wall cracks can be categorized into different types based on their appearance and cause. Understanding these types can help in diagnosing the issue and choosing the right repair method.
- Hairline Cracks: These are thin, superficial cracks that are usually less than 1/8 inch wide. They are often caused by shrinkage during the curing process.
- Structural Cracks: These are wider and deeper cracks that can compromise the structural integrity of the concrete. They are often caused by settlement, heavy loads, or poor construction.
- Shrinkage Cracks: These occur when the concrete dries and shrinks, causing cracks to form on the surface.
- Expansion Cracks: These are caused by the expansion of the concrete due to heat or moisture, leading to cracks.
Assessing the Severity of Concrete Wall Cracks
Before proceeding with concrete wall crack repair, it is essential to assess the severity of the cracks. This involves examining the width, depth, and pattern of the cracks. Here is a simple guide to help you assess the severity:
| Crack Width | Severity | Repair Method |
|---|---|---|
| Less than 1/8 inch | Minor | Surface repair or sealing |
| 1/8 inch to 1/4 inch | Moderate | Epoxy injection or routing and sealing |
| More than 1/4 inch | Severe | Structural repair or replacement |
For minor cracks, surface repair or sealing may be sufficient. However, for moderate to severe cracks, more extensive repair methods such as epoxy injection or structural repair may be required.
Methods for Concrete Wall Crack Repair
There are several methods for concrete wall crack repair, each suited to different types and severities of cracks. Here are some of the most common methods:
Surface Repair
Surface repair is suitable for minor, hairline cracks. This method involves cleaning the crack, applying a bonding agent, and then filling the crack with a suitable repair material. The repair material can be a cement-based mortar, epoxy, or polyurethane.
Surface repair is a quick and cost-effective solution for minor cracks. However, it may not be suitable for deeper or wider cracks, as it does not address the underlying cause of the crack.
🛠️ Note: Surface repair is best used for cosmetic purposes and should not be relied upon for structural integrity.

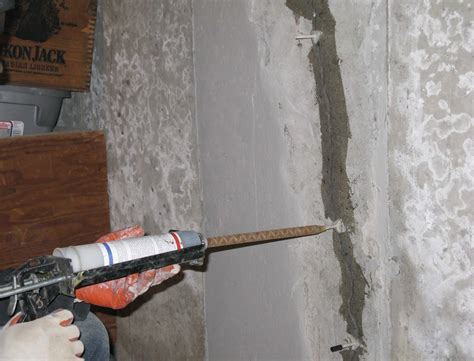

Epoxy Injection
Epoxy injection is a more robust method for repairing moderate to severe cracks. This method involves injecting an epoxy resin into the crack, which then hardens to form a strong, waterproof seal. Epoxy injection is particularly effective for structural cracks, as it restores the concrete's strength and integrity.
Epoxy injection is a more involved process than surface repair and requires specialized equipment and materials. However, it provides a long-lasting solution for concrete wall cracks.
🛠️ Note: Epoxy injection should be performed by a professional to ensure proper application and effectiveness.
Routing and Sealing
Routing and sealing is a method used for wider cracks that are not suitable for epoxy injection. This method involves enlarging the crack with a router to create a V-shaped groove, which is then filled with a sealant. The sealant can be a polyurethane or silicone-based material, depending on the application.
Routing and sealing is effective for preventing water infiltration and restoring the appearance of the concrete surface. However, it may not be suitable for structural cracks, as it does not restore the concrete's strength.
🛠️ Note: Routing and sealing is best used for non-structural cracks and should be combined with other repair methods for structural cracks.
Structural Repair
Structural repair is necessary for severe cracks that compromise the integrity of the concrete. This method involves reinforcing the concrete with additional materials, such as steel rebar or carbon fiber, to restore its strength and stability. Structural repair may also involve replacing damaged sections of the concrete.
Structural repair is a complex and costly process that should be performed by a professional. However, it is essential for ensuring the safety and longevity of the concrete structure.
🛠️ Note: Structural repair should only be performed by a licensed professional with experience in concrete repair.
Preventing Concrete Wall Cracks
While concrete wall crack repair is essential for maintaining the integrity of concrete structures, prevention is always the best approach. Here are some tips for preventing concrete wall cracks:
- Proper Construction: Ensure that the concrete is properly mixed, placed, and cured to minimize the risk of cracking.
- Control Joints: Use control joints to control the location and pattern of cracks. Control joints are pre-cut grooves that allow the concrete to crack in a controlled manner.
- Reinforcement: Reinforce the concrete with steel rebar or other materials to increase its strength and resistance to cracking.
- Expansion Joints: Use expansion joints to accommodate the expansion and contraction of the concrete due to temperature changes.
- Regular Maintenance: Inspect the concrete regularly for signs of cracking and address any issues promptly to prevent further damage.
By following these tips, you can minimize the risk of concrete wall cracks and extend the lifespan of your concrete structures.
Concrete wall cracks are a common issue that can compromise the structural integrity of concrete structures. Understanding the causes, types, and repair methods for concrete wall cracks is essential for maintaining the safety and longevity of your concrete structures. By assessing the severity of the cracks and choosing the appropriate repair method, you can effectively address concrete wall cracks and prevent further damage. Regular maintenance and preventive measures can also help minimize the risk of concrete wall cracks and ensure the long-term durability of your concrete structures.
