The Concrete Slump Test is a fundamental procedure in civil engineering used to measure the workability of fresh concrete. This test is crucial for ensuring that the concrete mixture is suitable for the intended application, whether it's for a building foundation, a bridge, or any other concrete structure. The test provides valuable insights into the consistency and flowability of the concrete, which are essential for achieving the desired strength and durability of the final product.
Understanding the Concrete Slump Test
The Concrete Slump Test is a simple and widely used method to determine the consistency of fresh concrete. It involves filling a conical mold with concrete and then removing the mold to observe how much the concrete "slumps" or settles. The amount of slump is measured in inches or millimeters and is used to classify the concrete's workability.
Importance of the Concrete Slump Test
The Concrete Slump Test is important for several reasons:
- Quality Control: Ensures that the concrete mixture meets the specified workability requirements.
- Cost Efficiency: Helps in optimizing the amount of water and cement used, reducing waste and costs.
- Structural Integrity: Ensures that the concrete has the right consistency to be properly placed and compacted, which is crucial for the structural integrity of the final product.
- Workability: Provides a quick and reliable measure of the concrete's workability, which is essential for proper placement and finishing.
Equipment Required for the Concrete Slump Test
To perform a Concrete Slump Test, you will need the following equipment:
- A slump cone (also known as an Abrams cone), which is a frustum of a cone with specific dimensions.
- A tamping rod, which is a round steel rod used to compact the concrete in the cone.
- A non-absorbent base plate or a flat, level surface.
- A measuring tape or ruler.
- Fresh concrete sample.
Steps to Perform the Concrete Slump Test
The Concrete Slump Test involves several steps, each of which must be performed carefully to ensure accurate results. Here is a detailed guide:
Preparation
Before starting the test, ensure that all equipment is clean and dry. Place the slump cone on a flat, level surface and secure it to prevent movement during the test.
Filling the Cone
Fill the slump cone with fresh concrete in three layers, each approximately one-third the height of the cone. Tamp each layer 25 times with the tamping rod, ensuring that the rod penetrates the entire depth of the layer. After filling the cone, strike off the excess concrete with a trowel to create a level surface.
Removing the Cone
Carefully lift the slump cone vertically upwards without any lateral or torsional movement. This step is crucial to avoid disturbing the concrete sample.

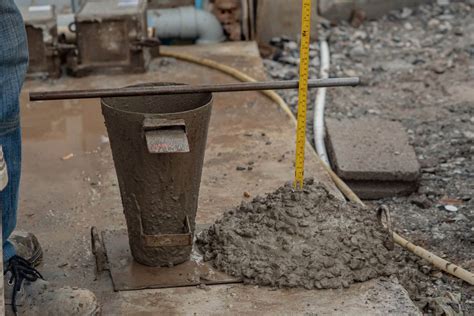

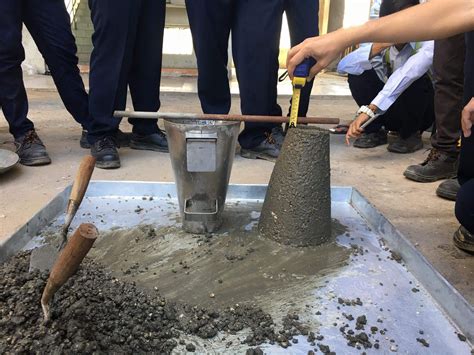

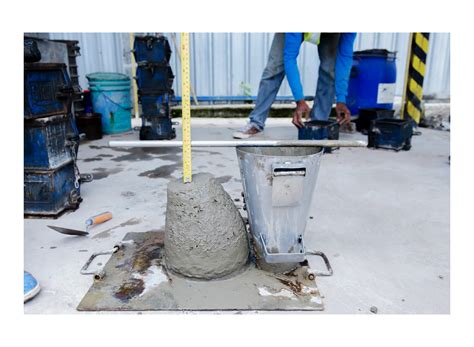

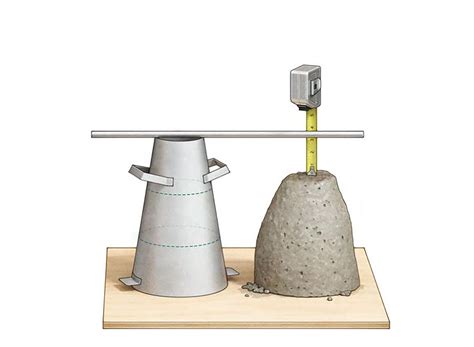

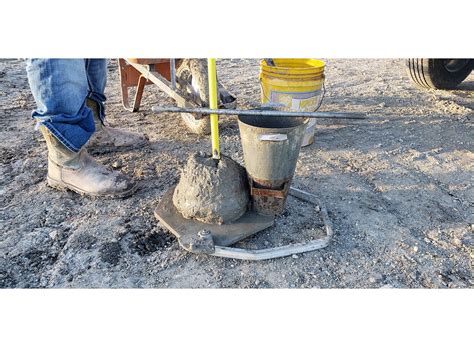

Measuring the Slump

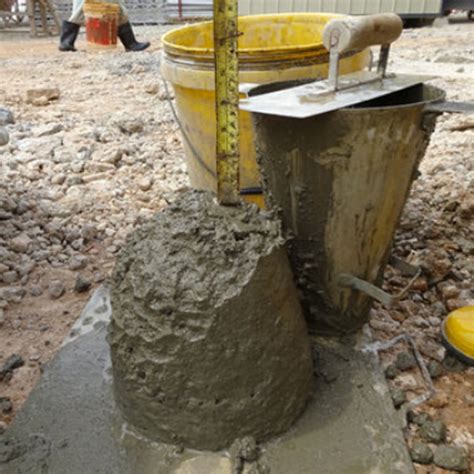

After removing the cone, measure the distance between the original height of the concrete in the cone and the new height of the slumped concrete. This distance is the slump value. Record the slump value in inches or millimeters.

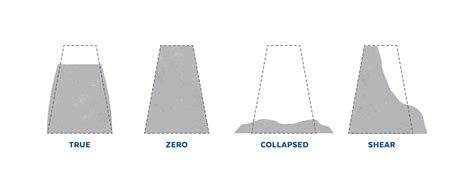

Interpreting the Results
The slump value is used to classify the workability of the concrete. The general classifications are as follows:
| Slump Value (mm) | Workability |
|---|---|
| 0-25 | Low workability (stiff mix) |
| 25-50 | Medium workability (plastic mix) |
| 50-100 | High workability (easy to place) |
| 100-150 | Very high workability (flowing mix) |
| 150+ | Collapsing mix (too wet) |
📝 Note: The slump value should be within the specified range for the particular application to ensure proper placement and compaction of the concrete.
Factors Affecting the Concrete Slump Test
Several factors can affect the results of the Concrete Slump Test. Understanding these factors is essential for accurate interpretation and adjustment of the concrete mixture:
- Water Content: Higher water content increases the slump value, making the concrete more flowable but potentially reducing its strength.
- Aggregate Size and Shape: Larger and more angular aggregates can reduce the slump value, making the concrete stiffer.
- Cement Content: Higher cement content can increase the slump value, but it also increases the cost and may affect the setting time.
- Admixtures: Chemical admixtures can significantly alter the slump value. For example, superplasticizers can increase workability without adding water.
- Temperature: Higher temperatures can increase the slump value by accelerating the hydration process, while lower temperatures can decrease it.
Common Issues and Troubleshooting
During the Concrete Slump Test, several issues may arise. Here are some common problems and their solutions:
- Inconsistent Slump Values: Ensure that the concrete is well-mixed and that the test is performed consistently. Variations in slump values can indicate issues with the mixing process or the concrete batch.
- Segregation: If the concrete segregates (i.e., the aggregates separate from the cement paste), it may indicate that the mixture is too wet or that the aggregates are too large. Adjust the water content or aggregate size accordingly.
- Collapsing Concrete: If the concrete collapses completely after removing the cone, it is too wet. Reduce the water content and retest.
- Inaccurate Measurements: Ensure that the slump cone is placed on a level surface and that the concrete is filled and tamped correctly. Any deviation can affect the accuracy of the slump measurement.
📝 Note: Regular calibration of the slump cone and tamping rod is essential to maintain the accuracy of the test results.
Advanced Techniques and Variations
While the standard Concrete Slump Test is widely used, there are advanced techniques and variations that can provide more detailed information about the concrete's properties:

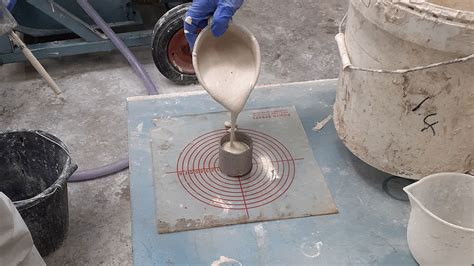

- Flow Table Test: This test measures the flowability of concrete by dropping a table with a concrete sample and measuring the spread. It is useful for high-workability concretes.
- Vebe Consistometer Test: This test measures the time it takes for a concrete sample to reach a specific level of compaction under vibration. It is useful for stiff mixes.
- Kelly Ball Test: This test involves dropping a weighted ball into a concrete sample and measuring the penetration depth. It is useful for very stiff mixes.
These advanced techniques can provide additional insights into the concrete's behavior under different conditions, helping to optimize the mixture design and placement methods.
In addition to these tests, modern technology has introduced non-destructive testing methods that can provide real-time data on the concrete's properties. These methods include ultrasonic testing, rebound hammer testing, and ground-penetrating radar. While these methods are more complex and require specialized equipment, they offer valuable information for quality control and structural assessment.
Best Practices for Conducting the Concrete Slump Test
To ensure accurate and reliable results from the Concrete Slump Test, follow these best practices:
- Consistent Mixing: Ensure that the concrete is well-mixed and homogeneous before testing. Variations in the mixture can affect the slump value.
- Proper Equipment: Use calibrated and well-maintained equipment to ensure accurate measurements.
- Standardized Procedure: Follow the standardized procedure for filling, tamping, and removing the cone to minimize errors.
- Environmental Control: Conduct the test in a controlled environment to minimize the effects of temperature and humidity on the concrete.
- Documentation: Record all test results and observations accurately for future reference and quality control.
By adhering to these best practices, you can ensure that the Concrete Slump Test provides reliable and consistent results, helping to maintain the quality and integrity of the concrete structures.
In conclusion, the Concrete Slump Test is a vital tool in civil engineering for assessing the workability of fresh concrete. It provides valuable insights into the consistency and flowability of the concrete, which are crucial for achieving the desired strength and durability of the final product. By understanding the factors that affect the test results and following best practices, engineers and contractors can ensure that the concrete mixture meets the specified requirements, leading to high-quality and durable structures. The test’s simplicity and reliability make it an essential part of quality control in concrete construction, helping to optimize the use of materials and reduce costs while ensuring structural integrity.
