Compound Microscope Parts

Exploring the intricate world of microscopy reveals a fascinating array of tools and techniques that have revolutionized our understanding of the microscopic realm. At the heart of this exploration lies the compound microscope, a powerful instrument that has become indispensable in various fields, from biology and medicine to materials science and forensic analysis. Understanding the compound microscope parts and their functions is crucial for anyone delving into the microscopic world. This post will guide you through the essential components of a compound microscope, their roles, and how they work together to provide detailed images of tiny specimens.

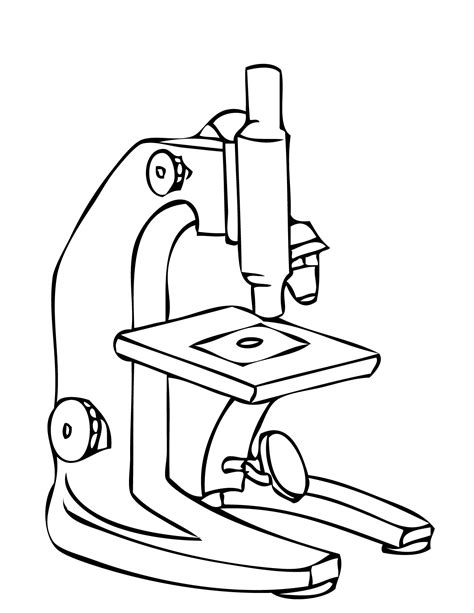

Understanding the Compound Microscope

A compound microscope is an optical instrument that uses a combination of lenses to magnify images of small objects. Unlike simple microscopes, which use a single lens, compound microscopes employ multiple lenses to achieve higher magnification and resolution. This makes them ideal for observing detailed structures that are invisible to the naked eye.

Key Compound Microscope Parts

The compound microscope is composed of several key parts, each playing a vital role in the magnification and observation process. Understanding these parts is essential for effective use of the microscope.

Eyepiece (Ocular Lens)

The eyepiece, also known as the ocular lens, is the lens at the top of the microscope that you look through. It typically provides a magnification of 10x or 15x. The eyepiece works in conjunction with the objective lenses to produce a magnified image of the specimen.

Objective Lenses

Objective lenses are located near the specimen and are responsible for the primary magnification. Compound microscopes usually come with three or four objective lenses of different magnifications, such as 4x, 10x, 40x, and 100x. These lenses can be rotated to change the magnification level. The objective lenses are crucial compound microscope parts as they determine the resolution and clarity of the image.

Stage

The stage is the flat platform where the specimen is placed for viewing. It often has clips to hold the slide in place. Some stages are mechanical, allowing for precise movement of the slide in the x and y directions. This is essential for focusing on different parts of the specimen.

Stage Clips

Stage clips are small metal clips that hold the slide in place on the stage. They ensure that the specimen remains stable during observation, preventing it from moving out of focus.

Illuminator (Light Source)

The illuminator is the light source that shines light through the specimen. It is usually located beneath the stage and can be adjusted for brightness. Proper illumination is crucial for obtaining clear and detailed images.

Diaphragm or Iris

The diaphragm, also known as the iris, is located beneath the stage and controls the amount of light that reaches the specimen. It can be adjusted to optimize the contrast and brightness of the image. This is an important compound microscope part for achieving the best possible view of the specimen.

Coarse Adjustment Knob

The coarse adjustment knob is used to move the stage up and down for initial focusing. It provides large movements, making it easier to bring the specimen into rough focus. This knob is particularly useful when switching between different objective lenses.

Fine Adjustment Knob

The fine adjustment knob allows for precise focusing of the specimen. It provides smaller, more controlled movements of the stage, enabling you to achieve a sharp and clear image. This knob is essential for detailed observation and is often used after the coarse adjustment.

Arm

The arm is the part of the microscope that connects the base to the tube. It provides support and stability to the microscope and is used to carry the instrument. The arm is a crucial compound microscope part for the overall structure and handling of the microscope.

Base

The base is the bottom part of the microscope that provides stability and support. It houses the illuminator and other components. The base ensures that the microscope remains steady during use, which is essential for obtaining clear images.

Tube

The tube, also known as the body tube, connects the eyepiece to the objective lenses. It holds the lenses in place and ensures that the light path is aligned correctly. The tube is a critical compound microscope part for maintaining the optical integrity of the microscope.

Revolving Nosepiece (Turret)

The revolving nosepiece, or turret, is the part that holds the objective lenses. It allows you to rotate the lenses into position for different magnifications. This component is essential for switching between different levels of magnification quickly and easily.

Condenser Lens

The condenser lens is located beneath the stage and focuses light onto the specimen. It works in conjunction with the illuminator to provide optimal lighting conditions. The condenser lens is an important compound microscope part for achieving clear and detailed images.

Condenser Lens Adjustment Knob

The condenser lens adjustment knob allows you to move the condenser lens up and down to focus the light on the specimen. This knob is crucial for optimizing the illumination and contrast of the image.

Mechanical Stage

A mechanical stage is an advanced feature that allows for precise control of the slide’s movement. It typically includes knobs for moving the slide in the x and y directions, making it easier to navigate the specimen. This is a valuable compound microscope part for detailed observation and analysis.

Aperture

The aperture is the opening through which light passes from the illuminator to the specimen. It is controlled by the diaphragm and plays a crucial role in determining the amount of light that reaches the specimen. Proper adjustment of the aperture is essential for achieving the best possible image quality.

Rack Stop

The rack stop is a safety feature that prevents the stage from being raised too high and damaging the objective lenses. It ensures that the microscope remains in good condition and prolongs the lifespan of the lenses.

On/Off Switch

The on/off switch controls the power to the illuminator. It allows you to turn the light source on and off as needed. This switch is a simple but essential compound microscope part for operating the microscope.

Mechanical Stage Controls

Mechanical stage controls include knobs or handles that allow you to move the slide precisely in the x and y directions. These controls are crucial for navigating the specimen and focusing on specific areas of interest.

How Compound Microscope Parts Work Together

Each compound microscope part plays a specific role in the overall functioning of the microscope. Understanding how these parts work together is key to effective use of the instrument. Here’s a breakdown of the process:

1. Light Source and Illumination: The illuminator provides the light that passes through the specimen. The diaphragm controls the amount of light, while the condenser lens focuses it onto the specimen.

2. Specimen Placement: The specimen is placed on a slide and secured with stage clips. The stage allows for precise positioning of the slide.

3. Magnification: The objective lenses provide the primary magnification, while the eyepiece further magnifies the image. The revolving nosepiece allows for easy switching between different objective lenses.

4. Focusing: The coarse and fine adjustment knobs are used to focus the image. The coarse knob provides large movements for initial focusing, while the fine knob allows for precise adjustments.

5. Observation: The magnified image is viewed through the eyepiece. The mechanical stage controls allow for precise navigation of the specimen.

🔍 Note: Always start with the lowest magnification objective lens (4x) and gradually increase to higher magnifications. This helps in locating the specimen and prevents damage to the lenses.

Maintaining Your Compound Microscope

Proper maintenance of your compound microscope is essential for ensuring its longevity and optimal performance. Here are some tips for maintaining your microscope:

Cleaning: Regularly clean the lenses with a soft, lint-free cloth and lens cleaning solution. Avoid using harsh chemicals or abrasive materials.
Storage: Store the microscope in a clean, dry place away from direct sunlight and extreme temperatures. Cover it with a dust cover when not in use.
Handling: Handle the microscope with care, especially the objective lenses. Avoid touching the lenses with your fingers.
Calibration: Periodically check and calibrate the microscope to ensure accurate measurements and focusing.

🛠️ Note: Always follow the manufacturer's guidelines for cleaning and maintenance to avoid damaging the microscope.

Common Issues and Troubleshooting

Even with proper care, you may encounter issues with your compound microscope. Here are some common problems and their solutions:

Blurry Image: Check the focus using the coarse and fine adjustment knobs. Ensure the specimen is properly illuminated.
Low Contrast: Adjust the diaphragm to control the amount of light reaching the specimen. Use the condenser lens to focus the light.
Dirty Lenses: Clean the lenses with a soft, lint-free cloth and lens cleaning solution. Avoid using harsh chemicals.
Mechanical Issues: Check for any loose or damaged parts. Consult the manufacturer's guidelines for troubleshooting specific issues.

⚠️ Note: If you encounter persistent issues, it may be best to consult a professional for repair or maintenance.

Advanced Features of Compound Microscopes

Modern compound microscopes come with advanced features that enhance their functionality and usability. Some of these features include:

Digital Imaging: Many compound microscopes now come with digital cameras that allow you to capture and analyze images digitally. This is particularly useful for documentation and sharing results.
Phase Contrast: Phase contrast microscopy is a technique that enhances the contrast of transparent specimens, making it easier to observe details that would otherwise be invisible.
Fluorescence Microscopy: This technique uses fluorescent dyes to highlight specific structures within a specimen, making it easier to study cellular components.
Confocal Microscopy: Confocal microscopy provides high-resolution images by using a laser to scan the specimen. It is particularly useful for studying three-dimensional structures.

These advanced features make compound microscopes versatile tools for a wide range of applications, from basic research to advanced scientific studies.

🌟 Note: Advanced features may require additional training and expertise to use effectively.

Applications of Compound Microscopes

Compound microscopes are used in various fields due to their ability to provide detailed images of small specimens. Some of the key applications include:

Biology: Compound microscopes are essential for studying cellular structures, tissues, and microorganisms. They are used in research, education, and diagnostic laboratories.
Medicine: In medical settings, compound microscopes are used for diagnosing diseases by examining tissue samples, blood cells, and other biological specimens.
Materials Science: Compound microscopes are used to study the microstructure of materials, helping in the development of new materials and the improvement of existing ones.
Forensic Science: In forensic analysis, compound microscopes are used to examine evidence such as fibers, hair, and other microscopic particles.
Environmental Science: Compound microscopes are used to study environmental samples, such as water and soil, to detect pollutants and other contaminants.

The versatility of compound microscopes makes them indispensable tools in many scientific and industrial applications.

🔬 Note: Proper training and understanding of the microscope's components and functions are essential for effective use in any application.

Choosing the Right Compound Microscope

Selecting the right compound microscope depends on your specific needs and budget. Here are some factors to consider when choosing a compound microscope:

Magnification Range: Determine the magnification range you need for your observations. Most compound microscopes offer a range from 40x to 1000x.
Resolution: Higher resolution allows for clearer and more detailed images. Consider the numerical aperture (NA) of the objective lenses, as a higher NA provides better resolution.
Illumination: Ensure the microscope has a bright and adjustable light source. LED illuminators are popular for their energy efficiency and longevity.
Ease of Use: Consider the ease of use, especially if you are new to microscopy. Features like mechanical stages and coarse/fine adjustment knobs can make the microscope easier to use.
Durability: Look for a microscope with a sturdy build and high-quality components. This ensures longevity and reliability.
Budget: Determine your budget and look for a microscope that offers the best value for your money. Consider both the initial cost and ongoing maintenance expenses.

By considering these factors, you can choose a compound microscope that meets your specific needs and provides reliable performance.

💡 Note: It may be helpful to consult with experts or read reviews before making a purchase to ensure you get the best microscope for your needs.

Conclusion

Understanding the compound microscope parts and their functions is crucial for effective use of this powerful instrument. From the eyepiece and objective lenses to the stage and illuminator, each component plays a vital role in providing detailed images of microscopic specimens. Proper maintenance and troubleshooting ensure the longevity and optimal performance of the microscope. Whether used in biology, medicine, materials science, or forensic analysis, compound microscopes are indispensable tools that continue to advance our understanding of the microscopic world. By choosing the right microscope and mastering its components, you can unlock a world of scientific discovery and innovation.
