Colebrook White Equation

The Colebrook White Equation is a fundamental tool in fluid dynamics, particularly in the field of hydraulics and pipe flow analysis. It is used to determine the friction factor for turbulent flow in pipes, which is crucial for calculating head loss and pressure drop. This equation is widely applied in engineering design and analysis, making it an essential concept for professionals and students alike.

Table of Contents

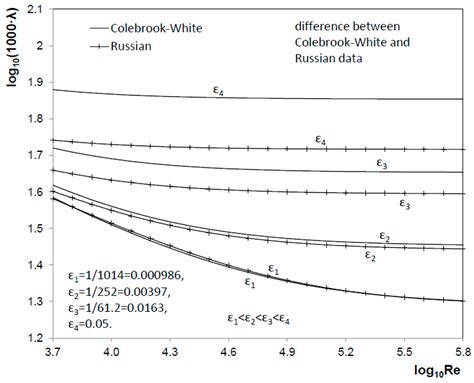

Understanding the Colebrook White Equation

The Colebrook White Equation is an implicit formula that relates the friction factor (f) to the Reynolds number (Re) and the relative roughness (ε/D) of a pipe. The equation is given by:

1/√f = -2 log10(ε/(3.7D) + 2.51/(Re√f))

Where:

f is the Darcy-Weisbach friction factor
ε is the average height of surface roughness
D is the pipe diameter
Re is the Reynolds number

This equation is particularly useful for turbulent flow conditions, where the Reynolds number is typically greater than 4000.

Historical Background

The Colebrook White Equation was developed by C. F. Colebrook and C. M. White in 1937. Their work built upon earlier research by other scientists and engineers, aiming to provide a more accurate model for friction factor calculation in turbulent pipe flow. The equation has since become a standard in fluid dynamics and is widely used in various engineering applications.

Applications of the Colebrook White Equation

The Colebrook White Equation has numerous applications in engineering and science. Some of the key areas where this equation is applied include:

Pipe Flow Analysis: Engineers use the Colebrook White Equation to analyze the flow of fluids through pipes, determining the head loss and pressure drop. This is crucial for designing efficient piping systems in industries such as water supply, oil and gas, and chemical processing.
Hydraulic Systems: In hydraulic systems, the equation helps in calculating the friction losses, which are essential for designing pumps, valves, and other components.
Environmental Engineering: The equation is used in the design of sewer systems, stormwater drainage, and other environmental engineering projects to ensure efficient flow and prevent blockages.
Aerospace Engineering: In aerospace applications, the Colebrook White Equation is used to analyze the flow of fluids through aircraft components, such as fuel lines and hydraulic systems.

Derivation and Simplification

The Colebrook White Equation is derived from empirical data and theoretical considerations. The derivation involves complex mathematical processes, but the final form is an implicit equation that requires iterative methods to solve. Several simplified versions of the Colebrook White Equation have been developed to make calculations more straightforward. One of the most commonly used simplifications is the Swamee-Jain equation, which provides an explicit formula for the friction factor.

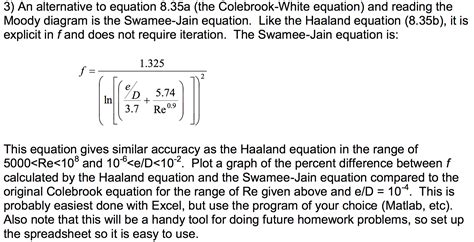

The Swamee-Jain equation is given by:

f = 0.25/[log10(ε/(3.7D) + 5.74/(Re^0.9))]^2

This equation is particularly useful for quick calculations and is accurate for a wide range of Reynolds numbers and relative roughness values.

Solving the Colebrook White Equation

Due to its implicit nature, solving the Colebrook White Equation requires iterative methods. One common approach is the Newton-Raphson method, which is a powerful numerical technique for finding successively better approximations to the roots (or zeroes) of a real-valued function. Here is a step-by-step guide to solving the Colebrook White Equation using the Newton-Raphson method:

Step 1: Initial Guess - Start with an initial guess for the friction factor (f). A common initial guess is f = 0.02.
Step 2: Define the Function - Define the function F(f) as:
F(f) = 1/√f + 2 log10(ε/(3.7D) + 2.51/(Re√f))

Step 3: Compute the Derivative - Compute the derivative of F(f) with respect to f:

F'(f) = -1/(2f^(3/2)) - 2.51/(Re√f * ln(10) * (ε/(3.7D) + 2.51/(Re√f)))

Step 4: Iterate - Use the Newton-Raphson formula to iterate:

f_new = f - F(f) / F'(f)

Step 5: Convergence Check - Check if the difference between f_new and f is within a specified tolerance. If not, update f to f_new and repeat the iteration.

💡 Note: The Newton-Raphson method is efficient but requires careful handling of the initial guess and convergence criteria to ensure accurate results.

Example Calculation

Let's consider an example to illustrate the use of the Colebrook White Equation. Suppose we have a pipe with the following characteristics:

Parameter	Value
Pipe Diameter (D)	0.1 m
Average Roughness (ε)	0.0002 m
Reynolds Number (Re)	100,000

We need to find the friction factor (f). Using the Colebrook White Equation:

1/√f = -2 log10(0.0002/(3.7*0.1) + 2.51/(100,000√f))

Solving this equation iteratively using the Newton-Raphson method, we find that the friction factor (f) is approximately 0.018.

Limitations and Considerations

While the Colebrook White Equation is a powerful tool, it has some limitations and considerations that users should be aware of:

Implicit Nature - The equation is implicit, requiring iterative methods for solution. This can be computationally intensive and may require careful handling of convergence criteria.
Range of Applicability - The equation is primarily valid for turbulent flow conditions. For laminar flow (Re < 2300), other equations, such as the Hagen-Poiseuille equation, should be used.
Accuracy - The accuracy of the Colebrook White Equation depends on the accuracy of the input parameters, particularly the relative roughness (ε/D).

Despite these limitations, the Colebrook White Equation remains a cornerstone of fluid dynamics and is widely used in engineering practice.

In conclusion, the Colebrook White Equation is a fundamental tool in fluid dynamics, providing a reliable method for calculating the friction factor in turbulent pipe flow. Its applications span various engineering disciplines, from hydraulic systems to environmental engineering. While the equation’s implicit nature requires iterative solutions, simplified versions and numerical methods make it accessible for practical use. Understanding and applying the Colebrook White Equation is essential for engineers and students in the field of fluid dynamics.
