In the realm of structural engineering, the Cmu Bond Beam stands as a critical component in the construction of masonry walls. This beam, typically made from concrete masonry units (CMUs), plays a pivotal role in enhancing the structural integrity and stability of buildings. Understanding the design, construction, and benefits of a Cmu Bond Beam is essential for engineers, architects, and builders aiming to create durable and safe structures.

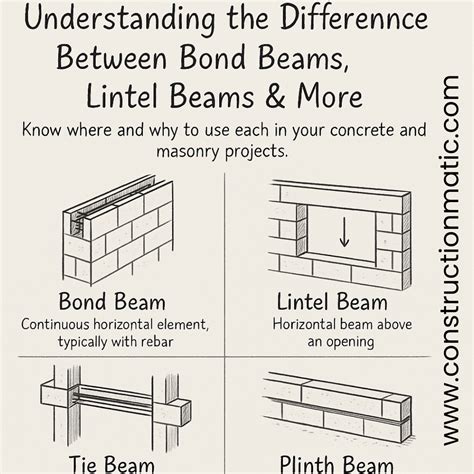

Understanding the Cmu Bond Beam

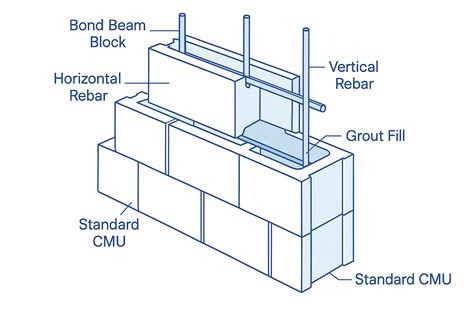

A Cmu Bond Beam is a horizontal reinforcement element integrated into masonry walls. It is designed to distribute loads evenly across the wall, providing additional strength and stability. The beam is usually constructed using concrete masonry units, which are then reinforced with steel rebar and grouted to ensure maximum strength.
Design Considerations for Cmu Bond Beam
Designing a Cmu Bond Beam involves several key considerations to ensure it meets the structural requirements of the building. These considerations include:
- Load Distribution: The beam must be designed to distribute loads evenly across the wall, preventing any single point from bearing excessive weight.
- Reinforcement: Steel rebar is typically used to reinforce the beam, providing additional tensile strength. The size and spacing of the rebar depend on the load requirements and the overall design of the structure.
- Grout Filling: The voids within the CMUs are filled with grout to ensure a solid and continuous bond between the units and the rebar. This step is crucial for the beam's strength and durability.

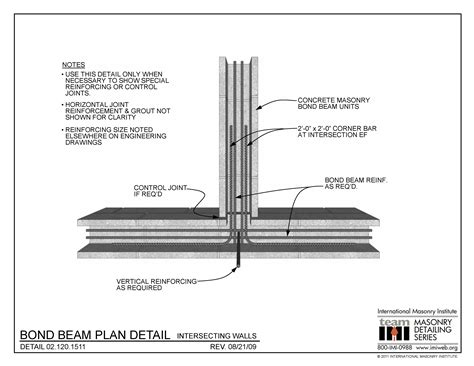

- Connection to Walls: The Cmu Bond Beam must be properly connected to the surrounding masonry walls to ensure a seamless transfer of loads. This is often achieved through the use of anchors or ties.
Construction Process of Cmu Bond Beam
The construction of a Cmu Bond Beam involves several steps, each critical to the beam's performance. Here is a detailed overview of the process:
Step 1: Preparation
Before constructing the beam, the masonry wall must be prepared. This includes ensuring the wall is level and plumb, and that any necessary openings or penetrations are accounted for. The area where the beam will be installed should be clean and free of debris.
Step 2: Laying the CMUs
The first step in constructing the beam is laying the CMUs. These units are placed in a horizontal row, ensuring they are level and properly aligned. The CMUs should be bonded to the surrounding masonry walls using mortar.
Step 3: Installing the Rebar
Once the CMUs are in place, the next step is to install the steel rebar. The rebar is placed within the voids of the CMUs, ensuring it is properly positioned and secured. The rebar should be continuous and extend beyond the ends of the beam to provide adequate anchorage.
Step 4: Grouting
After the rebar is installed, the voids within the CMUs are filled with grout. The grout should be poured in a continuous operation to ensure a solid and uniform fill. This step is crucial for bonding the rebar to the CMUs and providing the necessary strength to the beam.
Step 5: Finishing
The final step in constructing the Cmu Bond Beam is finishing. This includes cleaning the beam, ensuring the grout is properly cured, and applying any necessary sealants or coatings. The beam should be inspected to ensure it meets the design specifications and is ready for use.
🔍 Note: Proper curing of the grout is essential for the beam's strength and durability. The grout should be allowed to cure for the recommended period before the beam is subjected to any loads.
Benefits of Using Cmu Bond Beam
The use of a Cmu Bond Beam offers several benefits in the construction of masonry walls. These benefits include:
- Enhanced Structural Integrity: The beam provides additional strength and stability to the masonry wall, helping to distribute loads evenly and prevent cracking or failure.
- Improved Load Distribution: By distributing loads across the wall, the beam helps to reduce the risk of localized stress concentrations, which can lead to structural issues.
- Increased Durability: The use of reinforced CMUs and grout ensures the beam is durable and resistant to environmental factors, such as moisture and temperature changes.
- Cost-Effective: Compared to other reinforcement methods, the Cmu Bond Beam is a cost-effective solution for enhancing the strength of masonry walls.
Applications of Cmu Bond Beam
The Cmu Bond Beam is used in a variety of applications, including:
- Residential Buildings: In residential construction, the beam is often used to reinforce load-bearing walls, ensuring the structural integrity of the building.
- Commercial Buildings: In commercial structures, the beam is used to support heavy loads, such as those from roofing systems or mechanical equipment.
- Industrial Facilities: In industrial settings, the beam is used to reinforce walls that support heavy machinery or equipment.
- Retaining Walls: The beam is also used in the construction of retaining walls, providing additional strength and stability to prevent collapse.
Common Challenges and Solutions
While the Cmu Bond Beam offers numerous benefits, there are also challenges that can arise during its construction and use. Some common challenges and their solutions include:
| Challenge | Solution |
|---|---|
| Inadequate Grout Filling: Insufficient grout filling can lead to weak spots in the beam, compromising its strength. | Ensure proper grout filling by pouring the grout in a continuous operation and allowing it to cure adequately. |
| Improper Rebar Placement: Incorrect placement of the rebar can result in inadequate reinforcement and reduced beam strength. | Follow the design specifications for rebar placement, ensuring it is properly positioned and secured within the CMUs. |
| Poor Connection to Walls: Inadequate connection to the surrounding masonry walls can lead to load transfer issues and potential failure. | Use anchors or ties to ensure a proper connection between the beam and the walls, allowing for seamless load transfer. |
🛠️ Note: Regular inspection and maintenance of the Cmu Bond Beam are essential to ensure its long-term performance and durability. Any signs of damage or deterioration should be addressed promptly to prevent structural issues.
In conclusion, the Cmu Bond Beam is a vital component in the construction of masonry walls, providing enhanced structural integrity, improved load distribution, and increased durability. By understanding the design, construction, and benefits of the Cmu Bond Beam, engineers, architects, and builders can create safe and durable structures that meet the demands of various applications. The careful consideration of design specifications, proper construction techniques, and regular maintenance are key to ensuring the long-term performance of the Cmu Bond Beam.
