Classification Of Amplifiers

Amplifiers are essential components in electronics, used to increase the power, voltage, or current of a signal. Understanding the classification of amplifiers is crucial for selecting the right type for specific applications. This blog post will delve into the various types of amplifiers, their characteristics, and applications, providing a comprehensive guide to help you make informed decisions.

Table of Contents

Understanding Amplifiers

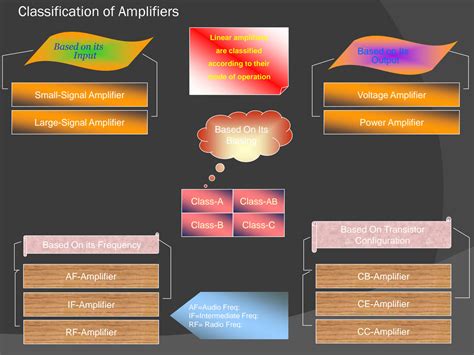

An amplifier is a device that takes an input signal and produces an output signal that is a scaled version of the input. The scaling factor can be greater than one, in which case the amplifier increases the amplitude of the signal, or less than one, in which case it decreases the amplitude. Amplifiers are classified based on several criteria, including their circuit configuration, operating class, and frequency response.

Classification of Amplifiers Based on Circuit Configuration

Amplifiers can be classified based on their circuit configuration, which determines how the input signal is amplified and output. The main types are:

Voltage Amplifiers: These amplifiers increase the voltage of the input signal while keeping the current constant. They are commonly used in audio systems and communication devices.
Current Amplifiers: These amplifiers increase the current of the input signal while keeping the voltage constant. They are often used in applications where high current is required, such as in motor control circuits.
Power Amplifiers: These amplifiers increase both the voltage and current of the input signal, resulting in a higher power output. They are used in applications like audio systems, where high power is needed to drive speakers.
Transconductance Amplifiers: These amplifiers convert a voltage input into a current output. They are used in applications where a voltage-to-current conversion is required, such as in analog-to-digital converters.

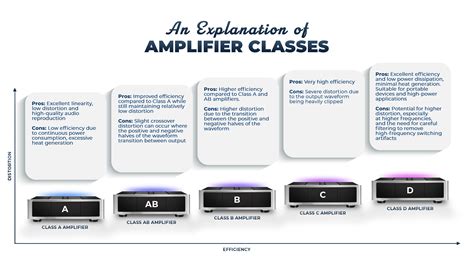

Classification of Amplifiers Based on Operating Class

The operating class of an amplifier refers to the portion of the input cycle during which the amplifier conducts. The main classes are:

Class A Amplifiers: These amplifiers conduct for the entire input cycle. They are linear and produce low distortion but are inefficient, with a maximum theoretical efficiency of 50%.
Class B Amplifiers: These amplifiers conduct for half of the input cycle. They are more efficient than Class A amplifiers but produce higher distortion. They are often used in push-pull configurations to reduce distortion.

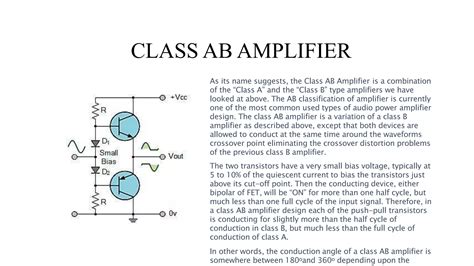

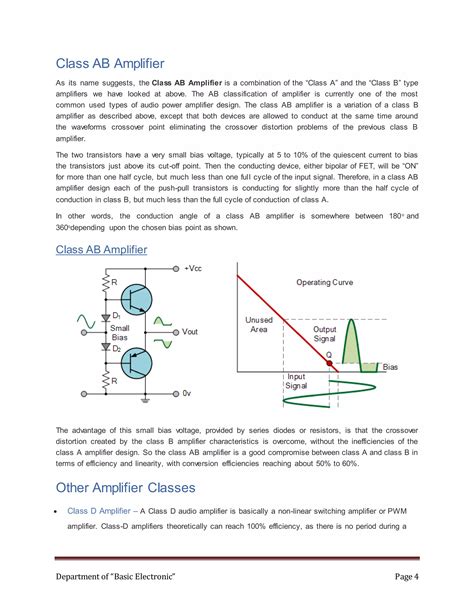

Class AB Amplifiers: These amplifiers conduct for more than half but less than the entire input cycle. They offer a compromise between the linearity of Class A amplifiers and the efficiency of Class B amplifiers.
Class C Amplifiers: These amplifiers conduct for less than half of the input cycle. They are highly efficient but produce significant distortion. They are used in applications like radio frequency (RF) amplifiers.
Class D Amplifiers: These amplifiers use switching techniques to achieve high efficiency. They are digital amplifiers that operate in a fully on or fully off state, reducing power dissipation.
Class E Amplifiers: These amplifiers are designed for high-frequency applications and achieve high efficiency by minimizing power losses. They are used in RF and microwave applications.

Classification of Amplifiers Based on Frequency Response

Amplifiers can also be classified based on their frequency response, which determines the range of frequencies they can amplify effectively. The main types are:

Audio Frequency (AF) Amplifiers: These amplifiers are designed to amplify signals in the audio frequency range, typically from 20 Hz to 20 kHz. They are used in audio systems, such as amplifiers for speakers and headphones.
Radio Frequency (RF) Amplifiers: These amplifiers are designed to amplify signals in the radio frequency range, typically from 3 kHz to 300 GHz. They are used in communication systems, such as radios and wireless devices.
Video Frequency (VF) Amplifiers: These amplifiers are designed to amplify signals in the video frequency range, typically from 30 Hz to 6 MHz. They are used in video systems, such as televisions and monitors.
Wideband Amplifiers: These amplifiers are designed to amplify signals over a wide range of frequencies. They are used in applications where a broad frequency response is required, such as in oscilloscopes and spectrum analyzers.

Applications of Amplifiers

Amplifiers are used in a wide range of applications, from consumer electronics to industrial systems. Some common applications include:

Audio Systems: Amplifiers are used to drive speakers and headphones, providing the necessary power to produce sound.
Communication Systems: Amplifiers are used to boost signals in radios, televisions, and wireless devices, ensuring clear and reliable communication.
Instrumentation: Amplifiers are used in measurement and testing equipment, such as oscilloscopes and spectrum analyzers, to amplify weak signals for accurate measurement.
Industrial Control: Amplifiers are used in control systems to drive motors, actuators, and other devices, providing the necessary power and precision.

Key Considerations for Selecting Amplifiers

When selecting an amplifier for a specific application, several key considerations should be taken into account:

Gain: The gain of an amplifier determines how much the input signal is amplified. It is important to select an amplifier with the appropriate gain for the application.
Frequency Response: The frequency response of an amplifier determines the range of frequencies it can amplify effectively. It is important to select an amplifier with a frequency response that matches the application's requirements.
Power Output: The power output of an amplifier determines how much power it can deliver to the load. It is important to select an amplifier with a power output that meets the application's requirements.
Distortion: The distortion of an amplifier determines how much the output signal deviates from the input signal. It is important to select an amplifier with low distortion for applications that require high fidelity.
Efficiency: The efficiency of an amplifier determines how much of the input power is converted to output power. It is important to select an amplifier with high efficiency for applications where power consumption is a concern.

💡 Note: Always refer to the amplifier's datasheet for detailed specifications and characteristics to ensure it meets the application's requirements.

Conclusion

Amplifiers play a crucial role in various electronic systems, and understanding the classification of amplifiers is essential for selecting the right type for specific applications. Whether you need a voltage amplifier for an audio system, a current amplifier for a motor control circuit, or a power amplifier for a high-power application, knowing the different types and their characteristics will help you make an informed decision. By considering factors like gain, frequency response, power output, distortion, and efficiency, you can choose the amplifier that best suits your needs and ensures optimal performance.
