Understanding the intricacies of IP addressing is crucial for anyone involved in network administration or IT. One of the fundamental concepts in this realm is the Class C Address. This type of IP address is part of the broader classification system that divides IP addresses into different classes based on their range and intended use. In this post, we will delve into the specifics of Class C Addresses, their structure, applications, and how they fit into the broader landscape of IP addressing.
What is a Class C Address?
A Class C Address is a type of IP address that falls within the range of 192.0.0.0 to 223.255.255.255. These addresses are designed for small to medium-sized networks and are characterized by their 24-bit network prefix. This means that the first three octets (24 bits) of the address are used to identify the network, while the remaining octet (8 bits) is used for host addresses within that network.
Structure of a Class C Address
The structure of a Class C Address can be broken down as follows:
- The first octet ranges from 192 to 223.
- The second and third octets can range from 0 to 255.
- The fourth octet can also range from 0 to 255, but it is used for host addresses.
For example, an IP address like 192.168.1.10 would be a Class C Address. Here, 192 is the first octet, 168 is the second, 1 is the third, and 10 is the fourth.
Subnetting a Class C Address
Subnetting is the process of dividing a network into smaller, more manageable sub-networks. This is particularly useful for Class C Addresses because they have a limited number of host addresses. By subnetting, you can create multiple smaller networks within the larger Class C Address range.
To subnet a Class C Address, you need to borrow bits from the host portion of the address. For example, if you borrow 2 bits, you can create 4 subnets, each with 62 usable host addresses (since 2 bits give you 4 combinations, and you subtract 2 for the network and broadcast addresses).
Here is a simple example of subnetting a Class C Address:
| Subnet Mask | Number of Subnets | Number of Hosts per Subnet |
|---|---|---|
| 255.255.255.192 | 2 | 62 |
| 255.255.255.224 | 4 | 30 |
| 255.255.255.240 | 8 | 14 |
| 255.255.255.248 | 16 | 6 |
| 255.255.255.252 | 32 | 2 |
Note that the number of usable host addresses is always 2 less than the total number of addresses in the subnet, accounting for the network and broadcast addresses.
💡 Note: When subnetting, it’s important to plan carefully to ensure that you have enough subnets and host addresses for your network needs.
Applications of Class C Addresses
Class C Addresses are commonly used in small to medium-sized networks, such as those found in small businesses, home networks, and educational institutions. Their limited range of host addresses makes them ideal for environments where the number of devices is relatively small. However, with the advent of subnetting, Class C Addresses can be effectively used in larger networks as well.
Some common applications include:
- Home networks: Many home routers use Class C Addresses to assign IP addresses to devices within the home network.
- Small businesses: Small offices and retail stores often use Class C Addresses to manage their network infrastructure.
- Educational institutions: Schools and universities may use Class C Addresses for smaller departments or labs.
Class C Addresses in Modern Networking
With the introduction of Classless Inter-Domain Routing (CIDR), the traditional class-based addressing system has become less relevant. CIDR allows for more flexible and efficient use of IP addresses by eliminating the need for fixed class boundaries. However, understanding Class C Addresses is still important for network administrators, especially when dealing with legacy systems or when troubleshooting network issues.
CIDR notation uses a slash followed by a number to indicate the number of bits used for the network portion of the address. For example, a Class C Address with a subnet mask of 255.255.255.0 would be written as 192.168.1.0/24. This notation is more concise and provides a clearer indication of the network and host portions of the address.
Class C Addresses and Private IP Ranges

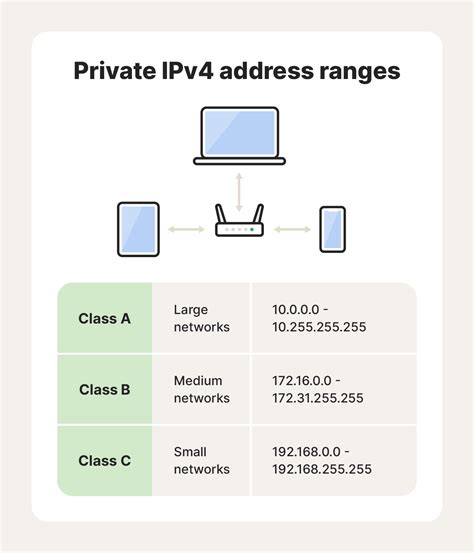

It’s important to note that Class C Addresses can also fall within the private IP address ranges defined by RFC 1918. These ranges are not routable on the public internet and are used for private networks. The private Class C Address range is 192.168.0.0 to 192.168.255.255. This range is commonly used in home and small business networks.
Private IP addresses are essential for conserving the limited number of public IP addresses available. They allow devices within a private network to communicate with each other without needing a unique public IP address for each device. Network Address Translation (NAT) is often used to translate private IP addresses to a public IP address when communicating with the internet.
Class C Addresses and IPv6
With the depletion of IPv4 addresses, the transition to IPv6 is underway. IPv6 addresses are 128 bits long, providing a vastly larger address space compared to IPv4. While Class C Addresses are specific to IPv4, understanding the concepts of IP addressing and subnetting is still relevant in the context of IPv6.
IPv6 addresses are not classified into classes like IPv4. Instead, they use a different addressing scheme that includes global unicast addresses, unique local addresses, and link-local addresses. However, the principles of subnetting and network design are similar, and knowledge of Class C Addresses can provide a solid foundation for understanding IPv6 addressing.
In conclusion, Class C Addresses play a crucial role in the world of IP addressing, particularly for small to medium-sized networks. Their structure, subnetting capabilities, and applications make them a valuable tool for network administrators. While the traditional class-based system is being phased out in favor of CIDR and IPv6, understanding Class C Addresses remains essential for managing and troubleshooting networks effectively. Whether you’re dealing with legacy systems or planning for future network expansions, a solid grasp of Class C Addresses will serve you well in the ever-evolving field of network administration.
