Class 2 Lever

Understanding the mechanics of a Class 2 Lever is fundamental for anyone interested in physics, engineering, or even everyday problem-solving. Levers are simple machines that make work easier by allowing us to apply a smaller force over a greater distance to move a larger load. A Class 2 Lever is one of the three types of levers, each distinguished by the placement of the fulcrum, load, and effort. In a Class 2 Lever, the load is between the fulcrum and the effort. This configuration is common in various tools and machines, from wheelbarrows to nutcrackers.

Table of Contents

Understanding Levers

Before diving into the specifics of a Class 2 Lever, it’s essential to understand the basic components of any lever:

Fulcrum: The point around which the lever pivots.
Load: The object or resistance that the lever is moving.
Effort: The force applied to the lever to move the load.

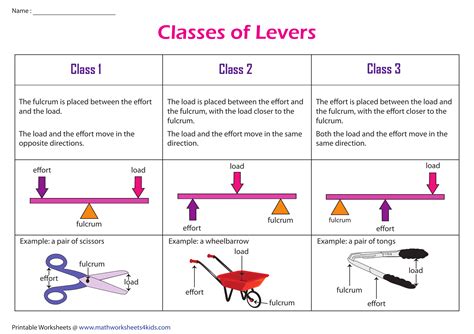

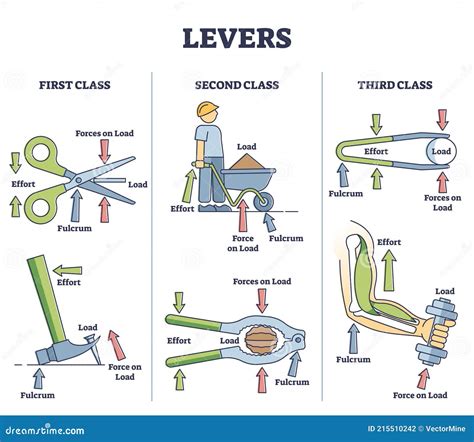

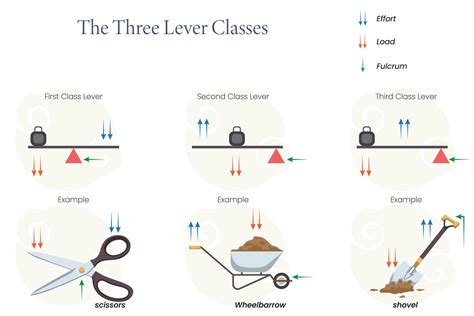

Levers are categorized into three classes based on the arrangement of these components:

Class 1 Lever: The fulcrum is between the load and the effort (e.g., a seesaw).
Class 2 Lever: The load is between the fulcrum and the effort (e.g., a wheelbarrow).
Class 3 Lever: The effort is between the fulcrum and the load (e.g., a pair of tweezers).

Characteristics of a Class 2 Lever

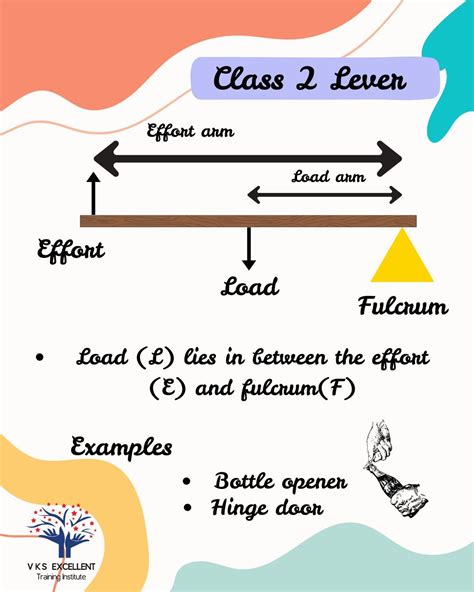

A Class 2 Lever is characterized by the load being positioned between the fulcrum and the effort. This arrangement allows for mechanical advantage, meaning the effort required to move the load is less than the load itself. The mechanical advantage is calculated as the ratio of the load to the effort.

Some key characteristics of a Class 2 Lever include:

The load is closer to the fulcrum than the effort, which reduces the amount of force needed to lift the load.
The effort arm is longer than the load arm, providing a mechanical advantage.
Examples include wheelbarrows, nutcrackers, and bottle openers.

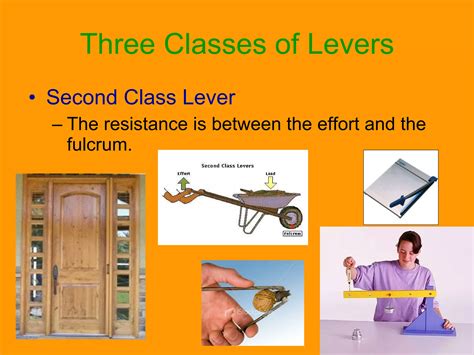

Examples of Class 2 Levers

To better understand how a Class 2 Lever works, let’s look at some common examples:

Wheelbarrow

A wheelbarrow is a classic example of a Class 2 Lever. The wheel acts as the fulcrum, the load (e.g., soil or debris) is placed in the bucket, and the effort is applied at the handles. The longer the handles, the greater the mechanical advantage, making it easier to lift and move heavy loads.

Nutcracker

A nutcracker is another common Class 2 Lever. The fulcrum is the pivot point where the two arms meet, the load is the nut placed between the jaws, and the effort is applied by squeezing the handles together. This configuration allows for a significant mechanical advantage, making it easy to crack open hard nuts.

Bottle Opener

A bottle opener is a simple tool that uses the principles of a Class 2 Lever to remove bottle caps. The fulcrum is the edge of the opener that rests against the bottle cap, the load is the cap itself, and the effort is applied by pressing down on the handle. This design makes it easy to remove caps from bottles with minimal force.

Mechanical Advantage of a Class 2 Lever

The mechanical advantage of a Class 2 Lever is determined by the ratio of the effort arm to the load arm. The longer the effort arm, the greater the mechanical advantage. This can be expressed mathematically as:

Mechanical Advantage (MA) = Effort Arm / Load Arm

For example, in a wheelbarrow, if the effort arm (distance from the fulcrum to the handles) is 4 times longer than the load arm (distance from the fulcrum to the center of the load), the mechanical advantage would be 4. This means that the effort required to lift the load would be one-fourth of the load’s weight.

Applications of Class 2 Levers

Class 2 Levers are widely used in various applications due to their mechanical advantage. Some common applications include:

Construction: Wheelbarrows and other lifting tools are essential for moving heavy materials.
Kitchen Tools: Nutcrackers and bottle openers are everyday items that utilize the principles of a Class 2 Lever.
Industrial Machinery: Many machines use Class 2 Levers to amplify force and move heavy loads efficiently.

Advantages and Disadvantages of Class 2 Levers

Like any mechanical system, Class 2 Levers have their advantages and disadvantages:

Advantages

Mechanical Advantage: The primary advantage is the mechanical advantage, which allows for easier lifting and moving of heavy loads.
Simplicity: Class 2 Levers are simple to design and use, making them versatile and widely applicable.
Efficiency: They can be very efficient in converting effort into work done.

Disadvantages

Limited Range of Motion: The range of motion can be limited, especially in tools like nutcrackers.
Potential for Injury: If not used correctly, the mechanical advantage can lead to injuries, especially if the effort arm is too long.
Wear and Tear: The fulcrum and other moving parts can experience wear and tear over time.

Design Considerations for Class 2 Levers

When designing a Class 2 Lever, several factors need to be considered to ensure optimal performance and safety:

Material Selection: Choose materials that are strong enough to withstand the forces involved.
Fulcrum Design: The fulcrum should be stable and able to withstand the load without excessive wear.
Effort Arm Length: The length of the effort arm should be carefully calculated to provide the desired mechanical advantage without compromising safety.
Load Distribution: Ensure that the load is evenly distributed to prevent imbalance and potential failure.

🔧 Note: Always consider the safety aspects when designing or using a Class 2 Lever. Ensure that the materials and design can handle the expected loads and forces.

Safety Precautions

Using a Class 2 Lever safely is crucial to prevent injuries and ensure longevity. Here are some safety precautions to keep in mind:

Inspect Regularly: Regularly inspect the lever for any signs of wear or damage.
Use Appropriately: Use the lever for its intended purpose and avoid overloading it.
Maintain Proper Technique: Apply force in a controlled manner to avoid sudden movements that could cause injury.
Wear Protective Gear: If necessary, wear protective gear such as gloves or safety glasses.

🛑 Note: Never exceed the recommended load capacity of a Class 2 Lever. Overloading can lead to failure and potential injury.

Conclusion

A Class 2 Lever is a fundamental mechanical device that provides significant mechanical advantage by positioning the load between the fulcrum and the effort. This configuration is found in various tools and machines, from wheelbarrows to nutcrackers, making it an essential concept in physics and engineering. Understanding the principles of a Class 2 Lever can help in designing efficient tools and machines, as well as in everyday problem-solving. By considering the design factors and safety precautions, one can effectively utilize Class 2 Levers to make work easier and more efficient.
