Understanding the concept of circuits in parallel is fundamental for anyone delving into electronics and electrical engineering. Parallel circuits are a cornerstone of electrical design, offering unique advantages and challenges that set them apart from series circuits. This post will explore the intricacies of parallel circuits, their applications, and how to analyze them effectively.
What Are Circuits In Parallel?
In a parallel circuit, components are connected in such a way that the current has multiple paths to flow through. This configuration ensures that each component receives the same voltage, regardless of the others. The total current in a parallel circuit is the sum of the currents flowing through each branch.

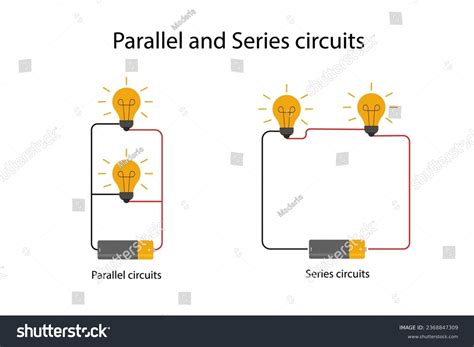

To visualize this, imagine a simple parallel circuit with two resistors. The voltage across each resistor is the same, but the current through each resistor can differ based on its resistance value. This characteristic makes parallel circuits versatile for various applications, from simple household wiring to complex electronic devices.
Key Characteristics of Circuits In Parallel
Parallel circuits have several key characteristics that make them distinct from series circuits:
- Voltage Consistency: The voltage across each component in a parallel circuit is the same.
- Current Division: The total current is divided among the branches, with each branch carrying a portion of the total current.
- Independent Operation: The failure of one component does not affect the operation of the others.
- Total Resistance: The total resistance of a parallel circuit is less than the resistance of any individual component.
These characteristics make parallel circuits ideal for applications where multiple devices need to operate independently while sharing the same voltage source.
Analyzing Circuits In Parallel
Analyzing parallel circuits involves understanding how to calculate the total resistance, current, and voltage. Here are the steps to analyze a simple parallel circuit:

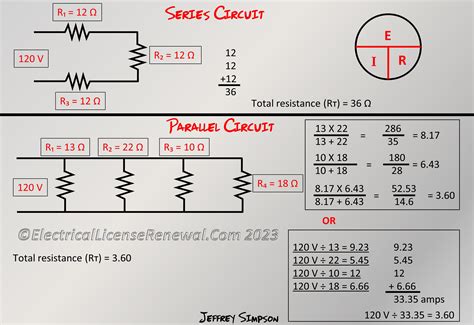

Calculating Total Resistance
The total resistance (R_total) of a parallel circuit can be calculated using the formula:
1/R_total = 1/R1 + 1/R2 + 1/R3 + ... + 1/Rn
Where R1, R2, R3, ..., Rn are the resistances of the individual components.
For example, if you have three resistors in parallel with values of 10 ohms, 20 ohms, and 30 ohms, the total resistance would be calculated as follows:
1/R_total = 1/10 + 1/20 + 1/30
1/R_total = 0.1 + 0.05 + 0.0333
1/R_total = 0.1833
R_total = 1/0.1833 ≈ 5.46 ohms
💡 Note: The total resistance in a parallel circuit is always less than the smallest resistance in the circuit.
Calculating Total Current
The total current (I_total) in a parallel circuit is the sum of the currents flowing through each branch. The current through each branch can be calculated using Ohm's Law (I = V/R), where V is the voltage across the branch and R is the resistance of the branch.
For example, if the voltage across each branch is 12 volts and the resistances are 10 ohms, 20 ohms, and 30 ohms, the currents would be:
I1 = 12V / 10Ω = 1.2A
I2 = 12V / 20Ω = 0.6A
I3 = 12V / 30Ω = 0.4A
The total current would be:
I_total = I1 + I2 + I3 = 1.2A + 0.6A + 0.4A = 2.2A
Voltage Across Each Branch
In a parallel circuit, the voltage across each branch is the same as the voltage of the source. This is a fundamental characteristic that simplifies the analysis of parallel circuits.
For example, if the source voltage is 12 volts, the voltage across each resistor in the parallel circuit will also be 12 volts.
Applications of Circuits In Parallel
Parallel circuits are widely used in various applications due to their unique properties. Some common applications include:
- Household Wiring: Parallel circuits are used in household wiring to ensure that each appliance receives the same voltage.
- Electronic Devices: Many electronic devices, such as computers and smartphones, use parallel circuits to power different components independently.
- Automotive Systems: Parallel circuits are used in automotive systems to power various components, such as headlights, taillights, and interior lights.
- Lighting Systems: Parallel circuits are commonly used in lighting systems to ensure that each light bulb receives the same voltage.
These applications highlight the versatility and importance of parallel circuits in modern technology.
Advantages and Disadvantages of Circuits In Parallel
Like any electrical configuration, parallel circuits have their advantages and disadvantages. Understanding these can help in making informed design decisions.
Advantages
- Independent Operation: Each component in a parallel circuit operates independently, so the failure of one component does not affect the others.
- Voltage Consistency: All components receive the same voltage, ensuring consistent performance.
- Flexibility: Parallel circuits can be easily expanded by adding more branches without affecting the existing components.
Disadvantages
- Complexity: Analyzing parallel circuits can be more complex than series circuits, especially with multiple branches.
- Higher Current Demand: The total current in a parallel circuit is the sum of the currents in each branch, which can lead to higher current demands on the power source.
- Safety Concerns: If not properly designed, parallel circuits can pose safety risks, such as short circuits and overheating.
Understanding these advantages and disadvantages can help in designing efficient and safe parallel circuits.
Safety Considerations for Circuits In Parallel
When working with parallel circuits, safety should always be a top priority. Here are some important safety considerations:
- Proper Wiring: Ensure that all connections are secure and properly insulated to prevent short circuits.
- Current Ratings: Choose components with appropriate current ratings to handle the total current in the circuit.
- Fuse Protection: Use fuses or circuit breakers to protect the circuit from overcurrent conditions.
- Grounding: Properly ground the circuit to prevent electrical shocks and ensure safety.
By following these safety considerations, you can ensure that your parallel circuits operate safely and efficiently.
🔧 Note: Always double-check your calculations and connections before powering up a parallel circuit to avoid potential hazards.
Troubleshooting Parallel Circuits
Troubleshooting parallel circuits involves identifying and resolving issues that may arise during operation. Here are some common problems and their solutions:
Short Circuits
A short circuit occurs when two points in the circuit are directly connected, bypassing the intended path. This can cause excessive current flow and potential damage to components.
To troubleshoot a short circuit:
- Check for loose or damaged wires that may be causing a direct connection.
- Use a multimeter to measure the resistance between points in the circuit to identify the short.
- Replace any damaged components and ensure all connections are secure.
Open Circuits
An open circuit occurs when the path for current flow is broken, preventing current from reaching certain components. This can cause those components to malfunction or not function at all.
To troubleshoot an open circuit:
- Check for broken or disconnected wires.
- Use a multimeter to measure the continuity of the circuit to identify the break.
- Replace any damaged components and ensure all connections are secure.
Overheating
Overheating can occur due to excessive current flow or improper component ratings. This can damage components and pose a safety risk.
To troubleshoot overheating:
- Check the current ratings of all components to ensure they can handle the total current.
- Use a multimeter to measure the current flow in each branch to identify any excessive current.
- Ensure proper ventilation and cooling for the circuit.
By following these troubleshooting steps, you can identify and resolve issues in your parallel circuits effectively.
🛠️ Note: Always unplug the circuit from the power source before troubleshooting to avoid electrical shocks.
Examples of Circuits In Parallel
To better understand parallel circuits, let's look at some examples:
Simple Parallel Circuit
Consider a simple parallel circuit with two resistors, R1 and R2, connected to a voltage source V. The total resistance (R_total) can be calculated as follows:
1/R_total = 1/R1 + 1/R2
For example, if R1 = 10 ohms and R2 = 20 ohms, the total resistance would be:
1/R_total = 1/10 + 1/20
1/R_total = 0.1 + 0.05
1/R_total = 0.15
R_total = 1/0.15 ≈ 6.67 ohms
Parallel Circuit with Multiple Branches
Consider a parallel circuit with three resistors, R1, R2, and R3, connected to a voltage source V. The total resistance (R_total) can be calculated as follows:
1/R_total = 1/R1 + 1/R2 + 1/R3
For example, if R1 = 10 ohms, R2 = 20 ohms, and R3 = 30 ohms, the total resistance would be:
1/R_total = 1/10 + 1/20 + 1/30
1/R_total = 0.1 + 0.05 + 0.0333
1/R_total = 0.1833
R_total = 1/0.1833 ≈ 5.46 ohms
Parallel Circuit with a Voltage Source and Resistors
Consider a parallel circuit with a voltage source of 12 volts and three resistors, R1 = 10 ohms, R2 = 20 ohms, and R3 = 30 ohms. The currents through each resistor can be calculated as follows:
I1 = V/R1 = 12V / 10Ω = 1.2A
I2 = V/R2 = 12V / 20Ω = 0.6A
I3 = V/R3 = 12V / 30Ω = 0.4A
The total current would be:
I_total = I1 + I2 + I3 = 1.2A + 0.6A + 0.4A = 2.2A
These examples illustrate how to analyze parallel circuits with different configurations and components.
Conclusion
Parallel circuits are a fundamental concept in electronics and electrical engineering, offering unique advantages such as voltage consistency and independent operation of components. Understanding how to analyze and design parallel circuits is crucial for various applications, from household wiring to complex electronic devices. By following the principles and safety considerations outlined in this post, you can effectively work with parallel circuits and ensure their safe and efficient operation.
