Understanding the fundamentals of electrochemical processes is crucial for anyone involved in fields such as materials science, corrosion engineering, and battery technology. One of the key concepts in this domain is the distinction between cathodic vs anodic reactions. These reactions are fundamental to how electrochemical cells operate, whether they are used for energy storage, corrosion prevention, or other applications. This blog post will delve into the differences between cathodic and anodic reactions, their roles in electrochemical processes, and their practical applications.
Understanding Cathodic and Anodic Reactions
In an electrochemical cell, two types of reactions occur: cathodic and anodic. These reactions are essential for the functioning of batteries, fuel cells, and other electrochemical devices. Let's break down each type of reaction to understand their roles better.
Cathodic Reactions
A cathodic reaction, also known as a reduction reaction, occurs at the cathode of an electrochemical cell. In this process, electrons are gained by the reactants, leading to a reduction in their oxidation state. The general form of a cathodic reaction can be written as:
Oxidized Species + e- → Reduced Species
For example, in a zinc-copper cell, the cathodic reaction at the copper electrode is:
Cu2+ + 2e- → Cu
Here, copper ions (Cu2+) gain electrons to form solid copper (Cu).
Anodic Reactions
An anodic reaction, also known as an oxidation reaction, occurs at the anode of an electrochemical cell. In this process, electrons are lost by the reactants, leading to an increase in their oxidation state. The general form of an anodic reaction can be written as:
Reduced Species → Oxidized Species + e-
For example, in a zinc-copper cell, the anodic reaction at the zinc electrode is:
Zn → Zn2+ + 2e-
Here, zinc (Zn) loses electrons to form zinc ions (Zn2+).
Cathodic vs Anodic Reactions in Electrochemical Cells
In an electrochemical cell, the cathodic and anodic reactions work together to generate an electric current. The anode is the site of oxidation, where electrons are released, while the cathode is the site of reduction, where electrons are accepted. This flow of electrons creates an electric current that can be harnessed for various applications.
Let's consider a simple electrochemical cell, such as a zinc-copper cell, to illustrate this process:
- The anode (zinc electrode) undergoes an oxidation reaction, releasing electrons:
- The cathode (copper electrode) undergoes a reduction reaction, accepting electrons:
Zn → Zn2+ + 2e-
Cu2+ + 2e- → Cu
The electrons flow from the anode to the cathode through an external circuit, creating an electric current. This current can be used to power devices or perform other useful work.
Practical Applications of Cathodic and Anodic Reactions
The principles of cathodic and anodic reactions are applied in various practical scenarios, including batteries, fuel cells, and corrosion prevention. Let's explore some of these applications in detail.
Batteries
Batteries are a common application of cathodic and anodic reactions. In a battery, the anode and cathode are separated by an electrolyte, which allows ions to move between the electrodes but prevents direct contact. During discharge, the anode undergoes an oxidation reaction, releasing electrons, while the cathode undergoes a reduction reaction, accepting electrons. This flow of electrons creates an electric current that can be used to power devices.
For example, in a lithium-ion battery, the anodic reaction at the anode (typically made of graphite) is:
LiC6 → Li+ + C6 + e-
And the cathodic reaction at the cathode (typically made of a lithium metal oxide) is:
Li1-xCoO2 + xLi+ + xe- → LiCoO2
During charging, the reactions are reversed, allowing the battery to store energy.
Fuel Cells
Fuel cells are another important application of cathodic and anodic reactions. In a fuel cell, a fuel (such as hydrogen) is oxidized at the anode, releasing electrons, while an oxidant (such as oxygen) is reduced at the cathode, accepting electrons. This process generates an electric current that can be used to power devices or vehicles.
For example, in a hydrogen fuel cell, the anodic reaction at the anode is:
H2 → 2H+ + 2e-
And the cathodic reaction at the cathode is:
O2 + 4H+ + 4e- → 2H2O
This process generates water as a byproduct, making fuel cells a clean and efficient source of energy.
Corrosion Prevention
Cathodic and anodic reactions also play a crucial role in corrosion prevention. Corrosion is an electrochemical process where a metal is oxidized, leading to its degradation. To prevent corrosion, cathodic protection methods are often employed. In cathodic protection, a sacrificial anode is used to protect the metal structure from corrosion. The sacrificial anode undergoes an oxidation reaction, releasing electrons, while the metal structure remains in a reduced state, preventing corrosion.
For example, in a cathodic protection system for a steel pipeline, the anodic reaction at the sacrificial anode (typically made of zinc or magnesium) is:
Zn → Zn2+ + 2e-
And the cathodic reaction at the steel pipeline is:
O2 + 2H2O + 4e- → 4OH-
This process protects the steel pipeline from corrosion by maintaining it in a reduced state.
Cathodic vs Anodic Protection in Corrosion Control
Cathodic protection is a widely used method for preventing corrosion in metal structures. It involves making the metal structure the cathode of an electrochemical cell, thereby preventing it from undergoing oxidation. There are two main types of cathodic protection: sacrificial anode cathodic protection and impressed current cathodic protection.

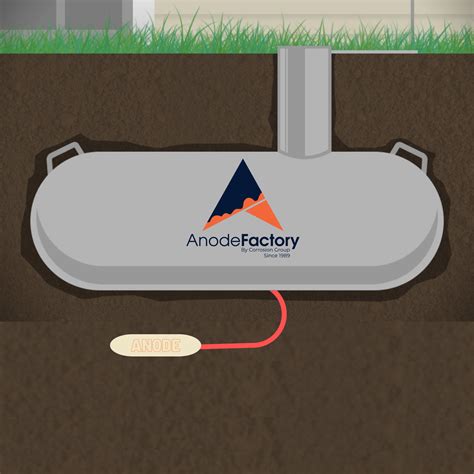

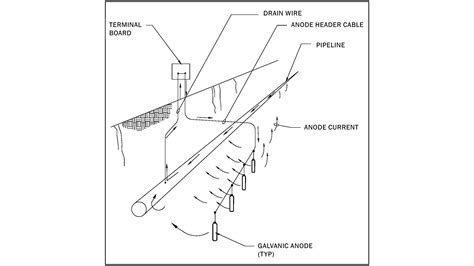

Sacrificial Anode Cathodic Protection
In sacrificial anode cathodic protection, a more active metal (such as zinc or magnesium) is connected to the metal structure to be protected. The sacrificial anode undergoes an oxidation reaction, releasing electrons, while the metal structure remains in a reduced state, preventing corrosion. This method is simple and effective for small to medium-sized structures.
For example, in a sacrificial anode cathodic protection system for a steel pipeline, the anodic reaction at the sacrificial anode is:
Zn → Zn2+ + 2e-
And the cathodic reaction at the steel pipeline is:
O2 + 2H2O + 4e- → 4OH-
This process protects the steel pipeline from corrosion by maintaining it in a reduced state.
Impressed Current Cathodic Protection
In impressed current cathodic protection, an external power source is used to drive the cathodic reaction. A DC current is applied to the metal structure, making it the cathode of an electrochemical cell. This method is more effective for large structures and can provide more control over the protection process.
For example, in an impressed current cathodic protection system for a steel pipeline, the cathodic reaction at the steel pipeline is:
O2 + 2H2O + 4e- → 4OH-
And the anodic reaction at the anode (typically made of a non-consumable material such as platinum or mixed metal oxide) is:
2H2O → O2 + 4H+ + 4e-
This process protects the steel pipeline from corrosion by maintaining it in a reduced state.
Here is a comparison of the two types of cathodic protection:
| Feature | Sacrificial Anode Cathodic Protection | Impressed Current Cathodic Protection |
|---|---|---|
| Power Source | Sacrificial anode | External power source |
| Anode Material | More active metal (e.g., zinc, magnesium) | Non-consumable material (e.g., platinum, mixed metal oxide) |
| Effectiveness | Simple and effective for small to medium-sized structures | More effective for large structures, provides more control |
| Maintenance | Requires periodic replacement of sacrificial anodes | Requires periodic inspection and maintenance of the power source and anodes |
🔍 Note: The choice between sacrificial anode cathodic protection and impressed current cathodic protection depends on the size of the structure, the environment, and the specific requirements of the application.
Cathodic vs Anodic Reactions in Electroplating
Electroplating is another important application of cathodic and anodic reactions. In electroplating, a thin layer of metal is deposited onto a substrate to improve its properties, such as corrosion resistance, wear resistance, or aesthetic appeal. The process involves immersing the substrate in an electrolyte solution containing ions of the metal to be deposited and applying an electric current.
For example, in the electroplating of copper onto a steel substrate, the cathodic reaction at the steel substrate is:
Cu2+ + 2e- → Cu
And the anodic reaction at the anode (typically made of the same metal as the deposit, in this case, copper) is:
Cu → Cu2+ + 2e-
This process deposits a thin layer of copper onto the steel substrate, improving its properties.
Cathodic vs Anodic Reactions in Electrolysis
Electrolysis is a process that uses an electric current to drive a chemical reaction. In electrolysis, an electric current is passed through an electrolyte solution, causing cathodic and anodic reactions to occur at the electrodes. This process can be used to produce various chemicals, such as hydrogen and oxygen from water, or to refine metals.
For example, in the electrolysis of water, the cathodic reaction at the cathode is:
2H2O + 2e- → H2 + 2OH-
And the anodic reaction at the anode is:
2H2O → O2 + 4H+ + 4e-
This process produces hydrogen and oxygen gases, which can be used for various applications, such as fuel cells or welding.
In the electrolysis of a metal salt solution, such as copper sulfate, the cathodic reaction at the cathode is:
Cu2+ + 2e- → Cu
And the anodic reaction at the anode is:
2H2O → O2 + 4H+ + 4e-
This process deposits a thin layer of copper onto the cathode, which can be used to refine the metal.
Here is a summary of the cathodic and anodic reactions in electrolysis:
| Process | Cathodic Reaction | Anodic Reaction |
|---|---|---|
| Electrolysis of Water | 2H2O + 2e- → H2 + 2OH- | 2H2O → O2 + 4H+ + 4e- |
| Electrolysis of Copper Sulfate | Cu2+ + 2e- → Cu | 2H2O → O2 + 4H+ + 4e- |
🔍 Note: The choice of electrolyte solution and the applied voltage determine the specific reactions that occur during electrolysis.
Cathodic and anodic reactions are fundamental to the functioning of electrochemical cells and have a wide range of practical applications. Understanding these reactions is crucial for anyone involved in fields such as materials science, corrosion engineering, and battery technology. By harnessing the power of cathodic and anodic reactions, we can develop more efficient and sustainable technologies for energy storage, corrosion prevention, and chemical production.
In summary, cathodic and anodic reactions play a crucial role in electrochemical processes. Cathodic reactions involve the gain of electrons, leading to a reduction in the oxidation state of the reactants, while anodic reactions involve the loss of electrons, leading to an increase in the oxidation state of the reactants. These reactions are essential for the functioning of batteries, fuel cells, and other electrochemical devices. By understanding the principles of cathodic vs anodic reactions, we can develop more efficient and sustainable technologies for various applications.
