Cathode Ray Tube Theory

The world of electronics and technology has seen numerous innovations, but few have had as profound an impact as the Cathode Ray Tube Theory. This theory, which underpins the functioning of cathode ray tubes (CRTs), has been pivotal in the development of various electronic devices, from early televisions to oscilloscopes. Understanding the Cathode Ray Tube Theory provides insights into the fundamental principles of electron beam manipulation and its applications in modern technology.

Table of Contents

Understanding Cathode Ray Tubes

A cathode ray tube (CRT) is a vacuum tube containing an electron gun and a fluorescent screen used to view images. The Cathode Ray Tube Theory explains how these components work together to produce visual displays. The electron gun emits a stream of electrons, which are then accelerated and focused onto the screen. The screen is coated with a phosphor material that emits light when struck by the electrons, creating the visible image.

The Basics of Cathode Ray Tube Theory

The Cathode Ray Tube Theory is based on several key principles:

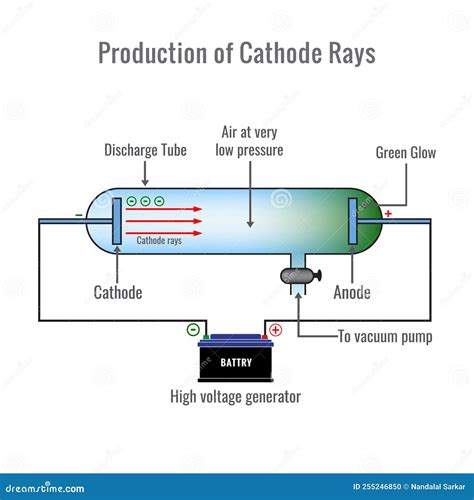

Electron Emission: The cathode, which is heated, emits electrons through a process called thermionic emission.
Electron Acceleration: The emitted electrons are accelerated towards the anode by a high voltage.
Electron Focusing: Magnetic or electrostatic fields are used to focus the electron beam onto a specific point on the screen.
Phosphor Excitation: When the electron beam hits the phosphor-coated screen, it excites the phosphor, causing it to emit light.

These principles work in tandem to create the images we see on CRT displays. The electron beam is deflected horizontally and vertically to scan the screen, creating a raster pattern. This pattern is synchronized with the video signal to produce a coherent image.

Historical Context of Cathode Ray Tubes

The development of the Cathode Ray Tube Theory can be traced back to the late 19th century. Early experiments by scientists like Ferdinand Braun and J.J. Thomson laid the groundwork for understanding electron behavior in vacuum tubes. Braun's invention of the cathode ray oscilloscope in 1897 was a significant milestone, allowing for the visualization of electrical signals.

In the early 20th century, the Cathode Ray Tube Theory was further refined, leading to the development of the first practical CRT displays. These displays were initially used in military and scientific applications but soon found their way into consumer electronics. By the mid-20th century, CRTs were the standard for television and computer monitors.

Applications of Cathode Ray Tube Theory

The Cathode Ray Tube Theory has a wide range of applications, from scientific instruments to consumer electronics. Some of the most notable applications include:

Televisions: CRTs were the dominant technology for television displays for decades. The Cathode Ray Tube Theory enabled the creation of high-quality images with good color reproduction.
Computer Monitors: Before the advent of LCD and LED displays, CRTs were the standard for computer monitors. They offered high resolution and refresh rates, making them ideal for gaming and graphic design.
Oscilloscopes: Oscilloscopes use CRTs to display electrical signals in real-time. The Cathode Ray Tube Theory allows for precise control of the electron beam, enabling accurate signal visualization.
Radar Systems: CRTs are used in radar systems to display the position and movement of objects. The Cathode Ray Tube Theory ensures that the electron beam can be quickly and accurately deflected to create a clear image.

While CRTs have largely been replaced by more modern display technologies, their principles continue to influence the development of new devices.

Advantages and Disadvantages of Cathode Ray Tubes

Cathode ray tubes have several advantages and disadvantages that are important to consider when understanding the Cathode Ray Tube Theory.

Advantages	Disadvantages
High resolution and contrast Good color reproduction Fast response times Durability and reliability	Large size and weight High power consumption Radiation emission Limited viewing angles

Despite their disadvantages, CRTs were widely used due to their superior image quality and reliability. The Cathode Ray Tube Theory provided the foundation for these advantages, making CRTs a staple in many electronic devices.

💡 Note: While CRTs are no longer commonly used, understanding the Cathode Ray Tube Theory is essential for appreciating the evolution of display technologies.

The Evolution of Display Technologies

The Cathode Ray Tube Theory paved the way for the development of more advanced display technologies. As research and development continued, new methods of manipulating electron beams and creating images were discovered. This led to the creation of liquid crystal displays (LCDs), plasma displays, and organic light-emitting diode (OLED) displays.

LCDs, for example, use a backlight and liquid crystals to create images. While they do not rely on the Cathode Ray Tube Theory, they benefit from the principles of electron manipulation and image formation developed through CRT research. Similarly, OLED displays use organic materials that emit light when an electric current is applied, offering even higher image quality and energy efficiency.

These advancements have led to thinner, lighter, and more energy-efficient displays, but the Cathode Ray Tube Theory remains a cornerstone of display technology. The principles of electron beam manipulation and phosphor excitation continue to influence the design and development of modern displays.

In conclusion, the Cathode Ray Tube Theory has played a crucial role in the development of electronic displays. From its early applications in televisions and computer monitors to its influence on modern display technologies, the theory has shaped the way we interact with visual information. Understanding the Cathode Ray Tube Theory provides valuable insights into the evolution of display technologies and their impact on our daily lives.
