Understanding the intricacies of network cabling is crucial for anyone involved in IT infrastructure. One of the fundamental aspects of this field is the Cat5 termination diagram. This diagram serves as a guide for properly terminating Cat5 cables, ensuring reliable and efficient network performance. Whether you are a seasoned network engineer or a beginner, mastering the Cat5 termination diagram is essential for creating robust and error-free network connections.
Understanding Cat5 Cables
Cat5 cables, short for Category 5 cables, are a type of twisted pair cable used for carrying signals. They are commonly used in Ethernet networks and support data transfer rates up to 100 Mbps. Cat5 cables consist of four pairs of twisted wires, each pair insulated with a different color to distinguish them easily. The twisting of the wires helps to reduce crosstalk and interference, ensuring a stable signal transmission.
Importance of Proper Termination
Proper termination of Cat5 cables is vital for maintaining the integrity of the network. Incorrect termination can lead to various issues, including:
- Signal degradation
- Interference
- Reduced data transfer rates
- Network downtime
By following a Cat5 termination diagram, you can ensure that the cables are terminated correctly, minimizing these risks and maximizing network performance.
The Cat5 Termination Diagram

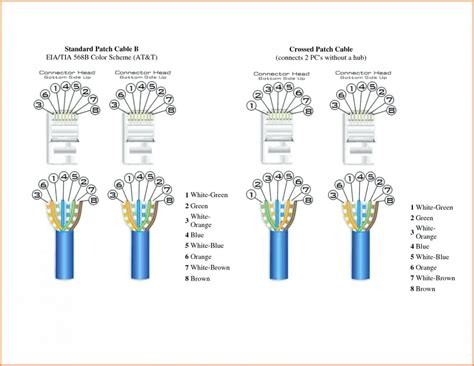

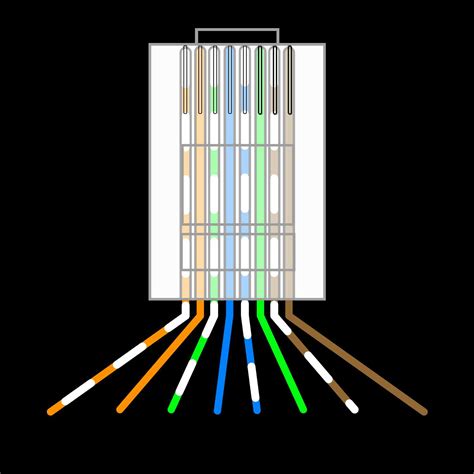

The Cat5 termination diagram provides a visual guide for connecting the wires to the RJ-45 connector. There are two common standards for Cat5 termination: T568A and T568B. Both standards use the same color code but in different orders. Understanding these standards is crucial for consistent and reliable network connections.
T568A and T568B Standards

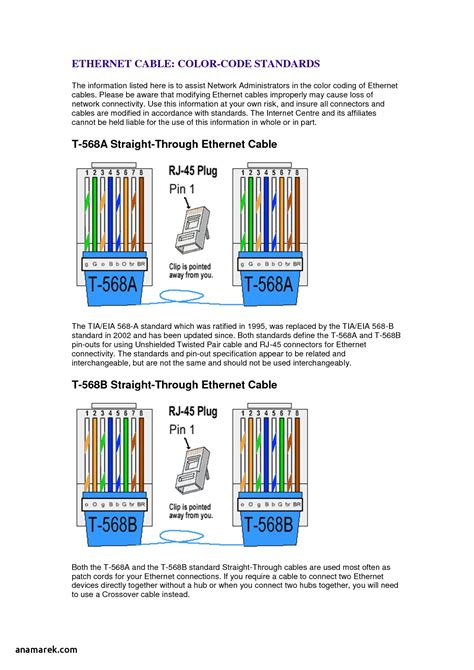

The T568A and T568B standards are the two most widely used wiring schemes for Cat5 cables. Each standard has its own Cat5 termination diagram, which specifies the order in which the wires should be connected to the RJ-45 connector.
T568A Standard
The T568A standard is the most commonly used wiring scheme for Cat5 cables. The Cat5 termination diagram for T568A is as follows:
| Pin Number | Wire Color |
|---|---|
| 1 | White/Green |
| 2 | Green |
| 3 | White/Orange |
| 4 | Blue |
| 5 | White/Blue |
| 6 | Orange |
| 7 | White/Brown |
| 8 | Brown |
T568B Standard

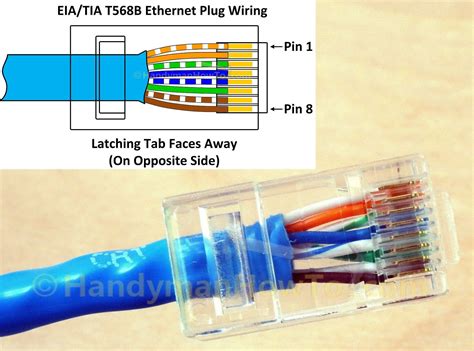

The T568B standard is less commonly used but is still important to know. The Cat5 termination diagram for T568B is as follows:
| Pin Number | Wire Color |
|---|---|
| 1 | White/Orange |
| 2 | Orange |
| 3 | White/Green |
| 4 | Blue |
| 5 | White/Blue |
| 6 | Green |
| 7 | White/Brown |
| 8 | Brown |
🔍 Note: It is essential to maintain consistency in the wiring scheme used throughout the network. Mixing T568A and T568B standards can lead to connectivity issues.
Steps for Cat5 Termination
Terminating a Cat5 cable involves several steps. Here is a detailed guide to help you through the process:
Gather the Necessary Tools
Before you begin, ensure you have the following tools:
- Cat5 cable
- RJ-45 connectors
- Crimping tool
- Cable stripper
- Cable tester (optional but recommended)
Strip the Cable
Using the cable stripper, carefully strip about 1 to 1.5 inches of the outer jacket from the Cat5 cable. Be cautious not to cut into the inner wires.
Untwist the Wires
Untwist the pairs of wires inside the cable. It is important to keep the wires as straight as possible to avoid any kinks or bends.
Arrange the Wires
Arrange the wires according to the Cat5 termination diagram you are using (T568A or T568B). Ensure that the wires are in the correct order and that the ends are flush with each other.
Insert the Wires into the RJ-45 Connector
Insert the arranged wires into the RJ-45 connector, ensuring that each wire goes into the correct pin. The wires should be inserted up to the connector’s end, with about 0.5 inches of the wires extending beyond the connector.
Crimp the Connector
Using the crimping tool, firmly crimp the RJ-45 connector onto the wires. Ensure that the connector is securely attached and that the wires are properly seated.
Test the Connection
Use a cable tester to verify that the cable is properly terminated and that all connections are secure. This step is crucial for ensuring that the cable will function correctly in the network.
🔍 Note: Always double-check the wiring order before crimping the connector. Incorrect wiring can lead to connectivity issues that may be difficult to diagnose.
Common Mistakes to Avoid
When terminating Cat5 cables, there are several common mistakes to avoid:
- Incorrect Wire Order: Ensure that the wires are arranged in the correct order according to the Cat5 termination diagram. Mixing up the wires can lead to connectivity issues.
- Inconsistent Wiring: Maintain consistency in the wiring scheme used throughout the network. Mixing T568A and T568B standards can cause problems.
- Poor Crimping: Ensure that the RJ-45 connector is properly crimped onto the wires. Poor crimping can result in loose connections and signal degradation.
- Excessive Bending: Avoid bending the cable sharply, as this can damage the wires and affect signal transmission.
Troubleshooting Cat5 Cable Issues
If you encounter issues with your Cat5 cables, here are some troubleshooting steps to help you identify and resolve the problem:
- Check the Wiring: Verify that the wires are arranged correctly according to the Cat5 termination diagram.
- Inspect the Connector: Ensure that the RJ-45 connector is properly crimped and that the wires are securely seated.
- Test the Cable: Use a cable tester to check for any breaks or shorts in the cable.
- Check for Interference: Ensure that the cable is not running parallel to power cables or other sources of interference.
🔍 Note: If you are still experiencing issues after following these troubleshooting steps, it may be necessary to replace the cable or seek professional assistance.
Best Practices for Cat5 Cable Management
Proper cable management is essential for maintaining a reliable and efficient network. Here are some best practices for managing Cat5 cables:
- Label Cables: Clearly label each cable with its destination and purpose to avoid confusion.
- Use Cable Ties: Use cable ties to organize and secure cables, preventing them from becoming tangled or damaged.
- Avoid Sharp Bends: Ensure that cables are not bent sharply, as this can damage the wires and affect signal transmission.
- Keep Cables Away from Interference: Avoid running Cat5 cables parallel to power cables or other sources of interference.
By following these best practices, you can ensure that your Cat5 cables remain in good condition and provide reliable network performance.
Mastering the Cat5 termination diagram is a fundamental skill for anyone involved in network infrastructure. By understanding the wiring standards, following the correct termination steps, and avoiding common mistakes, you can ensure reliable and efficient network performance. Proper cable management and troubleshooting techniques will further enhance the longevity and reliability of your network connections.
