In the realm of networking and data transmission, the quality and reliability of cables play a crucial role in ensuring efficient communication. Among the various types of cables available, the Cat Five Cable stands out as a versatile and widely used option. This cable, also known as Category 5 cable, is designed to support high-speed data transmission and is commonly used in Ethernet networks. Understanding the specifications, applications, and benefits of Cat Five Cable can help you make informed decisions when setting up or upgrading your network infrastructure.
Understanding Cat Five Cable
The Cat Five Cable is part of a family of twisted pair cables used for carrying signals. It is designed to support data transmission speeds up to 100 Mbps and is suitable for frequencies up to 100 MHz. The cable consists of four pairs of twisted copper wires, each pair insulated with a plastic jacket. The twisting of the wires helps to reduce electromagnetic interference (EMI) and crosstalk, ensuring reliable data transmission.
Specifications of Cat Five Cable
To fully appreciate the capabilities of Cat Five Cable, it is essential to understand its technical specifications:
- Data Transmission Speed: Up to 100 Mbps
- Frequency Range: Up to 100 MHz
- Wire Gauge: Typically 24 AWG (American Wire Gauge)
Connector Type: RJ-45 - Twisted Pairs: Four pairs of twisted copper wires
- Shielding: Unshielded Twisted Pair (UTP)
These specifications make Cat Five Cable suitable for a wide range of applications, from home networks to small office environments.
Applications of Cat Five Cable
The versatility of Cat Five Cable makes it a popular choice for various networking applications. Some of the common uses include:
- Ethernet Networks: Cat Five Cable is widely used in Ethernet networks to connect computers, routers, and switches.
- Telephone Systems: It can be used for voice communication in telephone systems, providing clear and reliable connections.
- Video Surveillance: Cat Five Cable is suitable for transmitting video signals in surveillance systems, ensuring high-quality footage.
- Home Automation: It can be used in home automation systems to connect various devices and sensors.
Additionally, Cat Five Cable is often used in structured cabling systems, where it forms the backbone of the network infrastructure. Its flexibility and ease of installation make it a preferred choice for both new installations and upgrades.
Benefits of Using Cat Five Cable
There are several benefits to using Cat Five Cable in your networking setup:
- Cost-Effective: Cat Five Cable is relatively inexpensive compared to higher-category cables, making it a cost-effective solution for many applications.
- Easy to Install: The cable is flexible and easy to install, requiring minimal tools and expertise.
- Reliable Performance: The twisted pair design reduces interference, ensuring reliable data transmission.
- Compatibility: Cat Five Cable is compatible with a wide range of networking devices and equipment.
These benefits make Cat Five Cable a practical choice for both residential and commercial networking needs.
Installation Tips for Cat Five Cable
Proper installation is crucial for ensuring the optimal performance of Cat Five Cable. Here are some tips to help you with the installation process:
- Plan Your Layout: Before installing the cable, plan the layout of your network to determine the length and routing of the cables.
- Use High-Quality Connectors: Invest in high-quality RJ-45 connectors to ensure a secure and reliable connection.
- Avoid Sharp Bends: Do not bend the cable at sharp angles, as this can damage the wires and affect performance.
- Secure the Cable: Use cable ties or clips to secure the cable along its route, preventing it from being damaged or dislodged.
- Test the Connection: After installation, test the connection to ensure that data is being transmitted correctly.
🔧 Note: Always follow the manufacturer's guidelines for installation and use the appropriate tools to ensure a secure and reliable connection.
Comparing Cat Five Cable with Other Categories
While Cat Five Cable is a popular choice, it is essential to understand how it compares to other categories of twisted pair cables. Here is a comparison of Cat Five Cable with Cat Fivee, Cat Six, and Cat Sixe cables:

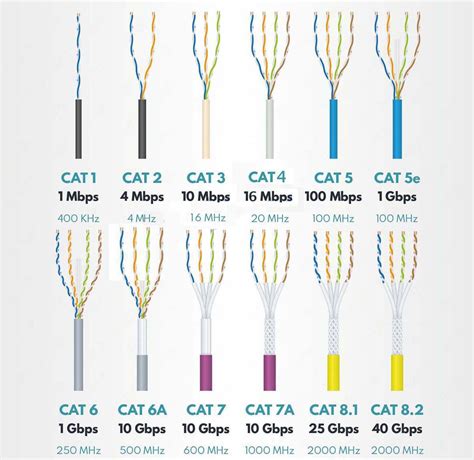

| Category | Data Transmission Speed | Frequency Range | Typical Applications |
|---|---|---|---|
| Cat Five | Up to 100 Mbps | Up to 100 MHz | Ethernet networks, telephone systems, video surveillance |
| Cat Fivee | Up to 1 Gbps | Up to 100 MHz | Gigabit Ethernet, voice and data networks |
| Cat Six | Up to 10 Gbps | Up to 250 MHz | High-speed data networks, server rooms, data centers |
| Cat Sixe | Up to 10 Gbps | Up to 500 MHz | High-speed data networks, server rooms, data centers |
As shown in the table, higher-category cables offer faster data transmission speeds and higher frequency ranges, making them suitable for more demanding applications. However, Cat Five Cable remains a reliable and cost-effective option for many networking needs.
Maintenance and Troubleshooting
To ensure the longevity and performance of your Cat Five Cable, regular maintenance and troubleshooting are essential. Here are some tips to help you maintain your cable and troubleshoot common issues:
- Inspect the Cable: Regularly inspect the cable for any signs of damage, such as cuts, cracks, or frayed wires.
- Check Connections: Ensure that all connections are secure and free from corrosion or dirt.
- Test Performance: Periodically test the cable's performance to ensure that it is transmitting data correctly.
- Avoid Interference: Keep the cable away from sources of electromagnetic interference, such as electrical motors or fluorescent lights.
If you encounter any issues with your Cat Five Cable, such as slow data transmission or intermittent connectivity, follow these troubleshooting steps:
- Check for Physical Damage: Inspect the cable for any visible damage and replace it if necessary.
- Verify Connections: Ensure that all connectors are properly seated and secure.
- Test with Different Devices: Connect the cable to different devices to determine if the issue is with the cable or the device.
- Use a Cable Tester: A cable tester can help you identify any faults or issues with the cable.
🛠️ Note: Always handle the cable with care to avoid damaging the wires or connectors. If you are unsure about any aspect of maintenance or troubleshooting, consult a professional.
In conclusion, the Cat Five Cable is a versatile and reliable option for networking and data transmission. Its cost-effectiveness, ease of installation, and reliable performance make it a popular choice for various applications. By understanding its specifications, benefits, and installation tips, you can make informed decisions when setting up or upgrading your network infrastructure. Regular maintenance and troubleshooting will ensure the longevity and performance of your Cat Five Cable, providing a stable and efficient networking solution for your needs.
