Caster And Camber

Understanding the intricacies of vehicle suspension systems is crucial for anyone interested in automotive performance and safety. Two key concepts that often come up in this context are caster and camber. These terms refer to specific angles of the suspension geometry that significantly impact how a vehicle handles and performs. Let's delve into what caster and camber are, their importance, and how they affect vehicle dynamics.

Table of Contents

Understanding Caster

Caster is the angle between the steering pivot (the point around which the wheel rotates) and a vertical line when viewed from the side of the vehicle. It is a critical factor in determining the vehicle's straight-line stability and steering feel. There are two types of caster: positive and negative.

Positive Caster: This occurs when the steering pivot is tilted backward from the vertical line. Positive caster helps the vehicle return to a straight path after turning, providing better stability and reducing the effort required to keep the vehicle on course.

Negative Caster: This occurs when the steering pivot is tilted forward from the vertical line. Negative caster can make the vehicle feel more responsive but can also cause instability, especially at high speeds.

Understanding Camber

Camber is the angle between the vertical axis of the wheels and the vertical axis of the vehicle when viewed from the front. It affects how the tires make contact with the road surface, influencing handling and tire wear. Camber can also be positive or negative.

Positive Camber: This occurs when the top of the tire is tilted outward from the vehicle's centerline. Positive camber can cause the inside edge of the tire to wear more quickly and may reduce cornering grip.

Negative Camber: This occurs when the top of the tire is tilted inward toward the vehicle's centerline. Negative camber can improve cornering grip by increasing the contact patch of the tire on the road surface, but it can also cause uneven tire wear if not properly adjusted.

Importance of Caster and Camber

Both caster and camber play vital roles in vehicle performance and safety. Properly adjusted caster and camber angles can enhance handling, stability, and tire life. Here are some key points to consider:

Handling: Correct caster and camber settings can improve the vehicle's responsiveness and stability, making it easier to control, especially during cornering and high-speed maneuvers.
Tire Wear: Incorrect caster and camber settings can lead to uneven tire wear, reducing the lifespan of the tires and potentially compromising safety.
Steering Feel: Proper caster settings can provide a more natural and responsive steering feel, enhancing the overall driving experience.
Stability: Positive caster helps the vehicle return to a straight path after turning, improving straight-line stability and reducing driver fatigue.

Adjusting Caster and Camber

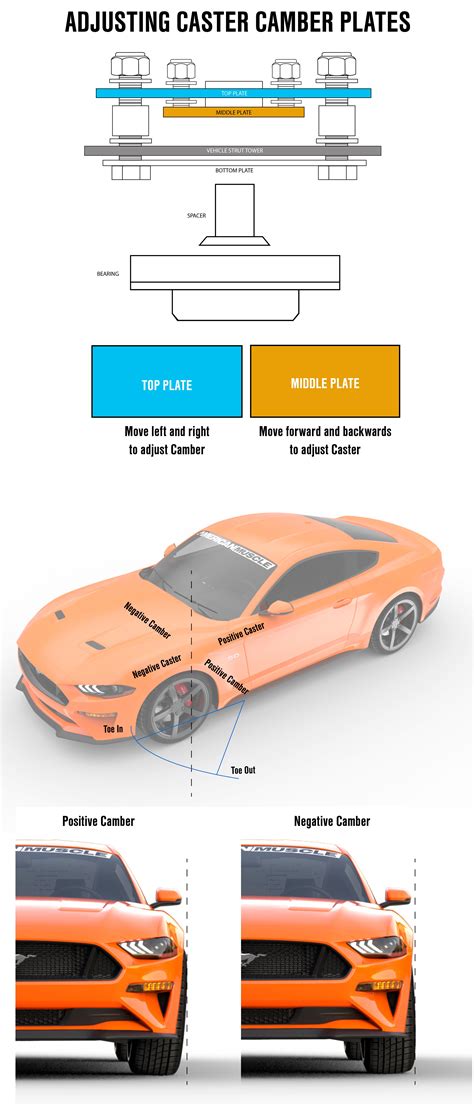

Adjusting caster and camber angles typically requires specialized tools and knowledge. Here are the general steps involved in adjusting these angles:

Preparation: Ensure the vehicle is on a level surface and the tires are properly inflated. Use a jack to lift the vehicle and secure it with jack stands for safety.
Measurement: Use a camber and caster gauge to measure the current angles. These tools provide accurate readings and are essential for making precise adjustments.

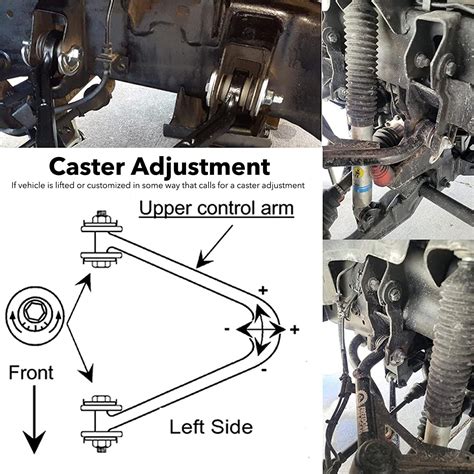

Adjustment: Loosen the bolts and nuts that secure the suspension components. Use adjustable camber and caster plates or eccentric bolts to make the necessary adjustments. Tighten the bolts and nuts securely once the desired angles are achieved.
Verification: Re-measure the angles to ensure they are within the manufacturer's specifications. Make any necessary fine-tuning adjustments.

🔧 Note: Always refer to the vehicle's service manual for specific instructions and recommended settings. Incorrect adjustments can compromise safety and handling.

Common Issues and Solutions

Several issues can arise from improper caster and camber settings. Here are some common problems and their solutions:

Uneven Tire Wear: If you notice uneven tire wear, it may indicate incorrect caster or camber settings. Check and adjust the angles as needed.
Pulling to One Side: If the vehicle pulls to one side while driving, it could be due to incorrect caster settings. Adjust the caster to ensure the vehicle tracks straight.
Vibration or Wandering: Excessive vibration or wandering can be caused by improper camber settings. Adjust the camber to improve stability and reduce vibration.

Regularly inspecting and adjusting caster and camber angles can help maintain optimal vehicle performance and safety. If you are unsure about making these adjustments yourself, consult a professional mechanic.

Impact on Different Driving Conditions

Caster and camber settings can significantly impact vehicle performance under different driving conditions. Here’s how they affect various scenarios:

High-Speed Driving: Positive caster and slight negative camber can enhance stability and reduce the risk of tire wear at high speeds.
Cornering: Negative camber can improve cornering grip by increasing the contact patch of the tires on the road surface.
Off-Road Driving: Adjusting caster and camber can help improve traction and stability on rough terrain, but it may require more frequent adjustments due to the varied conditions.

Understanding how caster and camber affect different driving conditions can help you make informed adjustments to optimize your vehicle's performance.

Advanced Considerations

For those looking to delve deeper into the world of caster and camber, there are several advanced considerations to keep in mind:

Toe Settings: Toe is another critical suspension angle that affects steering and tire wear. It is the angle between the longitudinal axis of the vehicle and the line of the tires when viewed from above. Proper toe settings can complement caster and camber adjustments for optimal performance.
Suspension Components: The quality and condition of suspension components, such as control arms, bushings, and ball joints, can affect caster and camber settings. Regular maintenance and replacement of worn components are essential for consistent performance.
Alignment Specifications: Always refer to the manufacturer's alignment specifications for your vehicle. These specifications provide the recommended caster and camber settings for optimal performance and safety.

By considering these advanced factors, you can achieve a more precise and effective suspension setup tailored to your specific driving needs.

Caster and camber are fundamental aspects of vehicle suspension geometry that significantly impact handling, stability, and tire wear. Understanding these concepts and making the necessary adjustments can enhance your driving experience and ensure the safety and longevity of your vehicle. Regular inspections and proper maintenance are key to maintaining optimal caster and camber settings, allowing you to enjoy a smooth and responsive ride.
