Cast iron is a versatile and durable material widely used in various industries due to its excellent mechanical properties and cost-effectiveness. However, one of the challenges associated with cast iron is its cast iron weldability. Understanding the weldability of cast iron is crucial for engineers and fabricators who need to repair or modify cast iron components. This post delves into the intricacies of cast iron weldability, exploring the types of cast iron, welding techniques, and best practices to ensure successful welding.
Understanding Cast Iron
Cast iron is an alloy of iron that contains more than 2% carbon, along with varying amounts of silicon and other elements. The high carbon content gives cast iron its unique properties, such as excellent compressive strength and wear resistance. However, it also makes cast iron brittle and difficult to weld. There are several types of cast iron, each with its own characteristics and weldability challenges:
- Gray Cast Iron: Contains graphite flakes that give it a gray appearance. It is the most common type of cast iron and is known for its good machinability and vibration-damping properties.
- White Cast Iron: Contains cementite instead of graphite, making it very hard and brittle. It is difficult to weld due to its high carbon content.
- Ductile Cast Iron: Contains spheroidal graphite, which improves its ductility and toughness compared to gray cast iron. It is more weldable than gray cast iron but still requires careful consideration.
- Malleable Cast Iron: Produced by annealing white cast iron, which converts the cementite into graphite nodules. It has good weldability but is more expensive than other types.
Challenges in Cast Iron Weldability
Welding cast iron presents several challenges due to its high carbon content and brittle nature. Some of the key issues include:

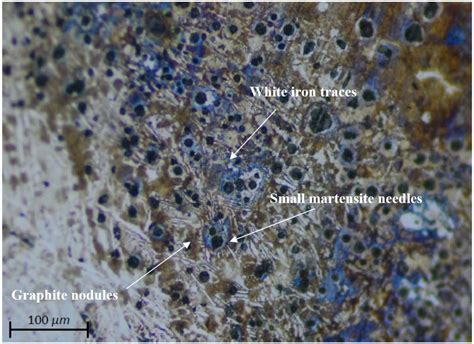

- Cracking: The high carbon content in cast iron can lead to the formation of martensite, a hard and brittle phase, during welding. This can cause cracking in the weld and heat-affected zone (HAZ).
- Porosity: The presence of graphite in cast iron can lead to porosity in the weld, weakening the joint.
- Distortion: Cast iron has a low thermal conductivity, which can result in high residual stresses and distortion during welding.
Welding Techniques for Cast Iron
Several welding techniques can be used to weld cast iron, each with its own advantages and limitations. The choice of technique depends on the type of cast iron, the application, and the required weld quality.
Gas Welding
Gas welding, also known as oxy-fuel welding, is a common method for welding cast iron. It involves heating the cast iron with a flame produced by burning a fuel gas (such as acetylene) with oxygen. The process is relatively simple and inexpensive, making it suitable for small repairs and maintenance work. However, it may not be suitable for high-strength applications due to the potential for porosity and cracking.
Arc Welding
Arc welding techniques, such as shielded metal arc welding (SMAW) and gas metal arc welding (GMAW), can also be used to weld cast iron. These methods involve using an electric arc to melt the base metal and a filler material. Arc welding provides better control over the welding process and can produce stronger welds than gas welding. However, it requires more skill and equipment, and there is still a risk of cracking and porosity.
Brazing
Brazing is a joining process that involves heating the cast iron to a temperature below its melting point and using a filler material with a lower melting point to create a joint. Brazing is particularly suitable for repairing cast iron components that are subject to high stresses or require a strong, leak-proof joint. It is less likely to cause cracking or distortion than welding, but it may not be suitable for all applications due to the lower strength of the brazed joint.
Laser Welding
Laser welding is a advanced technique that uses a high-energy laser beam to melt the base metal and a filler material. It offers several advantages, including high precision, low heat input, and minimal distortion. Laser welding is particularly suitable for welding thin sections of cast iron or for applications that require a high-quality weld. However, it requires specialized equipment and is more expensive than other welding methods.
Best Practices for Welding Cast Iron
To ensure successful welding of cast iron, it is essential to follow best practices that address the unique challenges of cast iron weldability. Some key considerations include:
- Preheat and Post-Weld Heat Treatment: Preheating the cast iron before welding and applying post-weld heat treatment can help reduce residual stresses and prevent cracking. The preheat temperature and soak time depend on the type of cast iron and the thickness of the component.
- Filler Material Selection: Choosing the right filler material is crucial for achieving a strong and durable weld. For gray cast iron, a nickel-based filler material is often recommended due to its ability to form a ductile weld metal. For ductile cast iron, a filler material with a similar composition to the base metal can be used.
- Welding Technique: The welding technique should be selected based on the application and the required weld quality. For example, gas welding may be suitable for small repairs, while arc welding or laser welding may be required for high-strength applications.
- Welding Parameters: Optimizing welding parameters, such as current, voltage, and travel speed, can help minimize porosity, cracking, and distortion. It is essential to follow the manufacturer's recommendations for the specific welding equipment and filler material being used.
🔧 Note: Always wear appropriate personal protective equipment (PPE), including gloves, safety glasses, and a welding helmet, when welding cast iron.
Common Applications of Cast Iron Welding
Cast iron welding is used in various industries, including automotive, machinery, and construction. Some common applications include:
- Engine Blocks and Cylinder Heads: Cast iron is commonly used in engine blocks and cylinder heads due to its excellent wear resistance and ability to dissipate heat. Welding is often required to repair cracks or modify these components.
- Pipes and Fittings: Cast iron pipes and fittings are used in plumbing and drainage systems. Welding is sometimes required to repair leaks or join sections of pipe.
- Machine Bases and Frames: Cast iron is used in machine bases and frames due to its high compressive strength and vibration-damping properties. Welding may be required to repair damage or modify these components.
Troubleshooting Cast Iron Welding Issues
Even with careful preparation and execution, issues can arise during cast iron welding. Some common problems and their potential solutions include:
| Issue | Potential Causes | Solutions |
|---|---|---|
| Cracking | High residual stresses, rapid cooling, or improper filler material | Preheat the cast iron, use a suitable filler material, and optimize welding parameters |
| Porosity | Contamination, moisture, or improper shielding gas | Clean the surface, use dry materials, and ensure proper shielding gas flow |
| Distortion | High heat input or uneven heating | Use a lower heat input, preheat the cast iron, and apply post-weld heat treatment |
🛠️ Note: Always inspect the weld and the heat-affected zone for any signs of cracking, porosity, or distortion. If necessary, perform non-destructive testing (NDT) to ensure the weld's integrity.
Welding cast iron requires a thorough understanding of its unique properties and the challenges associated with cast iron weldability. By following best practices, selecting the appropriate welding technique, and optimizing welding parameters, it is possible to achieve strong and durable welds in cast iron components. Whether repairing engine blocks, pipes, or machine frames, mastering cast iron welding can significantly enhance the lifespan and performance of cast iron parts.
In summary, cast iron weldability is a complex but manageable aspect of working with this versatile material. By understanding the different types of cast iron, the challenges they present, and the best practices for welding, engineers and fabricators can successfully repair and modify cast iron components. The key to successful cast iron welding lies in careful preparation, the right choice of welding technique, and attention to detail throughout the welding process. With the right approach, cast iron welding can be a reliable and effective method for maintaining and enhancing the performance of cast iron components in various industries.
