Cardiac Action Potential Phases

Understanding the intricacies of the heart's electrical activity is crucial for comprehending cardiac health and diagnosing various heart conditions. One of the fundamental concepts in this area is the Cardiac Action Potential Phases. These phases describe the changes in the electrical potential across the cell membrane of cardiac muscle cells, which are essential for the heart's rhythmic contractions. This blog post delves into the details of these phases, their significance, and how they contribute to the overall functioning of the heart.

Table of Contents

What is Cardiac Action Potential?

The cardiac action potential is a rapid and transient change in the electrical potential across the cell membrane of cardiac myocytes. This process is initiated by the depolarization of the cell membrane, which triggers a series of ionic currents that result in the contraction of the heart muscle. The action potential is divided into several distinct phases, each characterized by specific ionic movements and membrane potential changes.

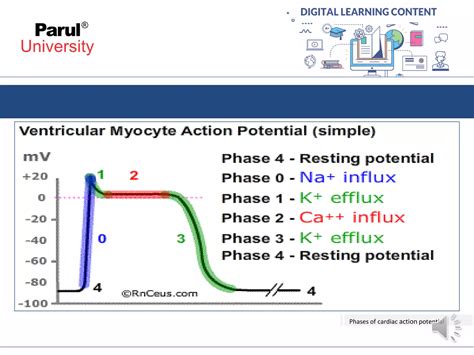

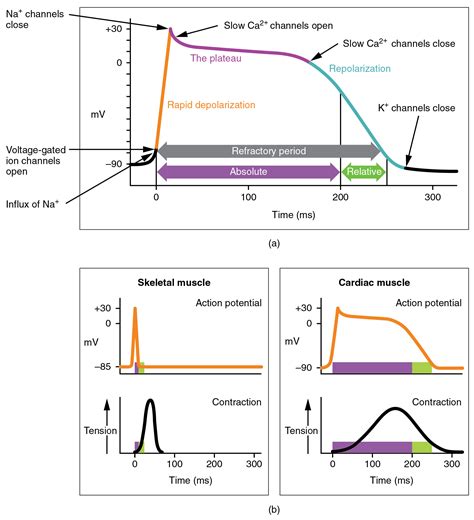

Phases of Cardiac Action Potential

The cardiac action potential is typically divided into five phases, each with unique characteristics and physiological significance. These phases are:

Phase 0: Rapid Depolarization
Phase 1: Early Repolarization
Phase 2: Plateau Phase
Phase 3: Final Repolarization
Phase 4: Resting Membrane Potential

Phase 0: Rapid Depolarization

Phase 0, also known as the rapid depolarization phase, is the initial phase of the cardiac action potential. It is characterized by a rapid influx of sodium ions (Na+) into the cell through voltage-gated sodium channels. This influx causes the membrane potential to quickly rise from its resting state of approximately -90 mV to a peak of about +30 mV. The rapid depolarization is crucial for the propagation of the electrical impulse throughout the heart, ensuring synchronized contractions.

Phase 1: Early Repolarization

Following the rapid depolarization, Phase 1, or early repolarization, begins. During this phase, the membrane potential starts to decrease slightly due to the inactivation of sodium channels and the activation of transient outward potassium currents. This brief repolarization sets the stage for the next phase, the plateau phase.

Phase 2: Plateau Phase

Phase 2, the plateau phase, is a unique feature of cardiac action potentials, particularly in ventricular myocytes. During this phase, the membrane potential remains relatively stable at around 0 mV. This stability is maintained by a balance between the influx of calcium ions (Ca2+) through L-type calcium channels and the efflux of potassium ions (K+) through various potassium channels. The plateau phase is essential for the prolonged contraction of cardiac muscle, allowing the heart to pump blood efficiently.

Phase 3: Final Repolarization

Phase 3, or final repolarization, marks the end of the action potential. During this phase, the membrane potential returns to its resting state. This repolarization is primarily driven by the activation of delayed rectifier potassium currents, which allow potassium ions to leave the cell. The efflux of potassium ions causes the membrane potential to decrease back to its resting state of approximately -90 mV. This phase is crucial for preparing the cardiac myocyte for the next action potential.

Phase 4: Resting Membrane Potential

Phase 4 represents the resting membrane potential, where the cell is at its baseline electrical state. During this phase, the membrane potential is maintained by the activity of various ion channels and pumps, including the sodium-potassium pump and potassium leak channels. The resting membrane potential is essential for the initiation of the next action potential and the overall electrical stability of the cardiac myocyte.

Ionic Currents and Cardiac Action Potential

The Cardiac Action Potential Phases are driven by a complex interplay of ionic currents. Understanding these currents is essential for comprehending the electrical activity of the heart. The key ionic currents involved in the cardiac action potential include:

Sodium Current (INa): Responsible for the rapid depolarization during Phase 0.
Transient Outward Potassium Current (Ito): Contributes to early repolarization during Phase 1.
L-type Calcium Current (ICa,L): Maintains the plateau phase during Phase 2.
Delayed Rectifier Potassium Currents (IKr and IKs): Drive final repolarization during Phase 3.
Inward Rectifier Potassium Current (IK1): Helps maintain the resting membrane potential during Phase 4.

Clinical Significance of Cardiac Action Potential Phases

The Cardiac Action Potential Phases have significant clinical implications. Abnormalities in these phases can lead to various cardiac arrhythmias and other heart conditions. For example:

Long QT Syndrome: Caused by mutations in genes encoding ion channels, leading to prolonged repolarization and increased risk of ventricular arrhythmias.
Brugada Syndrome: Characterized by abnormal Phase 1 and Phase 2, resulting in a unique ECG pattern and increased risk of sudden cardiac death.
Atrial Fibrillation: Often associated with abnormalities in the action potential of atrial myocytes, leading to chaotic electrical activity and irregular heart rhythms.

🔍 Note: Understanding the Cardiac Action Potential Phases is crucial for diagnosing and treating these conditions, as it allows healthcare providers to identify the underlying ionic abnormalities and develop targeted therapies.

Diagnostic Tools for Assessing Cardiac Action Potential

Several diagnostic tools are used to assess the Cardiac Action Potential Phases and identify abnormalities. These tools include:

Electrocardiogram (ECG): Provides a non-invasive way to record the electrical activity of the heart and identify abnormalities in the action potential.
Electrophysiology Study (EPS): Involves the insertion of catheters into the heart to directly measure electrical activity and identify the source of arrhythmias.
Genetic Testing: Used to identify mutations in genes encoding ion channels, which can cause inherited arrhythmias.

Treatment Options for Abnormal Cardiac Action Potential

Treatment options for abnormalities in the Cardiac Action Potential Phases vary depending on the underlying condition. Common treatments include:

Medications: Such as antiarrhythmic drugs, which target specific ion channels to restore normal electrical activity.
Implantable Devices: Such as pacemakers and implantable cardioverter-defibrillators (ICDs), which help regulate heart rhythm and prevent life-threatening arrhythmias.
Catheter Ablation: A procedure that uses radiofrequency energy to destroy abnormal electrical pathways in the heart.

💡 Note: The choice of treatment depends on the specific abnormality in the Cardiac Action Potential Phases and the individual's overall health status.

Future Directions in Cardiac Action Potential Research

Research on the Cardiac Action Potential Phases continues to evolve, with a focus on understanding the molecular mechanisms underlying cardiac arrhythmias and developing new therapeutic strategies. Some of the key areas of research include:

Ion Channel Modulation: Exploring new drugs and compounds that can modulate ion channel activity to restore normal electrical activity.
Genetic Therapies: Developing gene therapies to correct mutations in ion channel genes and prevent inherited arrhythmias.
Computational Modeling: Using advanced computational models to simulate cardiac action potentials and predict the effects of different interventions.

One of the most promising areas of research is the use of induced pluripotent stem cells (iPSCs) to create patient-specific cardiac myocytes. These cells can be used to study the Cardiac Action Potential Phases in vitro and develop personalized treatments for individuals with cardiac arrhythmias.

Conclusion

The Cardiac Action Potential Phases are fundamental to understanding the electrical activity of the heart and diagnosing various cardiac conditions. By comprehending the intricate details of these phases and the ionic currents that drive them, healthcare providers can develop targeted therapies and improve patient outcomes. Ongoing research in this field holds promise for new treatments and a deeper understanding of cardiac health.
