Car Radio Fuse

Understanding the intricacies of your car's electrical system can be daunting, but it's essential for maintaining your vehicle's functionality. One crucial component often overlooked is the car radio fuse. This small but vital part ensures that your car's audio system operates smoothly and safely. In this post, we'll delve into the importance of the car radio fuse, how to locate and replace it, and common issues that might arise.

Table of Contents

Understanding the Car Radio Fuse

The car radio fuse is a protective device designed to safeguard the electrical circuits in your vehicle's audio system. It prevents overheating and potential fires by interrupting the electrical current when it exceeds safe levels. Fuses are typically made of a thin wire that melts and breaks the circuit if the current becomes too high.

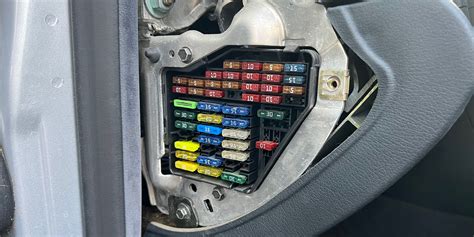

Most modern vehicles have multiple fuses, each protecting different electrical components. The car radio fuse is usually located in the fuse box, which can be found under the hood, in the engine compartment, or inside the vehicle, often near the dashboard or under the steering column.

Locating the Car Radio Fuse

Before you can replace a blown car radio fuse, you need to locate it. Here are the steps to find the fuse box and identify the car radio fuse:

Consult your vehicle's owner manual for the exact location of the fuse box. Common locations include under the hood, in the engine compartment, or inside the vehicle near the dashboard or under the steering column.

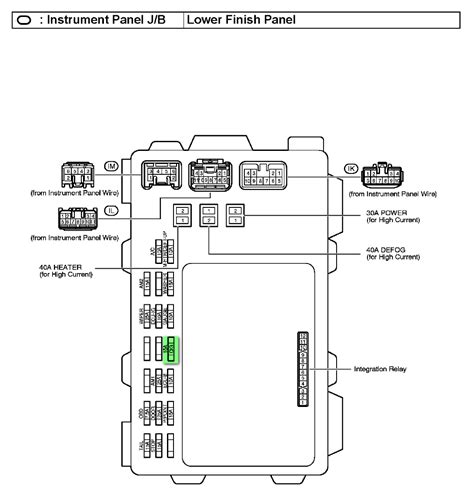

Open the fuse box cover. You should see a diagram or label indicating the purpose of each fuse.
Identify the car radio fuse on the diagram. It is often labeled as "Radio," "Audio," or "AUX."

If you don't have the owner's manual, you can usually find the fuse box diagram on a sticker inside the fuse box cover. The diagram will show the location and purpose of each fuse.

Checking and Replacing the Car Radio Fuse

Once you've located the car radio fuse, you need to check if it's blown and replace it if necessary. Here’s how to do it:

Turn off the ignition and remove the key to ensure safety.
Open the fuse box and locate the car radio fuse using the diagram.
Gently pull out the fuse. You can use a fuse puller tool or tweezers if the fuse is hard to reach.
Inspect the fuse. A blown fuse will have a broken wire or a blackened appearance. If the fuse looks intact, it might not be the cause of the problem.
If the fuse is blown, replace it with a new one of the same amperage. Using a fuse with a different amperage can cause electrical issues.
Insert the new fuse into the slot and ensure it is securely in place.
Close the fuse box cover and test the radio to see if it's working.

🔧 Note: Always use a fuse with the correct amperage rating. Using a higher-rated fuse can cause electrical damage, while a lower-rated fuse may blow frequently.

Common Issues with the Car Radio Fuse

Several issues can cause the car radio fuse to blow repeatedly. Understanding these problems can help you address the root cause and prevent future issues.

Short Circuits: A short circuit occurs when a live wire touches a ground wire or another live wire. This can cause a sudden surge in current, blowing the fuse.
Faulty Wiring: Damaged or corroded wires can cause electrical resistance, leading to overheating and blowing the fuse.
Overloaded Circuits: Connecting too many electrical devices to the same circuit can overload it, causing the fuse to blow.
Defective Radio: A malfunctioning radio unit can draw excessive current, leading to a blown fuse.

If your car radio fuse blows repeatedly, it's essential to diagnose and fix the underlying issue. Ignoring the problem can lead to more significant electrical issues and potential safety hazards.

Troubleshooting Tips

Here are some troubleshooting tips to help you identify and resolve issues with your car radio fuse:

Check for visible signs of damage, such as burnt wires or melted insulation.
Inspect the fuse box for any signs of corrosion or damage.
Test the radio with a different fuse to ensure the fuse is the problem.
If the fuse blows immediately after replacement, there may be a short circuit. Check the wiring for any signs of damage or loose connections.
If the fuse blows after a short period, there may be an overloaded circuit. Disconnect any unnecessary electrical devices and test the radio again.

If you're unsure about diagnosing or fixing the issue, it's best to consult a professional mechanic. They have the tools and expertise to identify and resolve electrical problems safely.

Preventive Maintenance

Regular maintenance can help prevent issues with your car radio fuse and ensure the longevity of your vehicle's electrical system. Here are some preventive maintenance tips:

Inspect the fuse box and wiring regularly for any signs of damage or corrosion.
Keep the fuse box clean and dry to prevent moisture buildup.
Avoid overloading electrical circuits by disconnecting unnecessary devices.
Replace fuses promptly when they blow to prevent further electrical damage.
If you notice any unusual behavior, such as flickering lights or intermittent power loss, address the issue promptly.

By following these preventive maintenance tips, you can minimize the risk of electrical issues and ensure your car's audio system operates smoothly.

Regularly checking and maintaining your car radio fuse is crucial for the overall health of your vehicle's electrical system. By understanding the importance of the fuse, knowing how to locate and replace it, and addressing common issues, you can ensure your car's audio system remains functional and safe.

In summary, the car radio fuse plays a vital role in protecting your vehicle’s audio system from electrical surges and potential fires. Regular inspection and maintenance can help prevent issues and ensure the longevity of your car’s electrical components. If you encounter persistent problems, it’s best to consult a professional mechanic to diagnose and resolve the underlying issues safely.
