Understanding the behavior of capacitors in different configurations is crucial for anyone working with electronic circuits. Two fundamental configurations are Capacitance Series Vs Parallel. Each configuration has unique characteristics that affect the overall capacitance, voltage distribution, and current flow in a circuit. This post will delve into the differences between series and parallel capacitance, their formulas, and practical applications.
Understanding Capacitance
Capacitance is the ability of a capacitor to store electrical energy. It is measured in farads (F) and is determined by the physical characteristics of the capacitor, such as the area of the plates, the distance between them, and the dielectric material used. The basic formula for capacitance is:
C = εA/d
Where:
- C is the capacitance
- ε is the permittivity of the dielectric material
- A is the area of the plates
- d is the distance between the plates
Capacitance in Series
When capacitors are connected in series, the total capacitance is less than the capacitance of any individual capacitor. This is because the effective plate area decreases while the distance between the plates remains the same. The formula for the total capacitance in a series configuration is:
1/Ctotal = 1/C1 + 1/C2 + … + 1/Cn
Where:
- Ctotal is the total capacitance
- C1, C2, …, Cn are the individual capacitances
For example, if you have two capacitors of 10 µF and 20 µF in series, the total capacitance would be:
1/Ctotal = 1⁄10 + 1⁄20 = 3⁄20
Ctotal = 20⁄3 ≈ 6.67 µF

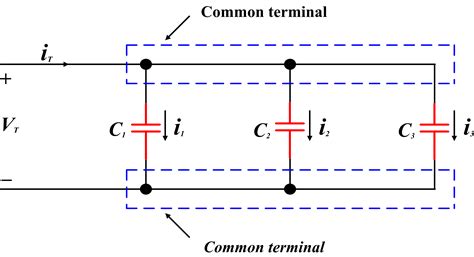

Capacitance in Parallel
When capacitors are connected in parallel, the total capacitance is the sum of the individual capacitances. This is because the effective plate area increases while the distance between the plates remains the same. The formula for the total capacitance in a parallel configuration is:
Ctotal = C1 + C2 + … + Cn
Where:
- Ctotal is the total capacitance
- C1, C2, …, Cn are the individual capacitances
For example, if you have two capacitors of 10 µF and 20 µF in parallel, the total capacitance would be:
Ctotal = 10 + 20 = 30 µF
Voltage Distribution in Series and Parallel Configurations
In a series configuration, the voltage across each capacitor is inversely proportional to its capacitance. This means that the capacitor with the smallest capacitance will have the highest voltage drop. The total voltage across the series combination is the sum of the voltages across each individual capacitor.
In a parallel configuration, the voltage across each capacitor is the same and equal to the applied voltage. This is because all capacitors in parallel experience the same potential difference.
Current Flow in Series and Parallel Configurations
In a series configuration, the current flowing through each capacitor is the same. This is because there is only one path for the current to flow.
In a parallel configuration, the current flowing through each capacitor is inversely proportional to its capacitance. This means that the capacitor with the smallest capacitance will have the highest current flow. The total current is the sum of the currents flowing through each individual capacitor.
Practical Applications of Series and Parallel Capacitance
Understanding Capacitance Series Vs Parallel is essential for designing and troubleshooting electronic circuits. Here are some practical applications:
- Filter Circuits: Capacitors in series and parallel are used in filter circuits to block or pass specific frequencies.
- Power Supply Circuits: Capacitors in parallel are used to smooth out voltage ripples in power supply circuits.
- Timing Circuits: Capacitors in series and parallel are used in timing circuits to control the charging and discharging of capacitors.
- Coupling and Decoupling: Capacitors in series and parallel are used to couple or decouple signals in electronic circuits.
Comparing Series and Parallel Capacitance
To better understand the differences between series and parallel capacitance, let’s compare them side by side:
| Aspect | Series Capacitance | Parallel Capacitance |
|---|---|---|
| Total Capacitance | Less than the smallest individual capacitance | Sum of individual capacitances |
| Voltage Distribution | Inversely proportional to capacitance | Same across all capacitors |
| Current Flow | Same through all capacitors | Inversely proportional to capacitance |
| Applications | Filter circuits, timing circuits | Power supply circuits, coupling and decoupling |
💡 Note: When working with capacitors in series and parallel, always consider the voltage and current ratings of each capacitor to ensure they can handle the circuit's requirements.
Capacitors are essential components in electronic circuits, and understanding their behavior in series and parallel configurations is crucial for designing and troubleshooting circuits. By grasping the concepts of Capacitance Series Vs Parallel, you can effectively use capacitors to control voltage, current, and frequency in your electronic projects.
