In the realm of engineering and construction, accurately calculating the weight of a pipe is crucial for various applications, from structural integrity to transportation logistics. Whether you're working on a plumbing project, an industrial pipeline, or any other infrastructure that involves pipes, understanding how to determine the weight of a pipe is essential. This guide will walk you through the process, providing detailed steps and formulas to ensure precision in your calculations.

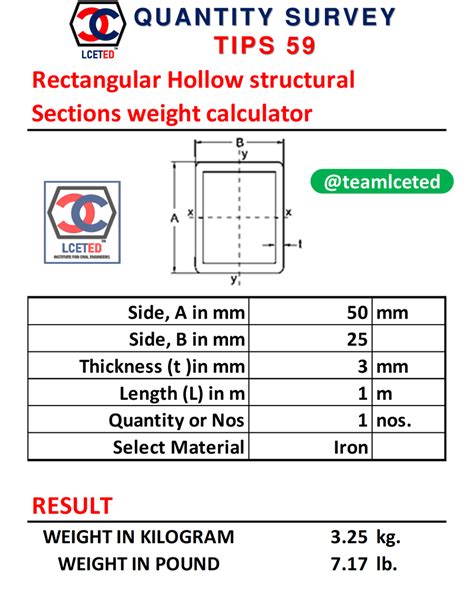

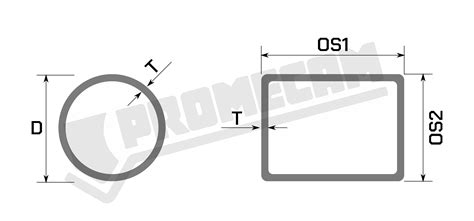

Understanding Pipe Dimensions
Before diving into the calculations, it's important to understand the basic dimensions of a pipe. Pipes are typically characterized by their:
- Outer Diameter (OD): The measurement from one outer edge of the pipe to the opposite outer edge.
- Inner Diameter (ID): The measurement from one inner edge of the pipe to the opposite inner edge.
- Wall Thickness (WT): The difference between the outer diameter and the inner diameter, divided by 2.
These dimensions are critical for calculating the weight of a pipe accurately. The outer diameter and wall thickness are often provided by the manufacturer, while the inner diameter can be derived from these values.
Formulas for Calculating Pipe Weight
The weight of a pipe can be calculated using several formulas, depending on the available dimensions. The most common formula involves the outer diameter, wall thickness, and the length of the pipe. Here’s a step-by-step guide:
Step 1: Gather Necessary Dimensions
Ensure you have the following measurements:
- Outer Diameter (OD)
- Wall Thickness (WT)
- Length of the Pipe (L)
- Density of the Pipe Material (ρ)
Step 2: Calculate the Cross-Sectional Area
The cross-sectional area of the pipe wall can be calculated using the formula:
Area = π * (OD - WT) * WT
Where:
- π is approximately 3.14159
- OD is the outer diameter
- WT is the wall thickness
Step 3: Calculate the Volume of the Pipe
The volume of the pipe can be calculated by multiplying the cross-sectional area by the length of the pipe:
Volume = Area * L
Where:
- L is the length of the pipe
Step 4: Calculate the Weight of the Pipe
The weight of the pipe can be calculated by multiplying the volume by the density of the pipe material:
Weight = Volume * ρ
Where:
- ρ is the density of the pipe material
Example Calculation
Let's go through an example to illustrate the process. Suppose you have a steel pipe with the following specifications:
- Outer Diameter (OD): 10 inches
- Wall Thickness (WT): 0.5 inches
- Length (L): 20 feet (240 inches)
- Density of Steel (ρ): 490 lb/ft³ (0.284 lb/in³)
First, calculate the cross-sectional area:
Area = π * (10 - 0.5) * 0.5 = π * 9.5 * 0.5 ≈ 14.82 square inches
Next, calculate the volume:
Volume = 14.82 * 240 ≈ 3556.8 cubic inches
Finally, calculate the weight:
Weight = 3556.8 * 0.284 ≈ 1010.7 pounds
So, the weight of the pipe is approximately 1010.7 pounds.
📝 Note: Ensure that all measurements are in consistent units. For example, if the density is given in lb/ft³, convert the volume to cubic feet before multiplying.
Alternative Methods for Calculating Pipe Weight
In some cases, you might not have all the necessary dimensions. Here are a few alternative methods for calculating the weight of a pipe:
Using Nominal Pipe Size (NPS) and Schedule
Pipes are often categorized by their Nominal Pipe Size (NPS) and schedule, which indicates the wall thickness. Manufacturers provide standard tables for these dimensions. You can use these tables to find the outer diameter and wall thickness, then apply the formulas mentioned earlier.
Using Weight per Foot
Some manufacturers provide the weight per foot of the pipe. If you know the weight per foot, you can simply multiply it by the length of the pipe to get the total weight:
Total Weight = Weight per Foot * Length
Common Materials and Their Densities
Different materials have different densities, which affect the weight of the pipe. Here are some common pipe materials and their densities:
| Material | Density (lb/ft³) |
|---|---|
| Steel | 490 |
| Cast Iron | 450 |
| Aluminum | 168 |
| Copper | 559 |
| PVC | 83 |
Ensure you use the correct density for the material of your pipe to get an accurate weight calculation.
📝 Note: The densities provided are approximate and can vary based on the specific alloy or composition of the material.
Applications of Pipe Weight Calculation
Accurately calculating the weight of a pipe is essential for various applications, including:
- Structural Engineering: Ensuring the pipe can support its own weight and any additional loads.
- Transportation Logistics: Determining the weight for shipping and handling purposes.
- Cost Estimation: Calculating the material cost for budgeting and procurement.
- Safety and Compliance: Ensuring the pipe meets regulatory requirements for weight and load-bearing capacity.
By understanding how to calculate the weight of a pipe, you can make informed decisions that enhance the safety, efficiency, and cost-effectiveness of your projects.
In the realm of engineering and construction, accurately calculating the weight of a pipe is crucial for various applications, from structural integrity to transportation logistics. Whether you’re working on a plumbing project, an industrial pipeline, or any other infrastructure that involves pipes, understanding how to determine the weight of a pipe is essential. This guide has provided detailed steps and formulas to ensure precision in your calculations, helping you make informed decisions that enhance the safety, efficiency, and cost-effectiveness of your projects.
