Calculate Volume Pipe

Understanding how to calculate the volume of a pipe is crucial for various engineering and industrial applications. Whether you're working in plumbing, civil engineering, or any field that involves fluid dynamics, knowing the volume of a pipe can help you make informed decisions about material requirements, flow rates, and system design. This guide will walk you through the steps to calculate the volume of a pipe, including the formulas and considerations you need to know.

Understanding Pipe Volume

Before diving into the calculations, it’s important to understand what pipe volume entails. The volume of a pipe refers to the amount of space inside the pipe that can hold a substance, such as water, gas, or any other fluid. This volume is determined by the pipe’s length and its cross-sectional area.

Key Terms and Formulas

To calculate the volume of a pipe, you need to be familiar with a few key terms and formulas:

Pipe Diameter (D): The distance across the pipe from one side to the other, measured in a straight line.
Pipe Radius ®: Half of the pipe diameter.
Pipe Length (L): The distance from one end of the pipe to the other.
Cross-Sectional Area (A): The area of the pipe’s circular cross-section.
Volume (V): The amount of space inside the pipe.

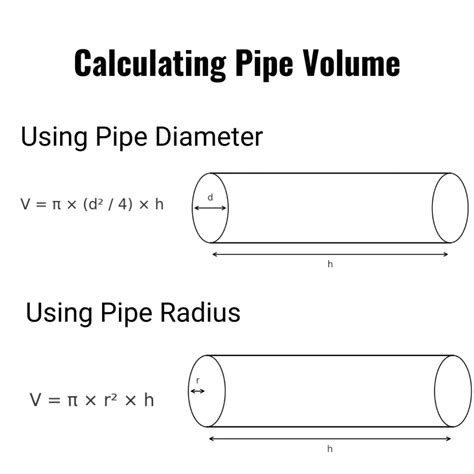

The formula to calculate the volume of a pipe is:

V = πR²L

Where:

π (pi) is approximately 3.14159.
R is the radius of the pipe.
L is the length of the pipe.

Step-by-Step Guide to Calculate Volume Pipe

Follow these steps to calculate the volume of a pipe:

Step 1: Measure the Pipe Diameter

Use a measuring tape or caliper to determine the diameter of the pipe. The diameter is the distance across the pipe from one side to the other.

Step 2: Calculate the Pipe Radius

Divide the diameter by 2 to find the radius. The radius is half the diameter of the pipe.

Step 3: Measure the Pipe Length

Measure the length of the pipe from one end to the other. This can be done using a measuring tape or any other suitable measuring tool.

Step 4: Calculate the Cross-Sectional Area

Use the formula for the area of a circle to calculate the cross-sectional area of the pipe:

A = πR²

Step 5: Calculate the Volume

Multiply the cross-sectional area by the length of the pipe to find the volume:

V = A × L

Example Calculation

Let’s go through an example to illustrate the process. Suppose you have a pipe with a diameter of 10 inches and a length of 50 feet. Here’s how you would calculate the volume:

Step 1: Measure the Pipe Diameter

Diameter (D) = 10 inches

Step 2: Calculate the Pipe Radius

Radius ® = D / 2 = 10 inches / 2 = 5 inches

Step 3: Measure the Pipe Length

Length (L) = 50 feet

Step 4: Calculate the Cross-Sectional Area

Cross-Sectional Area (A) = πR² = 3.14159 × (5 inches)² = 3.14159 × 25 = 78.54 square inches

Step 5: Calculate the Volume

Volume (V) = A × L = 78.54 square inches × 50 feet

Note: Convert feet to inches (1 foot = 12 inches) to match the units:

50 feet = 50 × 12 inches = 600 inches

Volume (V) = 78.54 square inches × 600 inches = 47,124 cubic inches

To convert cubic inches to cubic feet (since 1 cubic foot = 1,728 cubic inches):

Volume (V) = 47,124 cubic inches / 1,728 cubic inches per cubic foot ≈ 27.27 cubic feet

📝 Note: Ensure that all measurements are in the same units before performing calculations. Converting units correctly is crucial for accurate results.

Considerations for Different Pipe Shapes

While the above method applies to cylindrical pipes, there are other pipe shapes that may require different calculations. Here are a few examples:

Rectangular Pipes

For rectangular pipes, the volume can be calculated using the formula:

V = Width × Height × Length

Oval Pipes

For oval pipes, the volume calculation is more complex and typically involves integrating the area of the oval cross-section along the length of the pipe. This often requires more advanced mathematical tools or software.

Applications of Pipe Volume Calculation

Calculating the volume of a pipe has numerous applications across various industries. Some of the most common applications include:

Plumbing: Determining the amount of water or other fluids that can flow through a pipe system.
Civil Engineering: Designing and constructing water supply and drainage systems.
Chemical Engineering: Managing the flow of chemicals through pipelines in industrial processes.
Oil and Gas Industry: Transporting hydrocarbons through pipelines over long distances.
HVAC Systems: Designing and maintaining heating, ventilation, and air conditioning systems.

Common Mistakes to Avoid

When calculating the volume of a pipe, it’s important to avoid common mistakes that can lead to inaccurate results. Here are some pitfalls to watch out for:

Incorrect Measurements: Ensure that all measurements are accurate and taken from the correct points on the pipe.
Unit Mismatches: Make sure all measurements are in the same units before performing calculations.
Ignoring Pipe Thickness: For pipes with significant wall thickness, the internal diameter (ID) should be used instead of the external diameter (OD).
Overlooking Pipe Shape: Different pipe shapes require different formulas for volume calculation.

📝 Note: Double-check your calculations and measurements to ensure accuracy. Small errors can lead to significant discrepancies in the final volume.

Advanced Considerations

For more complex scenarios, additional considerations may be necessary. These include:

Pipe Fittings and Bends: The presence of fittings, bends, and other irregularities can affect the overall volume. These elements may need to be accounted for separately.
Partial Filling: If the pipe is not completely filled with fluid, the volume calculation will need to account for the partial filling level.
Temperature and Pressure: Changes in temperature and pressure can affect the volume of the fluid inside the pipe. These factors may need to be considered for precise calculations.

In such cases, specialized software or more advanced mathematical models may be required to accurately calculate the volume.

Calculating the volume of a pipe is a fundamental skill in many engineering and industrial fields. By understanding the key terms, formulas, and steps involved, you can accurately determine the volume of a pipe and apply this knowledge to various practical applications. Whether you're working with cylindrical, rectangular, or oval pipes, the principles remain the same, with adjustments made for the specific shape and dimensions of the pipe.

From plumbing to civil engineering, and from chemical processes to oil and gas transportation, the ability to calculate the volume of a pipe is invaluable. By following the steps outlined in this guide and avoiding common mistakes, you can ensure accurate and reliable results in your calculations.
