Calculate Voltage Drop

Understanding how to calculate voltage drop is crucial for anyone working with electrical systems. Whether you're an electrician, an engineer, or a hobbyist, knowing how to determine voltage drop ensures that your circuits function efficiently and safely. This guide will walk you through the basics of voltage drop, its importance, and how to calculate it accurately.

Table of Contents

What is Voltage Drop?

Voltage drop refers to the decrease in electrical potential along the path of a current flowing in an electrical circuit. This phenomenon occurs due to the resistance of the conductors and other components in the circuit. Understanding voltage drop is essential for designing and maintaining electrical systems, as it affects the performance and efficiency of the circuit.

Why is Calculating Voltage Drop Important?

Calculating voltage drop is important for several reasons:

Efficiency: Ensures that electrical devices receive the correct voltage, preventing underperformance.
Safety: Helps in identifying potential hazards, such as overheating, which can cause fires or equipment damage.
Cost-Effectiveness: Proper voltage drop calculations can optimize the use of materials, reducing costs.
Compliance: Meets regulatory standards and guidelines for electrical installations.

Factors Affecting Voltage Drop

Several factors influence voltage drop in an electrical circuit:

Conductor Material: Different materials have varying resistivities. Copper and aluminum are commonly used due to their low resistivity.
Conductor Size: The cross-sectional area of the conductor affects its resistance. Larger conductors have lower resistance.
Length of Conductor: Longer conductors have higher resistance, leading to greater voltage drop.
Current Flow: Higher current flow results in a greater voltage drop.

How to Calculate Voltage Drop

To calculate voltage drop, you need to know the resistance of the conductor and the current flowing through it. The formula for voltage drop (Vd) is:

Vd = I * R

Where:

I is the current in amperes (A).
R is the resistance in ohms (Ω).

Resistance ® can be calculated using the formula:

R = ρ * (L / A)

Where:

ρ is the resistivity of the conductor material (Ω·m).
L is the length of the conductor (m).
A is the cross-sectional area of the conductor (m²).

Combining these formulas, the voltage drop can be expressed as:

Vd = I * ρ * (L / A)

Step-by-Step Guide to Calculate Voltage Drop

Follow these steps to calculate voltage drop in your electrical circuit:

Determine the Current (I): Measure or calculate the current flowing through the conductor.
Identify the Conductor Material: Find the resistivity (ρ) of the conductor material. For example, the resistivity of copper is approximately 1.68 × 10^-8 Ω·m.
Measure the Conductor Length (L): Determine the length of the conductor in meters.
Calculate the Cross-Sectional Area (A): Measure the diameter of the conductor and calculate the cross-sectional area using the formula A = π * (d/2)², where d is the diameter.
Calculate the Resistance ®: Use the formula R = ρ * (L / A) to find the resistance.
Calculate the Voltage Drop (Vd): Use the formula Vd = I * R to determine the voltage drop.

💡 Note: Always use accurate measurements and reliable data for resistivity to ensure precise calculations.

Example Calculation

Let’s go through an example to illustrate the process of calculating voltage drop.

Suppose you have a copper wire with the following specifications:

Current (I): 10 A
Length (L): 50 m
Diameter (d): 2 mm
Resistivity (ρ) of copper: 1.68 × 10^-8 Ω·m

First, calculate the cross-sectional area (A):

A = π * (d/2)² = π * (0.001 m)² ≈ 3.14 × 10^-6 m²

Next, calculate the resistance ®:

R = ρ * (L / A) = 1.68 × 10^-8 Ω·m * (50 m / 3.14 × 10^-6 m²) ≈ 0.269 Ω

Finally, calculate the voltage drop (Vd):

Vd = I * R = 10 A * 0.269 Ω ≈ 2.69 V

So, the voltage drop in this example is approximately 2.69 volts.

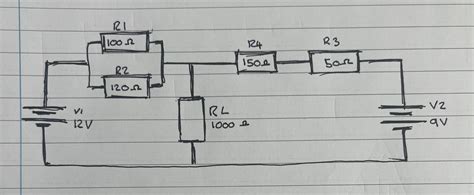

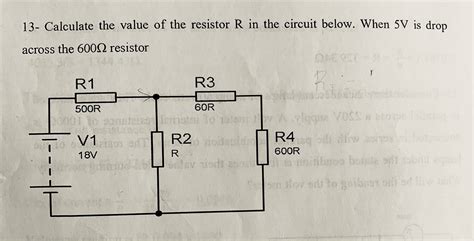

Voltage Drop in Series and Parallel Circuits

Voltage drop calculations can vary depending on whether the circuit is in series or parallel.

Series Circuits

In a series circuit, the current is the same through all components, and the total voltage drop is the sum of the voltage drops across each component. The formula for total voltage drop (Vd_total) in a series circuit is:

Vd_total = Vd1 + Vd2 + … + Vdn

Where Vd1, Vd2, …, Vdn are the voltage drops across each component.

Parallel Circuits

In a parallel circuit, the voltage drop across each branch is the same, but the current through each branch can differ. The total current (I_total) is the sum of the currents through each branch. The formula for total current in a parallel circuit is:

I_total = I1 + I2 + … + In

Where I1, I2, …, In are the currents through each branch.

Voltage Drop in Practical Applications

Understanding how to calculate voltage drop is essential in various practical applications, including:

Electrical Wiring: Ensuring that electrical wires can handle the required current without excessive voltage drop.
Power Distribution: Designing efficient power distribution systems to minimize losses.
Automotive Electronics: Ensuring that electrical components in vehicles receive the correct voltage.
Renewable Energy Systems: Optimizing the performance of solar panels, wind turbines, and other renewable energy sources.

Common Mistakes to Avoid

When calculating voltage drop, it’s important to avoid common mistakes that can lead to inaccurate results:

Incorrect Measurements: Ensure that all measurements, such as length and diameter, are accurate.
Incorrect Resistivity Values: Use reliable sources for resistivity values of conductor materials.
Ignoring Temperature Effects: Resistivity can change with temperature, so consider temperature corrections if necessary.
Overlooking Parallel Paths: In complex circuits, account for all parallel paths and their respective currents.

Table of Resistivity Values for Common Conductors

Material	Resistivity (Ω·m)
Copper	1.68 × 10^-8
Aluminum	2.65 × 10^-8
Gold	2.21 × 10^-8
Silver	1.59 × 10^-8
Iron	9.71 × 10^-8

💡 Note: Resistivity values can vary slightly based on purity and temperature. Always refer to reliable sources for the most accurate data.

Conclusion

Understanding how to calculate voltage drop is a fundamental skill for anyone working with electrical systems. By following the steps outlined in this guide, you can ensure that your circuits are designed and maintained efficiently and safely. Whether you’re dealing with simple series circuits or complex parallel systems, accurate voltage drop calculations are essential for optimal performance. Always use reliable data and precise measurements to achieve the best results.
