Cable Gauge Amps

Understanding the relationship between cable gauge and amps is crucial for anyone working with electrical systems. Whether you're a professional electrician, a DIY enthusiast, or simply someone interested in home wiring, knowing how to select the right cable gauge for your electrical needs can prevent hazards and ensure efficient power distribution.

Table of Contents

What is Cable Gauge?

Cable gauge refers to the diameter of the wire within an electrical cable. The gauge is typically measured using the American Wire Gauge (AWG) system, where a lower gauge number indicates a thicker wire. For example, a 10 AWG wire is thicker than a 12 AWG wire. The thickness of the wire is directly related to its ability to carry electrical current, which is measured in amps.

Understanding Amps

Amps, short for amperes, measure the flow of electrical current through a conductor. The amount of current a wire can safely carry depends on several factors, including the wire’s gauge, the material it’s made from (usually copper or aluminum), and the insulation type. Understanding the relationship between cable gauge and amps is essential for ensuring that your electrical system operates safely and efficiently.

Cable Gauge and Amps: The Relationship

The relationship between cable gauge and amps is straightforward: thicker wires can carry more current. This is because thicker wires have less resistance, allowing electrons to flow more freely. Here’s a breakdown of how different cable gauges correspond to the amps they can safely carry:

Cable Gauge (AWG)	Maximum Amps
14	15
12	20
10	30
8	40
6	55
4	70
2	95
1	110
1/0	130
2/0	155
3/0	185
4/0	215

These values are general guidelines and can vary based on factors such as the length of the wire, the ambient temperature, and the type of insulation. Always consult local electrical codes and standards for specific requirements.

Factors Affecting Cable Gauge and Amps

Several factors can influence the relationship between cable gauge and amps. Understanding these factors can help you make more informed decisions when selecting the right cable for your needs.

Wire Material: Copper is the most common material for electrical wires due to its excellent conductivity. Aluminum is also used, especially in larger gauges, but it has higher resistance and is more prone to corrosion.
Insulation Type: The type of insulation around the wire can affect its current-carrying capacity. Common insulation materials include PVC, Teflon, and rubber, each with different temperature ratings and resistance properties.
Ambient Temperature: Higher ambient temperatures can reduce the current-carrying capacity of a wire. This is because heat increases the resistance of the wire, making it harder for electrons to flow.
Wire Length: Longer wires have higher resistance, which can reduce their current-carrying capacity. This is why it's important to consider the length of the wire when selecting the appropriate gauge.

Selecting the Right Cable Gauge for Your Needs

Choosing the right cable gauge for your electrical needs involves considering several factors. Here are some steps to help you make the right choice:

Determine the Required Amps: Calculate the total amps required for the devices or appliances you plan to power. This will help you determine the minimum cable gauge needed.
Consider the Wire Length: Longer wires require a thicker gauge to compensate for increased resistance. Use the appropriate voltage drop calculations to ensure the wire can safely carry the required current over the desired distance.
Check Local Codes and Standards: Always consult local electrical codes and standards to ensure compliance with safety regulations. These codes often specify the minimum cable gauge required for different applications.
Factor in Future Needs: If you anticipate adding more devices or appliances in the future, consider using a thicker gauge wire to accommodate increased current demands.

💡 Note: Always err on the side of caution when selecting cable gauge. Using a thicker wire than necessary is better than risking overheating or fire hazards.

Common Applications and Recommended Cable Gauges

Different applications require different cable gauges to ensure safe and efficient operation. Here are some common applications and the recommended cable gauges for each:

Home Wiring: For standard home wiring, 12 AWG or 14 AWG cables are commonly used. These gauges are suitable for most household appliances and lighting fixtures.
Extension Cords: Extension cords typically use 16 AWG or 18 AWG cables for lighter loads, such as lamps and small appliances. For heavier loads, such as power tools, 14 AWG or 12 AWG cables are recommended.

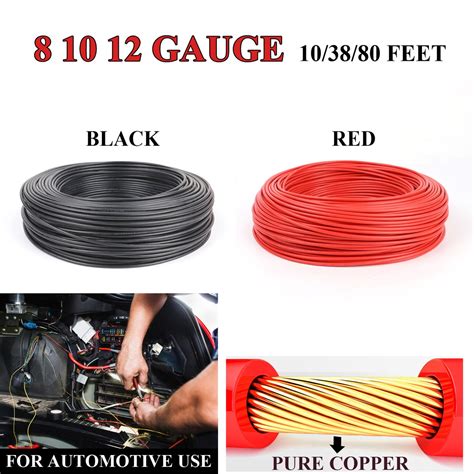

Automotive Wiring: Automotive wiring often uses 10 AWG or 12 AWG cables for battery connections and high-current applications. Smaller gauges, such as 14 AWG or 16 AWG, are used for lower-current applications like lighting and accessories.
Industrial Applications: Industrial settings often require thicker gauges, such as 6 AWG or 4 AWG, to handle high-current loads and long wire runs. Always consult with a professional electrician to determine the appropriate cable gauge for your specific needs.

Safety Considerations

When working with electrical cables, safety should always be your top priority. Here are some important safety considerations to keep in mind:

Avoid Overloading: Never exceed the maximum amps rating for a cable gauge. Overloading can cause overheating, which can lead to fires and other hazards.
Proper Installation: Ensure that cables are properly installed and secured to prevent damage and reduce the risk of short circuits.
Use Appropriate Connections: Always use connectors and terminals that are compatible with the cable gauge and current requirements.
Regular Inspections: Regularly inspect cables for signs of wear, damage, or overheating. Replace any damaged cables immediately to prevent potential hazards.

🔧 Note: If you're unsure about any aspect of electrical wiring, always consult with a licensed electrician. Safety should never be compromised.

Understanding the relationship between cable gauge and amps is essential for ensuring the safety and efficiency of your electrical systems. By selecting the right cable gauge for your needs, you can prevent hazards, reduce energy losses, and ensure reliable power distribution. Always consult local codes and standards, and when in doubt, seek the advice of a professional electrician.
