Embarking on a Butterfly Knife 3D Print project can be an exciting journey for both beginners and experienced 3D printing enthusiasts. This intricate and visually appealing design not only tests your 3D printing skills but also results in a unique and functional piece. Whether you're looking to create a decorative item or a functional tool, understanding the process and best practices for a successful Butterfly Knife 3D Print is essential.
Understanding the Butterfly Knife Design

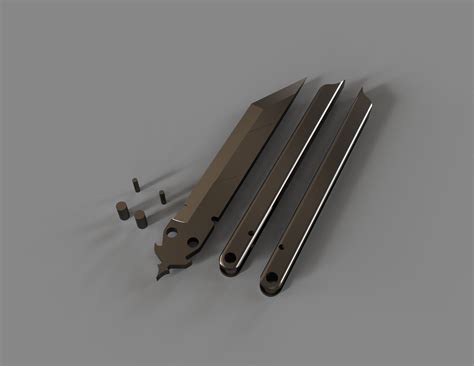

The butterfly knife, also known as a Balisong, is a folding pocket knife with two handles that counter-rotate around the tang of the blade via a pivot mechanism. The design is not only aesthetically pleasing but also requires precise engineering to ensure functionality and safety. When planning a Butterfly Knife 3D Print, it’s crucial to understand the key components:
- Blade: The cutting edge of the knife.
- Handles: The two parts that rotate around the blade.
- Pivot Mechanism: The system that allows the handles to rotate smoothly.
- Latch: The mechanism that locks the blade in place when open or closed.
Choosing the Right 3D Printing Materials
Selecting the appropriate material for your Butterfly Knife 3D Print is vital for both durability and functionality. Common materials include:
- PLA (Polylactic Acid): Easy to print and biodegradable, but not suitable for functional knives due to its brittleness.
- ABS (Acrylonitrile Butadiene Styrene): Stronger and more durable than PLA, making it a better choice for functional knives.
- PETG (Polyethylene Terephthalate Glycol): Offers a good balance of strength, durability, and flexibility, making it ideal for Butterfly Knife 3D Print projects.
- Nylon: Known for its high strength and flexibility, but can be more challenging to print.
Designing Your Butterfly Knife
Before you start your Butterfly Knife 3D Print, you need a well-designed 3D model. You can either create your own design using CAD software or download a pre-existing model from online repositories. Key considerations for your design include:
- Dimensions: Ensure the dimensions are accurate and suitable for your intended use.
- Tolerance: Pay attention to the tolerances between moving parts to ensure smooth operation.
- Detailing: Add any desired detailing, such as engravings or textures, to enhance the aesthetic appeal.
Preparing for the 3D Print
Once you have your design ready, the next step is to prepare it for printing. This involves slicing the model using slicing software. Popular options include:
- Cura: User-friendly and highly customizable.
- PrusaSlicer: Known for its advanced features and precision.
- Simplify3D: Offers a wide range of settings for fine-tuning your print.
During the slicing process, pay attention to the following settings:
- Layer Height: A lower layer height will result in a smoother finish but will take longer to print.
- Infill: Choose an appropriate infill pattern and density to balance strength and print time.
- Support Structures: Add supports where necessary to prevent warping and ensure successful printing.
- Print Speed: Adjust the print speed to balance quality and time. Slower speeds generally result in better quality.
Printing the Butterfly Knife
With your model sliced and ready, you can begin the Butterfly Knife 3D Print process. Here are the steps to follow:
- Load the Filament: Ensure you have the correct filament loaded into your 3D printer.
- Level the Bed: A properly leveled bed is crucial for a successful print.
- Start the Print: Initiate the print and monitor the first few layers to ensure everything is printing correctly.
- Monitor the Print: Keep an eye on the print to catch any issues early, such as warping or filament jams.
- Post-Processing: Once the print is complete, remove any support structures and clean up the model.
Assembling the Butterfly Knife
After completing the Butterfly Knife 3D Print, the next step is assembly. This involves:
- Aligning the Handles: Ensure the handles are properly aligned with the pivot mechanism.
- Inserting the Blade: Carefully insert the blade into the handles, ensuring it rotates smoothly.
- Attaching the Latch: Secure the latch mechanism to keep the blade in place when open or closed.
- Testing the Mechanism: Test the knife to ensure all parts are functioning correctly and smoothly.
Important Considerations for Safety
When working with a Butterfly Knife 3D Print, safety should always be a top priority. Here are some key considerations:
- Sharp Edges: Be cautious of sharp edges on the blade and handles.
- Proper Handling: Always handle the knife with care, especially when the blade is exposed.
- Regular Maintenance: Inspect the knife regularly for any signs of wear or damage.
Common Issues and Troubleshooting
Even with careful planning, issues can arise during a Butterfly Knife 3D Print. Here are some common problems and their solutions:
| Issue | Solution |
|---|---|
| Warping | Ensure the bed is properly leveled and consider using a heated bed or adhesive to keep the print in place. |
| Layer Shifting | Check for loose belts or misaligned axes and ensure the printer is on a stable surface. |
| Stringing | Adjust the retraction settings in your slicing software to minimize stringing. |
| Poor Layer Adhesion | Increase the print temperature and ensure the bed is clean and properly leveled. |
🛠️ Note: Always refer to your 3D printer's manual for specific troubleshooting tips and settings.
Enhancing the Aesthetics
Once your Butterfly Knife 3D Print is complete and functional, you can enhance its aesthetics with various techniques:
- Painting: Use acrylic paints to add color and detail to your knife.

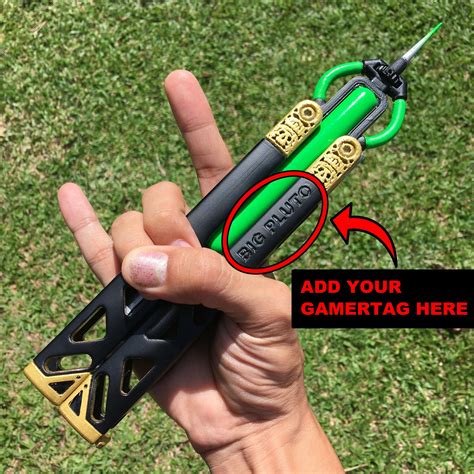

- Engraving: Add personalized engravings or patterns using a laser engraver or manual tools.
- Finishing: Apply a clear coat or wax to protect the finish and give it a polished look.
Your Butterfly Knife 3D Print project can be a rewarding experience, resulting in a unique and functional piece. By following the steps outlined above and paying attention to detail, you can create a high-quality butterfly knife that showcases your 3D printing skills. Whether you're a hobbyist or a professional, this project offers a challenging and satisfying endeavor.
In wrapping up, the journey of a Butterfly Knife 3D Print involves careful planning, precise execution, and a keen eye for detail. From selecting the right materials to assembling the final product, each step plays a crucial role in the success of your project. By understanding the design, preparing your model, and following best practices for printing and assembly, you can create a functional and aesthetically pleasing butterfly knife. The process not only enhances your 3D printing skills but also results in a unique and personalized item that you can be proud of.
